Mining Core Exploration Drilling Rig, Coal drilling rig
- 60 Set / Sets per Month
- shenzhen shanghai guangzhou
- T/T
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Other, Core Drilling Rig, Rotary Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Hunan, China | Brand Name: | FLYDISC | Model Number: | ZL-700,ZL-1700,ZL-2800 Mining Exploration Drilling Rig |
Usage: | Coal | Voltage: | 220v | Power(W): | 37kw |
Dimension(L*W*H): | 2400*1020*1765 | Weight: | 1720kg | Certification: | CE/ MA/ ISO9001:2008 |
Warranty: | 6 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

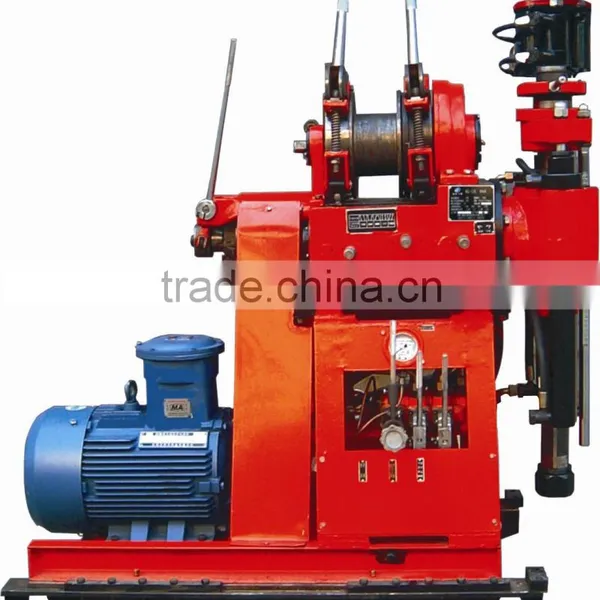

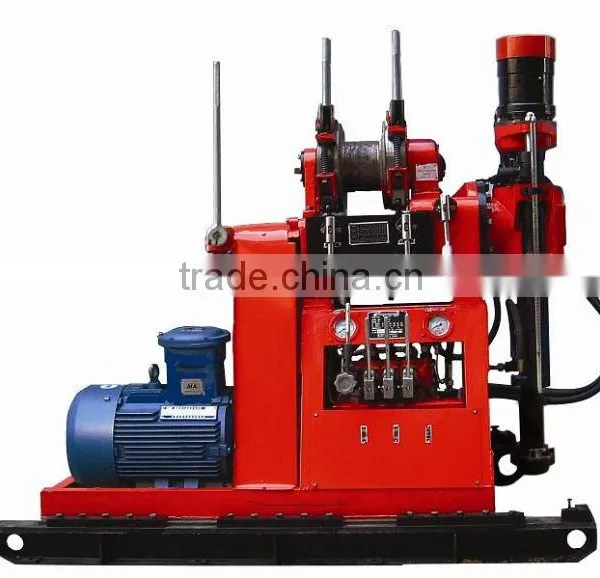

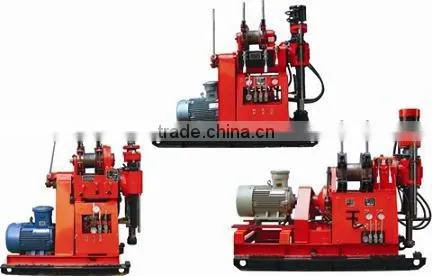

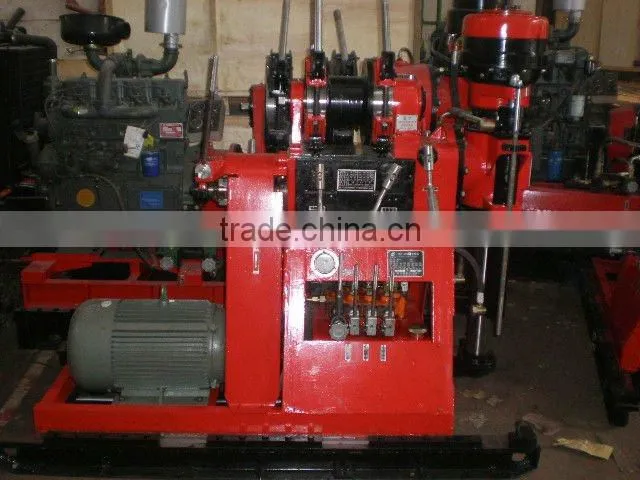

Mining Exploration Drilling Rig (ZL-700,ZL-1700,ZL-2800)
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Historical view:
1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.
Features of Mining Exploration Drilling Rig:
1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.
Technological Data of Mining Exploration Drilling Rig
ZL-700 Drilling Rig for Coal Mining | |
Type | ZL-700 |
Drilling depth(m) | 150~180 |
Drilling rod diameter(mm) | 42~50 |
Drilling hole diameter(mm) | 65~200 |
Head angle range | 360° |
Cylinder stroke (mm) | 300 |
Spindle speed(r/min) | 117 215 479 879 |
spindle hole diameter (mm) | 54 |
Spindle output torque (N.M) | 700 |
Spindle stroke (mm) | 370 |
Spindle driving force max. (KN) | 23 |
Spindle lifting power max. (KN) | 31 |
Lifting speed (m/s) | 0.36 0.7 1.49 2.9 |
Single rope lifting power (KN) | 10 |
Steel wire rope diameter (mm) | 11 |
Mode of chuck | handle chuck |
Weight (power unit excepted)(kg) | 550 |
(L*W*H)(mm) | 1450×650×1400 |
G.A.E Electromotor | YBK2 160M-4(11KW) |
Application of Mining Exploration Drilling Rig:
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
Production
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
