HGY-300 Mining Drilling Equipment Drilling Rig

HGY-300 Mining Drilling Equipment Drilling Rig photo-1

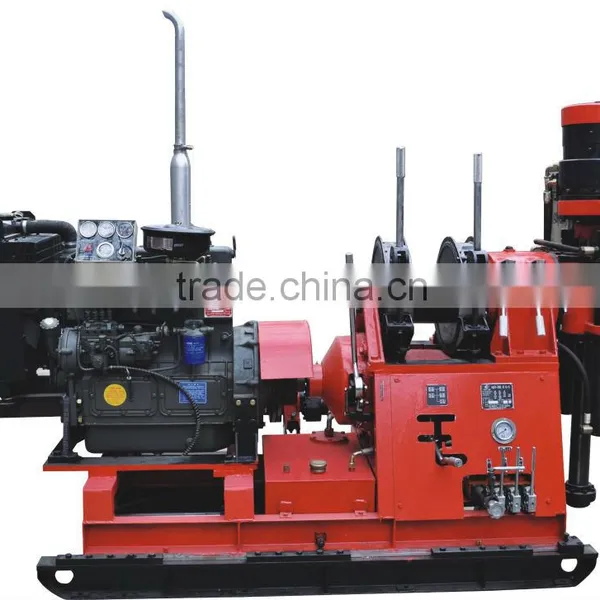

HGY-300 Mining Drilling Equipment Drilling Rig photo-2

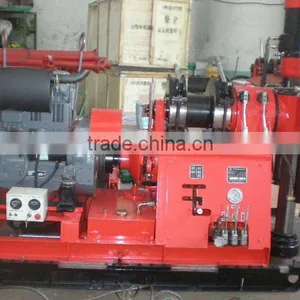

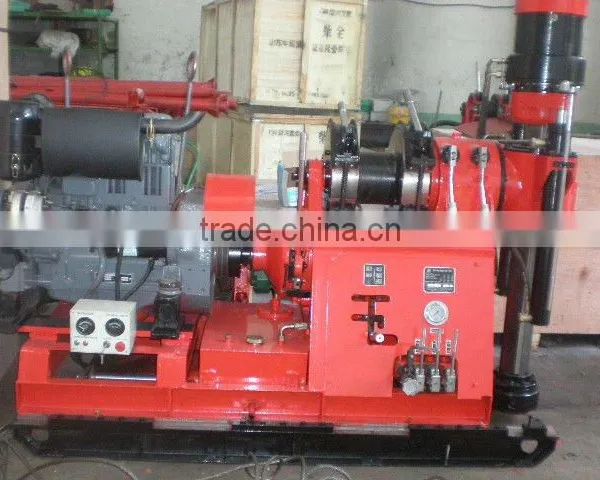

HGY-300 Mining Drilling Equipment Drilling Rig photo-3
HGY-300 Mining Drilling Equipment Drilling Rig photo-4
HGY-300 Mining Drilling Equipment Drilling Rig photo-5
HGY-300 Mining Drilling Equipment Drilling Rig photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen shanghai guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Core Drilling Rig, Drilling Rig
Power Type Diesel
Place of Origin Hunan, China
Brand Name FLYDISC
Model Number HGY-300
Usage Coal
Voltage 220v
Power(W) 26.5kw
Dimension(L*W*H) 2000*900*1600
Weight 1200kg
Certification ce/ISO9001:2008
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

mining drilling equipment Drilling Rig
1,drill depth 300m
2,Full-hydraulic chuck
3,Widely used in exploration



Product Description



mining drilling equipment Drilling Rig(HGY-300)

This Mining Exploration Drilling Rig is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.



Features of the mining drilling equipment Drilling Rig:

1) Wide range of suitable rotary speed to meet various needs.

2) Common auto parts, such as clutch, transmission case and shifting structure.



Technological Data of mining drilling equipment drill rig

     Model

Mining Exploration Drilling Rig(HGY-300)

Drilling depth( m)

300

Drilling rod diameter.(mm)

Φ50

 Head angle range

0~360

Movable cylinder stroke (mm)

400

Spindle speed( r/min)

  Positive rotation rate:34 67 115 189 238 156 307 531 868 1094

Reverse rotation rate: 38 173

Spindle hole diameter( mm)

Φ65/Φ95

Spindle output torque max(N.M)

3100

Spindle stroke(mm)

530

Lifting power max( KN)

60

Driving force max(KN)

40

Lifting speed( m/s)

0.30 0.59 1.01 1.66 2.09

Lifting capacity(single) max(KN)

30

Steel wire rope diameter (mm)

13

Mode of chuck

Full-hydraulic chuck or ball-type chuck

 Weight(power unit excepted)(Kg)

 1200

Overall dimensions(mm)

2000*900*1600

Diesel engine model

495D( 26.5KW)

 Electromotor model

Y180L-4( 22KW)

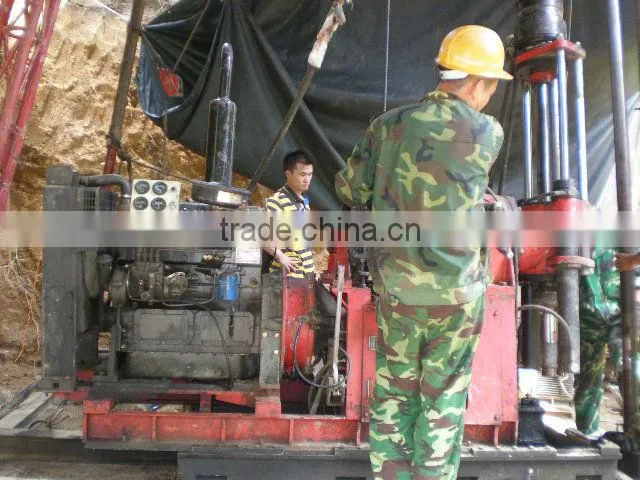

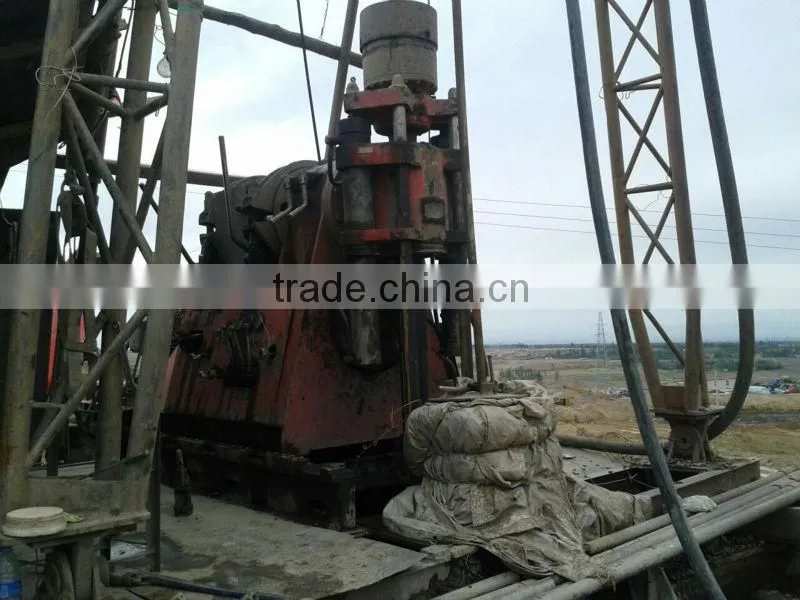

HGY-300 mining drilling equipment Drilling Rig





 HGY-300 mining drilling equipment Drilling RigHGY-300 mining drilling equipment Drilling Rig



HGY-300 mining drilling equipment Drilling Rig



HGY-300 mining drilling equipment Drilling Rig



HGY-300 mining drilling equipment Drilling Rig

Production

Production

HGY-300 mining drilling equipment Drilling Rig





Packaging & Shipping

HGY-300 mining drilling equipment Drilling Rig





Matching Drill Tools



For core drilling, you also need drill tools as flow:



HGY-300 mining drilling equipment Drilling Rig

HGY-300 mining drilling equipment Drilling RigHGY-300 mining drilling equipment Drilling Rig





Company Information

HGY-300 mining drilling equipment Drilling Rig

Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.



HGY-300 mining drilling equipment Drilling RigThe rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.

HGY-300 mining drilling equipment Drilling Rig







how to install

How to install this rig? How to operate this rig?

Don't worry,  buy our products, we will give you professional guidance.



We have produced drilling equipments for more than 50 years.

We are a Professional manufacturer.

If this rig is right for you,don't  hesitate to contact us immediately.

If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you  and  recommended right drilling rig for you.



Don't hesitate, email to us now. You will get unexpected results !
