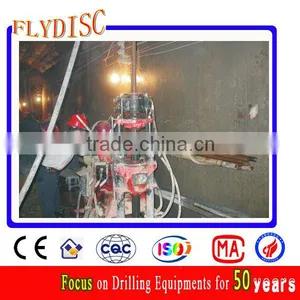

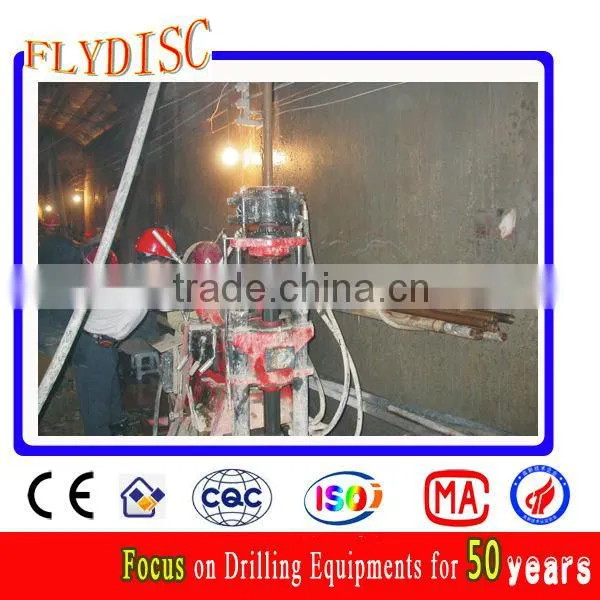

Mineral Exploration Drilling Rig HGY-1000

Specifications

Mineral Exploration Drilling Rig
drill depth:1000m
drill dia.:75-150mm,NQ,HQ
used for taking core sample in mining
driil rig

 HGY-1000 Mineral Exploration Drilling Rig



Brief introduction:

1.32 years professional manufacture

2. Certificate: ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Features of HGY-1000 Mineral Exploration Drilling Rig:

1) Compact in structure and light in weight.

2) High reliability, good performance and durability

3) Common auto parts, such as clutch and declutch structure, transmission case and shifting structure.

4) Easy operation and high efficiency with synchronizer for shifting while the rig is running.

5) Suitable to wide range of rotation inner dia.Φ95mm

6) Be attached to the tower.



Drilling Ability of HGY-1000 Mineral Exploration Drilling Rig:

Drilling depth: 1000m

Drill hole diameter: 75mm (46~250mm)



Technological Data of HGY-1000 Mineral Exploration Drilling Rig:

Model	HGY-1000 Exploration Drilling Rig
Drilling depth( m)	1000
Spindle speed( r/min)	Positive rotation rate: 51 93 160 246 350 149 268 463 710 1011 Reverse rotation rate: 57 164
Spindle stroke(mm)	600
Lifting power max( KN)	80
Driving force max(KN)	60
Spindle output torque max(N.M)	5055
Spindle hole diameter( mm)	Φ95
Lifting speed( m/s)	0.44 0.80 1.38 2.12 3.02
Lifting capacity(single) max(KN)	35
Diameter & Length of drum(m)	Φ15*100
Movable cylinder stroke (mm)	400(+-10)
Max distance from hole (mm)	250
Gear oil pump model	CB-F32C-FL
Nominal displacement( ml/r)	32
Nominal pressure( MPa)	16
Oil pump nominal rotation velocity(r/min)	1800
Electromotor model	YB200L-4
Power( kw)	30
Diesel engine model	K4100ZD
Power( kw)	36
Speed( r/min)	1800
Weight(power unit excepted)(Kg)	1720
Overall dimensions(mm)	2400*1020*1765



Applications HGY-1000 Mineral Exploration Drilling Rig

1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction

2. Coal mining exploration, Ore exploration

3. Small hole diameter water well drilling

4. Geothermal pipe-installing for heat pump

5. Small-diameter hole foundation piling drilling;
