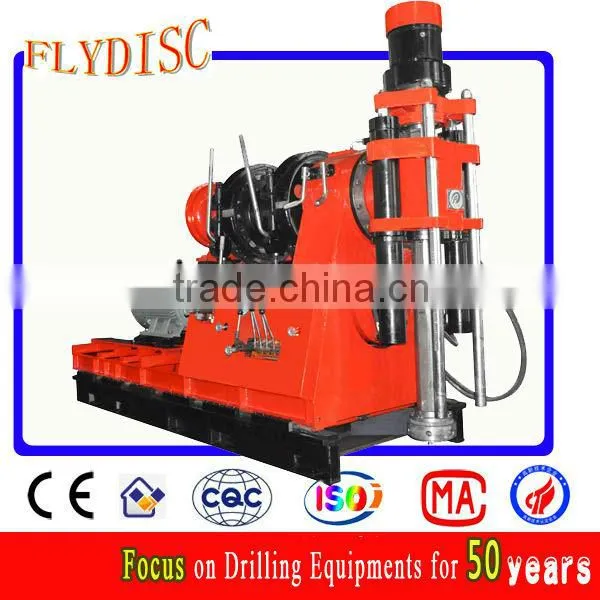

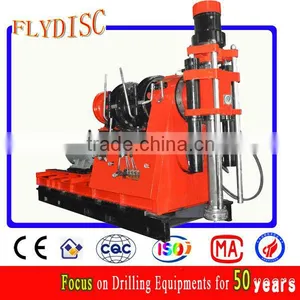

Help Center2000m Wire-line Core Drilling Rig Machine for Mineral Exploration
Related Products
-
HGY-2000 Mineral Exploration Drilling Rig for Deep Hole DrillingUS$ 1 - 2MOQ: 1 Set -
Mineral Exploration Drilling Rig for Taking Core Sample HGY-1000US$ 1 - 2MOQ: 1 Set
-
100m Drilling Rig for Mineral ExplorationNegotiableMOQ: 1 Set
-
HGY-200 Mineral Exploration Drilling RigNegotiableMOQ: 1 Set
-
Mining Exploration Drilling Rig 1500mUS$ 1 - 2MOQ: 1 Set
Specifications
1)Rang of rotation speed is wide and reasonable2)The lowest speed is 49r/min, so the torque is over than 10KN. M,
Features:
1) Rang of rotation speed is wide and reasonable
2) The lowest speed is 49r/min,so the torque is over than 10KN.M,it’s easy to remove the drillnig accessories and deal with the accident
3)The cluth adopts hydraulic operation
4)The transmission case adopts automobile gearbox with high quality
5)The transfer case adopts synchroniser structure.
6)With good stability,guarantee machining precision.
Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Model |
HGY-2000 Drilling Rig |
Drilling depth(m) |
2000 |
Maximum speed spindle(r/min) |
1143 |
Spindle speed(r/min) |
Positive rotation rate:(speed is1480r/min)51,73,111,123,157,195,265,290,395,421,530,626,852,1143 Reverse rotation rate:58,124 |
Spindle stroke(mm) |
900 |
Spindle lifting power max.(KN) |
200 |
Spindle driving force max.(KN) |
150 |
Spindle output torque max.(N.M) |
(Power is75kw)9767N.m |
Spindle hole diameter(mm) |
Φ118 |
Lifting speed(m/s) |
0.44, 0.6, 1.05, 1.66, 2.48, 3.37, 4.52 |
Lifting capacity(single)max.(KN) |
100 |
Steel wire rope diameter & lenth(mm) |
Φ22×120 |
Movable cylinder stroke(mm) |
600±10 |
Oil pump type |
2CB-FE-31-5/31-5EF-L11-3L |
Oil pump nominal displacement(ml/r) |
50 |
Oil pump nominal pressure(Mpa) |
20 |
Oil pump nominal rotative velocity(r/min) |
1800 |
Electric motor type |
Y280S-4 |
Electric motor power(kw) |
75 |
Electric motor speed(r/min) |
1480 |
Diesel engine type |
4BT3.9-C125 |
Diesel engine power(kw) |
93 |
Diesel engine speed(r/min) |
2200 |
Weight(power unit excepted(kg)) |
5000 |
Overall size(L*W*H) (mm) |
3700*1270*2500 |
Drill tools for wire-line exploration
Q:How to choose drilling rig?
Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
