Specifications
Boring Drilling MachineDrill 1500m depth, 75mm diameter
Tower together with machine
Used for Mineral Exploring drilling rig

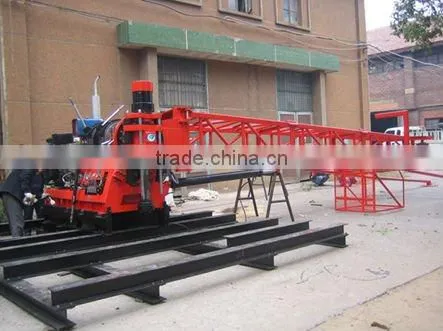

Boring Drilling Machine HGY-1500T
Company introduction of Boring Drilling Machine HGY-1500T :
1. 32 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
Drilling Ability of Boring Drilling Machine HGY-1500T :
Drilling depth: 1500m
Drill hole diameter: 75mm(46~250mm)
Features of Boring Drilling Machine HGY-1500T :
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Technological Data of Boring Drilling Machine HGY-1500T
Model |
HGY-1500T Water Well Drilling Rig |
Drilling depth( m) |
1500~1200 |
Rod diameter( mm) |
Φ42~Φ50 |
Spindle speed( r/min) |
Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
7150 |
Spindle hole diameter( mm) |
Φ95 |
Cable diameter(mm) |
17.5 |
Drum circumferential velocity( 9 layers) |
130 |
Lifting speed( m/s) |
0.51 0.81 1.37 2.06 2.92 3.91 |
Lifting capacity(single) max(KN) |
40 |
Movable cylinder stroke (mm) |
400 |
Gear oil pump model |
2CB-FA32/10-FL |
Nominal displacement( ml/r) |
40 |
Nominal pressure( MPa) |
14 |
Electromotor model |
Y225S-4 or Y225M-4 |
Power( kw) |
37 or 45 |
Speed( r/min) |
1480 |
Diesel engine model |
R4105ZD1 |
Power( kw) |
56 |
Speed( r/min) |
2800 |
Diesel engine weght(Kg) |
385 |
Overall dimensions(mm) |
2460*1150*1888 |
Weight(power unit excepted)(Kg) |
4100 |
Head angle range |
0~90 |
Tower load(t) |
10 |
Tower height(m) |
9.5 |
Tower pedestal(m) |
4*4.5 |
Application of Boring Drilling Machine HGY-1500T :
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
