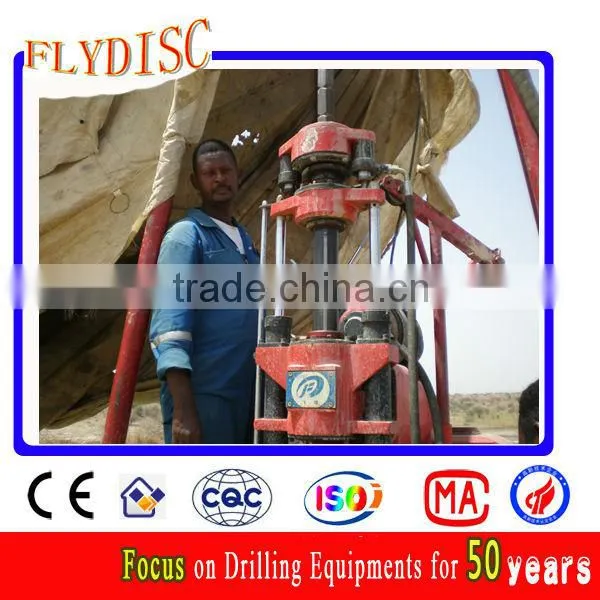

Core Drilling Machine for Core Drilling Machine for Geology Survey HGY-1000
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of Core Drilling Machine for Geology Survey HGY-1000
1) Compact in structure and light in weight.
2) High reliability, good performance and durability
3) Common auto parts, such as clutch and declutch structure, transmission case and shifting structure.
4) Easy operation and high efficiency with synchronizer for shifting while the rig is running.
5) Suitable to wide range of rotation inner dia.Φ95mm
6) Be attached to the tower.
Drilling Ability of Core Drilling Machine for Geology Survey HGY-1000
Drilling depth: 1000m
Drill hole diameter: 75mm (46~250mm)
Technological Data of Core Drilling Machine for Geology Survey HGY-1000
Model |
core sample drilling HGY-1000 |
Drilling depth( m) |
1000 |
Spindle speed( r/min) |
Positive rotation rate: 51 93 160 246 350 149 268 463 710 1011 Reverse rotation rate: 57 164 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
5055 |
Spindle hole diameter( mm) |
Φ95 |
Lifting speed( m/s) |
0.44 0.80 1.38 2.12 3.02 |
Lifting capacity(single) max(KN) |
35 |
Diameter & Length of drum(m) |
Φ15*100 |
Movable cylinder stroke (mm) |
400(+-10) |
Max distance from hole (mm) |
250 |
Gear oil pump model |
CB-F32C-FL |
Nominal displacement( ml/r) |
32 |
Nominal pressure( MPa) |
16 |
Oil pump nominal rotation velocity(r/min) |
1800 |
Electromotor model |
YB200L-4 |
Power( kw) |
30 |
Diesel engine model |
K4100ZD |
Power( kw) |
36 |
Speed( r/min) |
1800 |
Weight(power unit excepted)(Kg) |
1720 |
Overall dimensions(mm) |
2400*1020*1765 |
Applications Core Drilling Machine for Geology Survey HGY-1000
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
