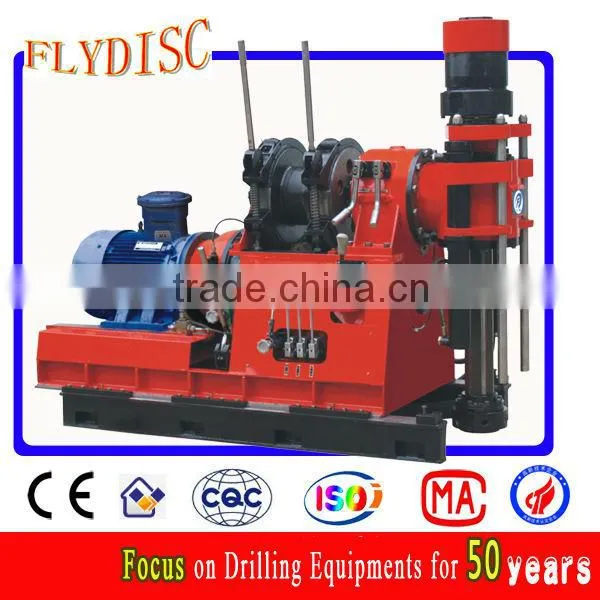

HGY-1000 Geological exploration drilling equipment
Brief introduction of HGY-1000 Geological exploration drilling equipment :
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of HGY-1000 Geological exploration drilling equipment:
1) Compact in structure and light in weight.
2) High reliability, good performance and durability
3) Common auto parts, such as clutch and declutch structure, transmission case and shifting structure.
4) Easy operation and high efficiency with synchronizer for shifting while the rig is running.
5) Suitable to wide range of rotation inner dia.Φ95mm
6) Be attached to the tower.
Use of HGY-1000 Geological exploration drilling equipment :
for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model |
HGY-1000 Diamond Core Drilling Rig |
Drilling depth( m) |
1000 |
Spindle speed( r/min) |
Positive rotation rate: 51 93 160 246 350 149 268 463 710 1011 Reverse rotation rate: 57 164 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
5055 |
Spindle hole diameter( mm) |
Φ95 |
Lifting speed( m/s) |
0.44 0.80 1.38 2.12 3.02 |
Lifting capacity(single) max(KN) |
35 |
Diameter & Length of drum(m) |
Φ15*100 |
Movable cylinder stroke (mm) |
400(+-10) |
Max distance from hole (mm) |
250 |
Gear oil pump model |
CB-F32C-FL |
Nominal displacement( ml/r) |
32 |
Nominal pressure( MPa) |
16 |
Oil pump nominal rotation velocity(r/min) |
1800 |
Electromotor model |
YB200L-4 |
Power( kw) |
30 |
Diesel engine model |
K4100ZD |
Power( kw) |
36 |
Speed( r/min) |
1800 |
Weight(power unit excepted)(Kg) |
1720 |
Overall dimensions(mm) |
2400*1020*1765 |
Production
For mining exploration drilling, you also need drill tools as flow:
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
