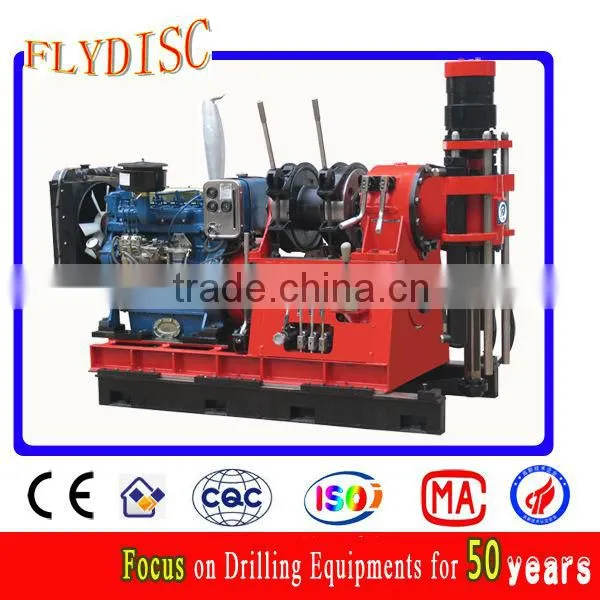

HGY-650 Mine Drilling Rig

HGY-650 Mine Drilling Rig photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, Other Watering & Irrigation
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen shanghai guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Core Drilling Rig, Other Watering & Irrigation
Power Type Diesel
Place of Origin Hunan, China
Brand Name FLYDISC
Model Number HGY-650
Usage Coal
Voltage 220v
Power(W) 36kw
Dimension(L*W*H) 2400*1020*1700
Weight 1550kg
Certification CE/ISO9001:2008
Warranty 6 months
After-sales Service Provided Overseas service center available

Specifications

Mine Drilling Rig
1,drilling depth:650m
2,Hydraulic chuck drilling rig
3,Safe and reliable operations
4, Attached to tower

Drilling Rig: HGY-650



Features of Drilling Rig: HGY-650:

1) Compact in structure and light in weight.

2) High reliability, good performance and durability.

3) Common auto parts, such as clutch, transmission case and shifting structure.

4) Safe and reliable operations with synchronizer for shifting while the rig is running.

5) Be attached to the tower.



 Technological Data of Drilling Rig: HGY-650

     Model

HGY-650 Drilling Rig

Drilling depth( m)

650

Spindle speed( r/min)

  Positive rotation rate: 65 117 201 309 440 187 338 582 894 1273

Reverse rotation rate: 72 207

Spindle stroke(mm)

600

Lifting power max( KN)

80

Driving force max(KN)

60

Spindle output torque max(N.M)

3435

Spindle hole diameter( mm)

Φ65/Φ95

Lifting speed( m/s)

0.43 0.78 1.35 2.08 2.95

Lifting capacity(single) max(KN)

33

Diameter & Length of drum(m)

Φ15*90

Movable cylinder stroke (mm)

400(+-10)

Max distance from hole (mm)

250

Gear oil pump model

CB-F32C-FL

Nominal displacement( ml/r)

32

Nominal pressure( MPa)

16

Oil pump nominal rotation velocity(r/min)

1800

 Electromotor model

YB200L-4

 ElectromotorPower( kw)

30

Diesel engine model

K410ZD

Power( kw)

36

 Speed( r/min)

1800

 Weight(power unit excepted)(Kg)

 1550

Overall dimensions(mm)

2400*1020*1700

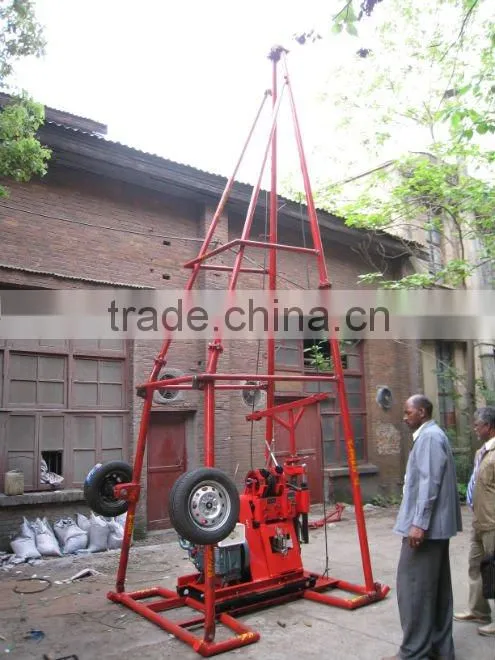

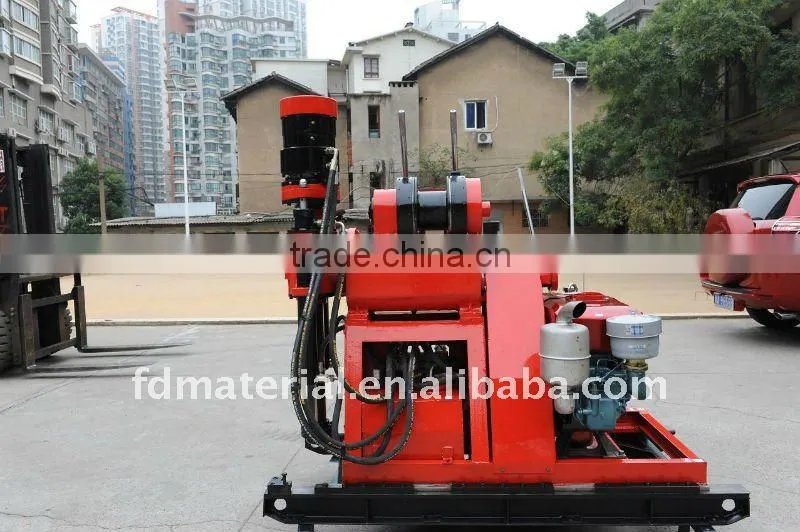

 HGY-650 Mine Drilling Rig

HGY-650 Mine Drilling RigHGY-650 Mine Drilling Rig
