Specifications
geological core drill rigDrill depth: 300m
Drilling rig dia: OD36~250mm
for mineral exploring, and take ro

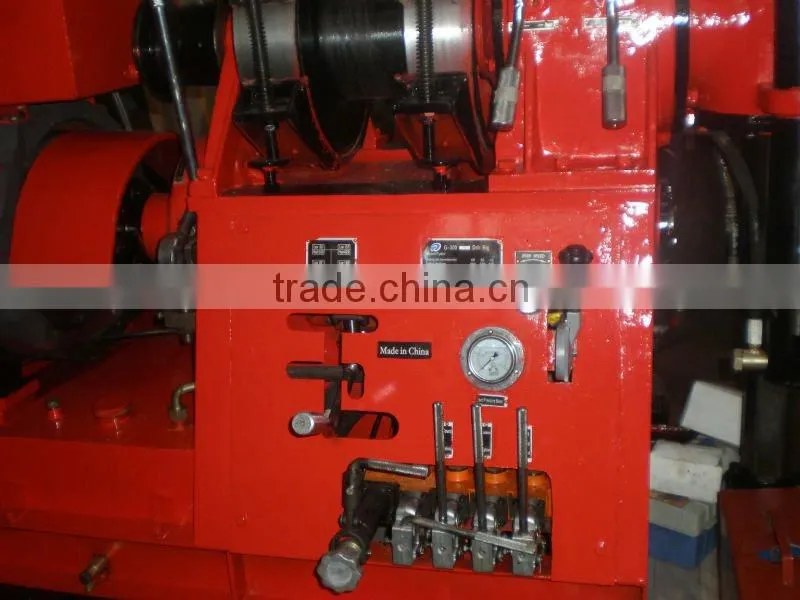

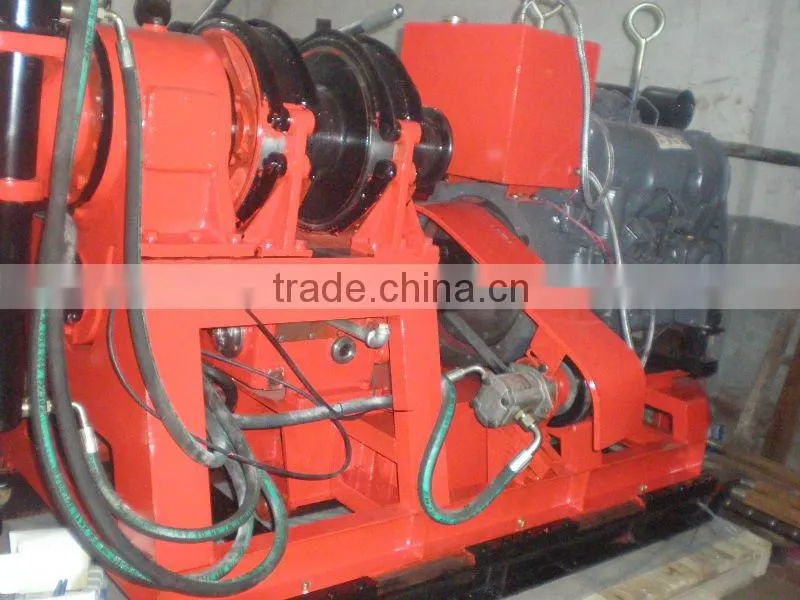

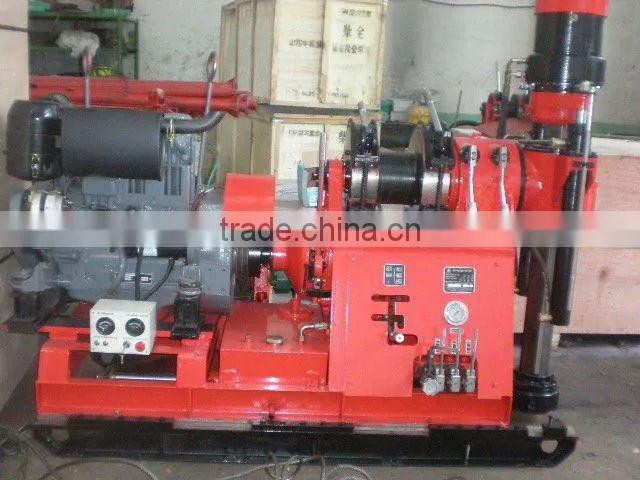

hot sale cheap geological core drill rig
Company introduction of hot sale cheap geological core drill rig :
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
core drilling rigs for hot sale cheap geological core drill rig :
Drilling depth: 300m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 375m, 472m with 75mm hole diameter
hot sale cheap geological core drill rig Applications:
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
Features of hot sale cheap geological core drill rig
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
| Technological Data of hot sale cheap geological core drill rig | |
| Type | HGY-300 |
| Drilling depth(m) | 300 |
| Drilling rod diameter(mm) | 50 |
| Head angle range | 0~360° |
| Cylinder stroke (mm) | 400 |
| Spindle speed(r/min) | Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate:38 173 |
| spindle hole diameter (mm) | 65/96 |
| Spindle output torque (N.M) | 3100 |
| Spindle stroke (mm) | 530 |
| Spindle driving force max. (KN) | 40 |
| Spindle lifting power max. (KN) | 60 |
| Lifting speed (m/s) | 0.30 0.59 1.01 1.66 2.09 |
| Single rope lifting power (KN) | 30 |
| Steel wire rope diameter (mm) | 13 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 1200 |
| (L*W*H)(mm) | 2000×900×1600 |
| Diesel engine | 495D(26.5KW) |
| Electromotor | Y180L-4(22KW) |

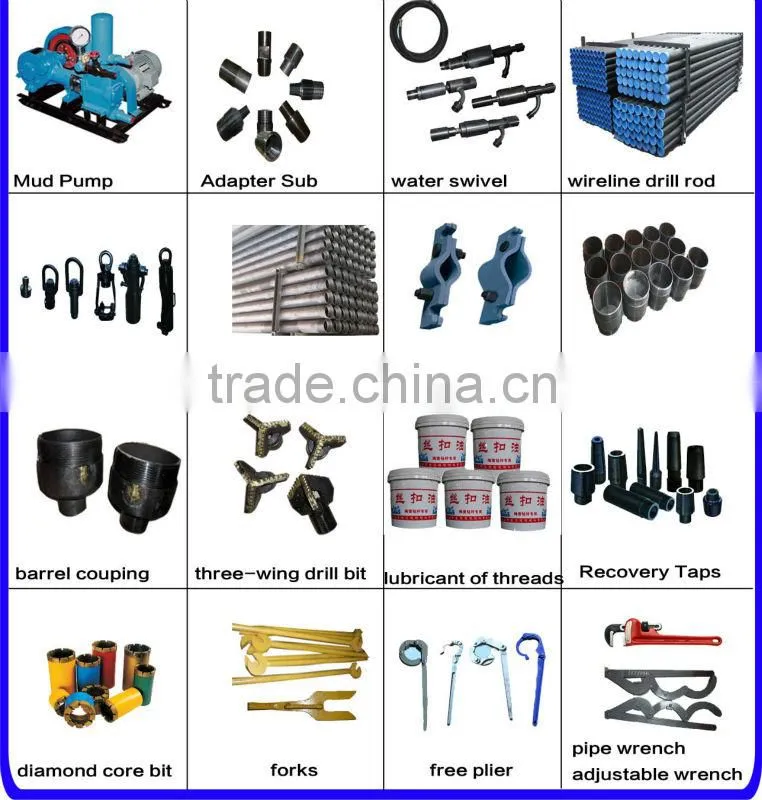

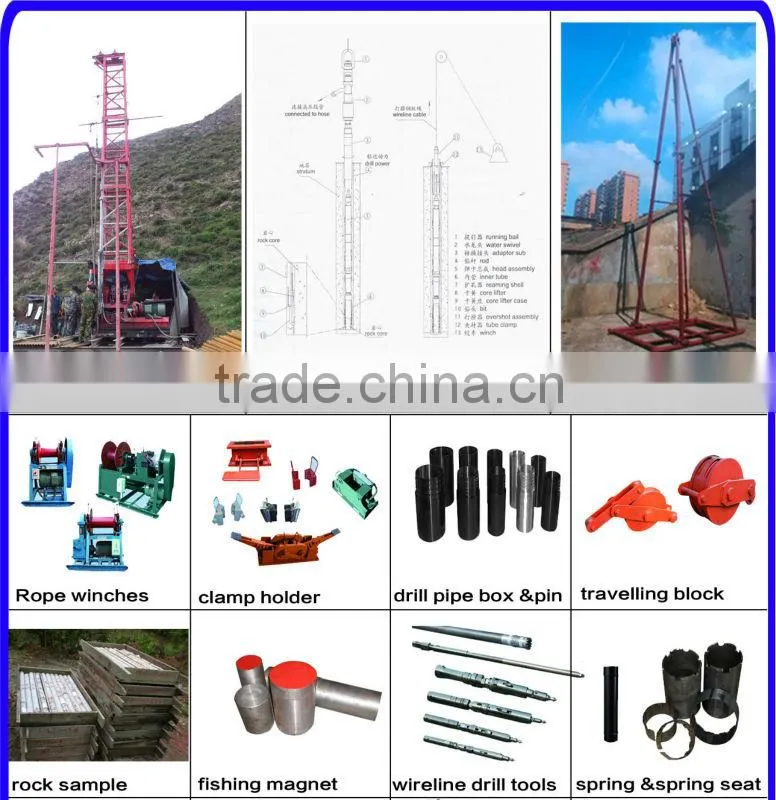

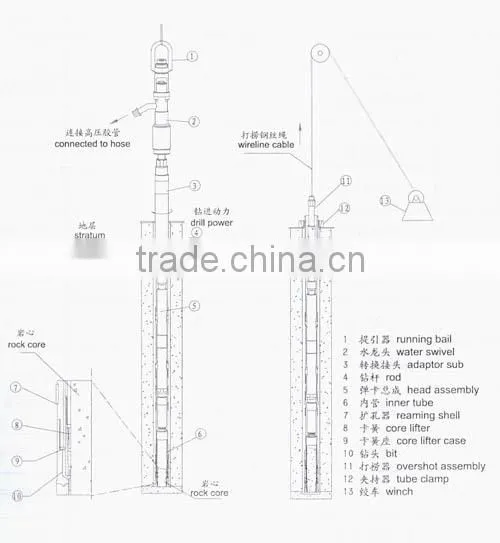

Drill tools for exploration wireline
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
| |||
| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
|
|
|
|
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
