Specifications
200m depth soil testing drilling rig1,Two patents
2,Hydraulic chuck or ball chuck
3,Angle range 0-360
4,Convenient to dril
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
| |||
| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |

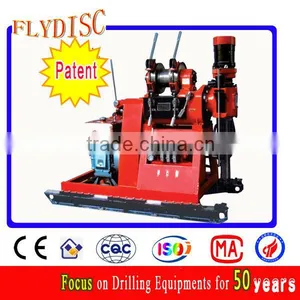

200m depth soil test drilling rig for SPT test
Brief introduction of HGY-200 soil test drilling rig SPT
1.50 years professional manufacture
2. Certificate: ISO9001:2008, Ce
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Two patents for 200m depth soil testing drilling rig SPT
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of 200m depth soil test drilling rig SPT
Drilling depth: 100m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter
Features of 200m depth soil testi drilling rig SPT
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of 200m depth soil test drilling rig SPT
Model |
Drilling Rig(HGY-200) |
Drilling depth( m) |
200 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
360 |
Spindle speed( r/min) |
Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
2140 |
Spindle stroke(mm) |
500 |
Lifting power max( KN) |
50 |
Driving force max(KN) |
37 |
Lifting speed( m/s) |
0.6 2.3 3.4 |
Lifting capacity(single) max(KN) |
20 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
750 |
Overall dimensions(mm) |
1860*800*1400 |
Diesel engine model |
Zs1110 ( 14.7KW) |
Electromotor model |
Y160L-4 ( 15KW) |
Use of HGY-200 soil test drilling rig SPT for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
The drill tools for exploration
|
|
|
|
