HGY-200 civil engineering drilling equipment
Brief introduction of HGY-200 civil engineering drilling equipment
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Two patents for HGY-200 civil engineering drilling equipment
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of HGY-200 civil engineering drilling equipment
Drilling depth: 100m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter
Features of HGY-200 civil engineering drilling equipment
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of HGY-200 civil engineering drilling equipment
Model |
Drilling Rig(HGY-200) |
Drilling depth( m) |
200 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
360 |
Spindle speed( r/min) |
Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
2140 |
Spindle stroke(mm) |
500 |
Lifting power max( KN) |
50 |
Driving force max(KN) |
37 |
Lifting speed( m/s) |
0.6 2.3 3.4 |
Lifting capacity(single) max(KN) |
20 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
750 |
Overall dimensions(mm) |
1860*800*1400 |
Diesel engine model |
Zs1110 ( 14.7KW) |
Electromotor model |
Y160L-4 ( 15KW)
|

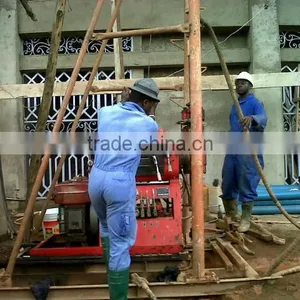

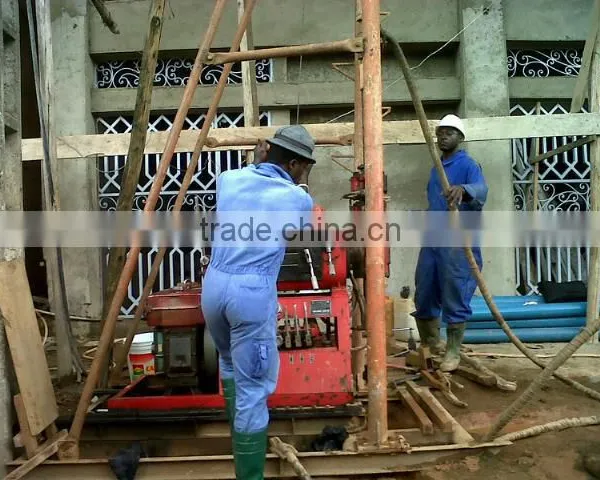

Use of HGY-200 soil testing drilling rig SPT for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
