Specifications
1,Drilling Rig(HGY-300)2,Full-hydraulic chuck
3,Widely used in exploration
4,Drilling rod diameter 50
5,Common auto parts

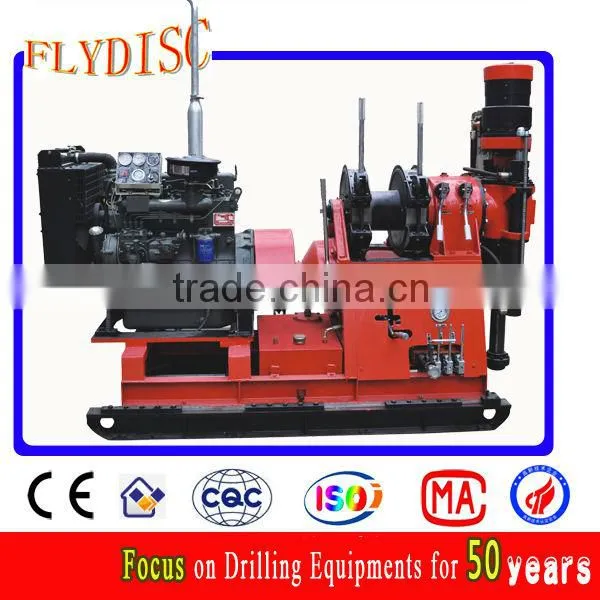

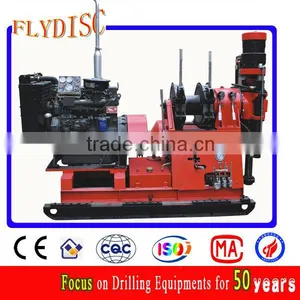

Drilling Rig(HGY-300)
This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Features of Drilling Rig(HGY-300):
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of Drilling Rigs:
Model |
Drilling Rig(HGY-300) |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360 |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate: 38 173 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
3100 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.30 0.59 1.01 1.66 2.09 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
13 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2000*900*1600 |
Diesel engine model |
395K2( 19.8KW) |
Electromotor model |
Y180L-4( 22KW)
|
