HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig

HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-1
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-2
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-3
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-4
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-5
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig thumbnail-6
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-1

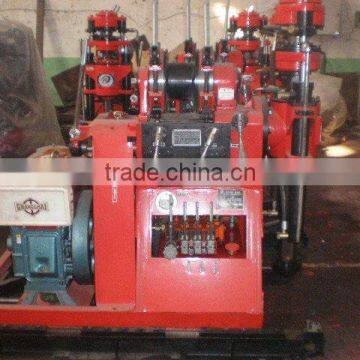

HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-2

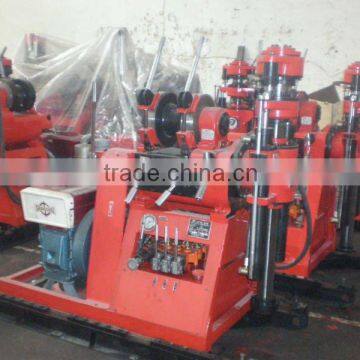

HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-3

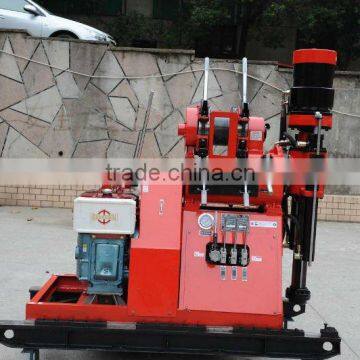

HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-4

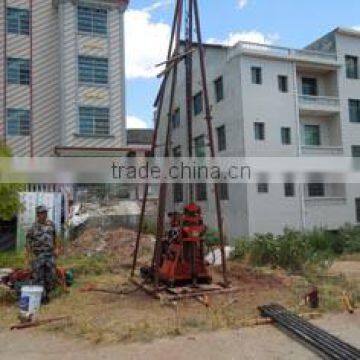

HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-5
HGY-200 Rotary Core Drilling Rig, Diamond Core Drilling Rig photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rotary Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Hunan Flydisc New Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Rotary Drilling Rig, small, spindle, mini, deep, HGY-200, 200m
Power Type Diesel
Place of Origin Hunan, China
Brand Name FLYDISC
Model Number HGY-200
Usage Ore
Voltage 220v
Power(W) 14.7kw
Dimension(L*W*H) 1860*800*1400
Weight 750kg
Certification ce/ISO9001:2008
Warranty 6 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description



diamond core drilling rig (HGY-200)

This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.

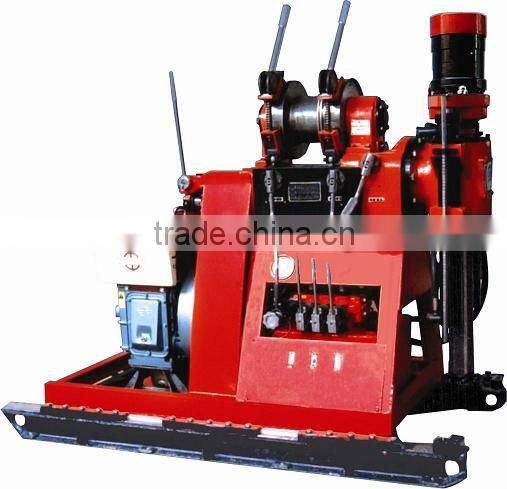

 HGY-200 Rotary Core Drilling Rig, diamond core drilling rigHGY-200 Rotary Core Drilling Rig, diamond core drilling rig

Two patents for diamond core drilling rig

 Utility patent for transmission case.

 Design patent for appearance.

HGY-200 Rotary Core Drilling Rig, diamond core drilling rigHGY-200 Rotary Core Drilling Rig, diamond core drilling rig



Features of diamond core drilling rig (HGY-200):

1) Good stability and high reliability.

2) Multilevel positive and reverse rotate speed.

3) The complete hydraulic chuck and vertical spindle.

4) Convenient to transport  with the small volume and light weight.

5 )Perfect frame's rigidity ,low center of gravity and good stability.



 Technological Data of diamond core drilling rig :

     Model

HGY-200 diamond core drilling rig

Drilling depth( m)

200

Drilling rod diameter.(mm)

Φ42  Φ50

 Head angle range

360

Movable cylinder stroke (mm)

360

Spindle speed( r/min)

  Positive rotation rate:60 150 240 340 550 830

Reverse rotation rate: 35 85 135 195 330 480

Spindle hole diameter( mm)

Φ65

Spindle output torque max(N.M)

2140

Spindle stroke(mm)

500

Lifting power max( KN)

50

Driving force max(KN)

37

Lifting speed( m/s)

0.6 2.3 3.4

Lifting capacity(single) max(KN)

20

Steel wire rope diameter (mm)

11

Mode of chuck

Full-hydraulic chuck or ball-type chuck

 Weight(power unit excepted)(Kg)

 750

Overall dimensions(mm)

1860*800*1400

Diesel engine model

Zs1110 ( 14.7KW)

 Electromotor model

Y160L-4 ( 15KW)









HGY-200 Rotary Core Drilling Rig, diamond core drilling rig



HGY-200 Rotary Core Drilling Rig, diamond core drilling rig



HGY-200 Rotary Core Drilling Rig, diamond core drilling rig



Production

Production

HGY-200 Rotary Core Drilling Rig, diamond core drilling rig



Packaging & Shipping

HGY-200 Rotary Core Drilling Rig, diamond core drilling rig



Company Information

HGY-200 Rotary Core Drilling Rig, diamond core drilling rig

Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.



HGY-200 Rotary Core Drilling Rig, diamond core drilling rigThe rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.

HGY-200 Rotary Core Drilling Rig, diamond core drilling rig







FAQ

How to install this rig? How to operate this rig?

Don't worry,  buy our products, we will give you professional guidance.



We have produced drilling equipments for more than 50 years.

We are a Professional manufacturer.

If this rig is right for you,don't  hesitate to contact us immediately.

If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you  and  recommended right drilling rig for you.



Don't hesitate, email to us now. You will get unexpected results !
