Mineral Core Drilling Machine for Soil Investigation and Mineral Exploration
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Core Drilling Rig, Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HGY-200 Cheap High Quality Engineering Survey Drilling RigNegotiableMOQ: 1 Set -
Rotary Drilling Rig (XUL-100)US$ 1 - 2MOQ: 1 Set
-
HGY-650 Engineering Survey Drilling Rig MachineNegotiableMOQ: 1 Set
-
HGD-100 Full Hydraulic Drilling RigUS$ 1 - 2MOQ: 1 Set
-
XUL-100 Mobile Engineering Survey Drilling Rig for SaleNegotiableMOQ: 1 Set
Condition
New
Type
Other, Core Drilling Rig, Drilling Rig
Power Type
Diesel
Place of Origin
Hunan, China
Brand Name
FLYDISC
Model Number
HGY-650
Usage
Ore
Voltage
220v
Power(W)
36kw
Dimension(L*W*H)
2400*1020*1700
Weight
1550kg
Certification
ce/ISO9001:2008
Warranty
6 months
After-sales Service Provided
Overseas service center available
Specifications
core drilling machineDrilling depth:650m
Drilling dia.:75mm (46~250mm)
soil investigation and mineral exploration drill

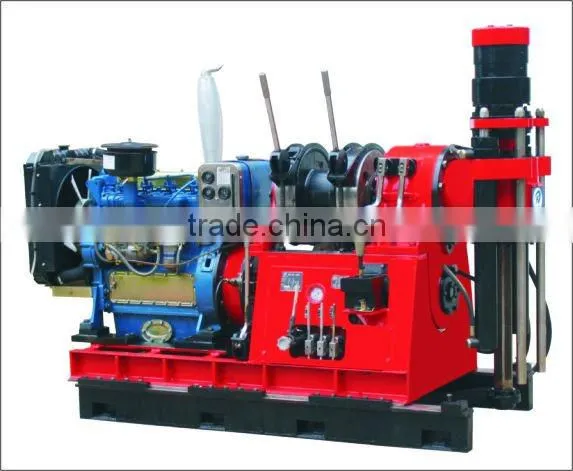

HGY-650 mineral core drilling machine for soil investigation and mineral exploration
Brief introduction of Company:
1.50 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Drilling Ability of HGY-650 core drilling machine
Drilling depth: 650m
Drill hole diameter: 75mm(46~250mm)
Features of HGY-650 core drilling machine :
1) Compact in structure and light in weight.
2) High reliability, good performance and durability.
3) Common auto parts, such as clutch, transmission case and shifting structure.
4) Safe and reliable operations with synchronizer for shifting while the rig is running.
5) Be attached to the tower.
Use of HGY-650 core drilling machine :
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
Technological Data ofHGY-650 core drilling machine :
Model |
HGY-650 Drilling Rig |
Drilling depth( m) |
650 |
Spindle speed( r/min) |
Positive rotation rate: 65 117 201 309 440 187 338 582 894 1273
Reverse rotation rate: 72 207
|
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
3435 |
Spindle hole diameter( mm) |
Φ65 |
Lifting speed( m/s) |
0.43 0.78 1.35 2.08 2.95 |
Lifting capacity(single) max(KN) |
33 |
Diameter & Length of drum(m) |
Φ15*90 |
Movable cylinder stroke (mm) |
400(+-10) |
Max distance from hole (mm) |
250 |
Gear oil pump model |
CB-F32C-FL |
Nominal displacement( ml/r) |
32 |
Nominal pressure( MPa) |
16 |
Oil pump nominal rotation velocity(r/min) |
1800 |
Electromotor model |
YB200L-4 |
Power( kw) |
26 |
Diesel engine model |
4100K |
Power( kw) |
36 |
Speed( r/min) |
1800 |
Weight(power unit excepted)(Kg) |
1550 |
Overall dimensions(mm) |
2400*1020*1700 |
