Specifications
Rotary Drilling Rig (XUL-100)1.Drilling depth:100m, 0~360
2.Hole diameter: 75mm (46~250mm)
3.ISO:9001
4.32 years history

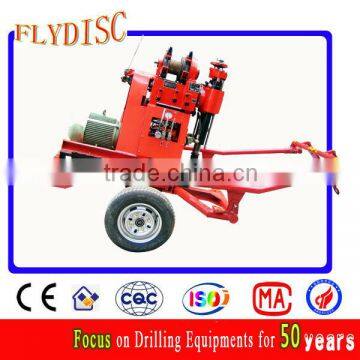

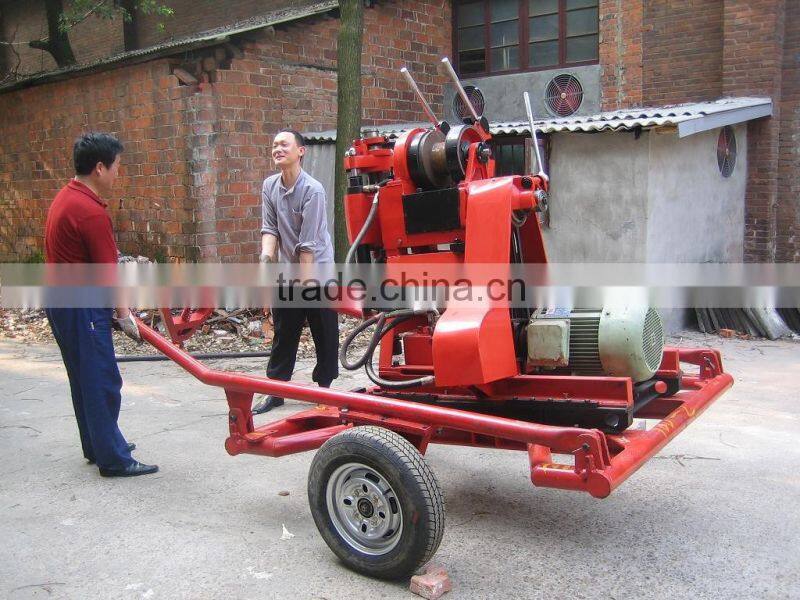

Rotary Drilling Rig (XUL-100)
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Drilling Ability of Rotary Drilling Rig (XUL-100):
Drilling depth: 100m
Drill hole diameter: 75mm(46~250mm)
Technological Data of Rotary Drilling Rig (XUL-100):
| Type | XUL-100 |
| Drilling depth(m) | 100 |
| Drilling rod diameter(mm) | 42 |
| Head angle range | 360° |
| Cylinder stroke (mm) | 300 |
| Spindle speed(r/min) | 144 264 590 1083 |
| spindle hole diameter (mm) | 54 |
| Spindle output torque (N.M) | 800 |
| Spindle stroke (mm) | 370 |
| Spindle driving force max. (KN) | 23 |
| Spindle lifting power max. (KN) | 30 |
| Lifting speed (m/s) | 0.36 0.7 1.49 2.9 |
| Single rope lifting power (KN) | 10 |
| Steel wire rope diameter (mm) | 11 |
| Mode of chuck | handle chuck |
| Weight (power unit excepted)(kg) | 550 |
| (L*W*H)(mm) | 1200×650×1300 |
| Diesel engine | Zs1110 (12.1KW) |
| Electromotor | Y160M-4(11KW) |
Use: for geotechnical investigation,exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospectiong, railway, road, port, bridge, water conservancy and hydropower,tunnel,well, industrial and civil construcion, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
