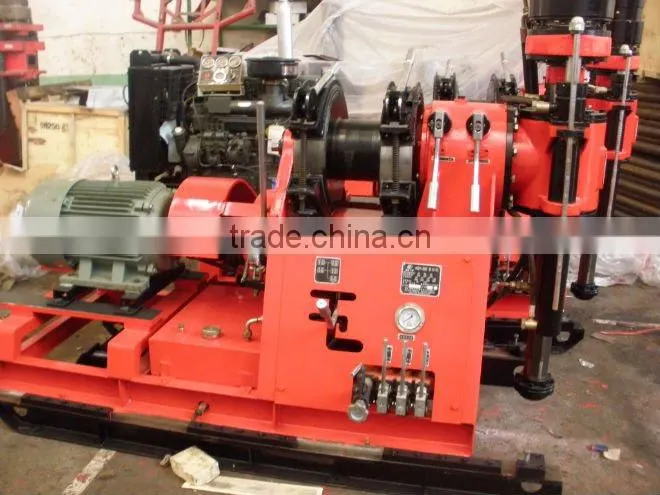

Help CenterMulti-purpose Drilling Machine! HGY-300 Portable Construction Drilling Rig
Related Products
-
HGY-1500 Spindle Compact Construction Drilling Rig With TowerNegotiableMOQ: 1 Piece -
HGY-1000 Construction Drilling Rig, Geotechnical Drilling RigNegotiableMOQ: 1 Set
-
HGY-200 Small Mobile Multifunctional Construction Drill Rig MachineNegotiableMOQ: 1 Set
-
XUL-100 Spindle Compact Multipurpose Construction Drilling RigNegotiableMOQ: 1 Set
-
HGY-1500T Construction Drilling MachineUS$ 1 - 2MOQ: 1 Set
Specifications
Drilling depth: 300mDrill dia.: 75mm
Take rock core sample in mining exploration, geological survey
Company introduction:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of Drilling Rigs:
Model |
HGY-300 Drilling Rig |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360 |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate: 38 173 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
3100 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.30 0.59 1.01 1.66 2.09 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
13 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2000*900*1600 |
Diesel engine model |
395K2( 19.8KW) |
Electromotor model |
Y180L-4( 22KW) |
For construction drilling,you also need drill tools as below:
Q:How to choose drilling rig?
Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
