Specifications
Water Drilling Machine for saleDrilling depth:200m
Drilling Dia.:100~200mm
Use: water well drilling, soil, rock,coal drillin

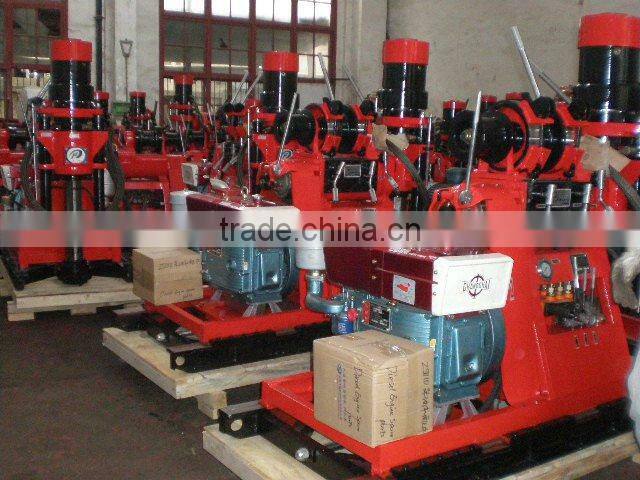

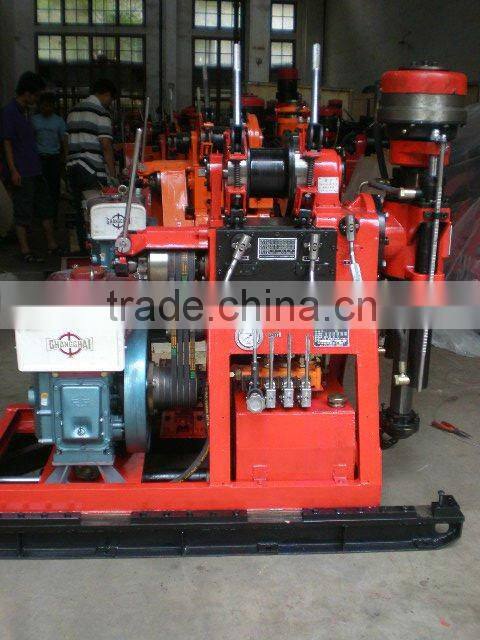

Water Drilling Machine for sale
Brief introduction of Water Drilling Machine for sale :
1.32 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Two patents of Water Drilling Machine for sale :
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of Water Drilling Machine for sale
: Drilling depth: 200m
Drill hole diameter: 100~200mm(46~250mm)
Successful drilling depth: 427m, 478m with 75mm hole diameter
Features of Water Drilling Machine for sale :
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of Water Drilling Machine for sale :
| Technological Data of Drilling Rigs | |
| Type | HGY-200 |
| Drilling depth(m) | 200 |
| Drilling rod diameter(mm) | 42 50 |
| Head angle range | 360° |
| Cylinder stroke (mm) | 360 |
| Spindle speed(r/min) | Positive rotative velocity: 60 150 240 340 550 830 reverse rotative velocity: 35 85 135 195 330 480 |
| spindle hole diameter (mm) | 65 |
| Spindle output torque (N.M) | 2140 |
| Spindle stroke (mm) | 500 |
| Spindle driving force max. (KN) | 37 |
| Spindle lifting power max. (KN) | 50 |
| Lifting speed (m/s) | 0.6 2.3 3.4 |
| Single rope lifting power (KN) | 20 |
| Steel wire rope diameter (mm) | 11 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 750 |
| (L*W*H)(mm) | 1860×800×1400 |
| Diesel engine | Zs1110 (14.7KW) |
| Electromotor | Y160L-4(15KW) |

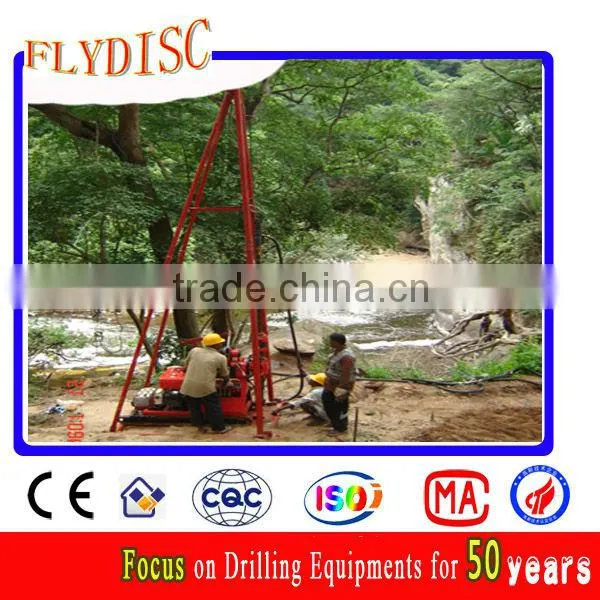

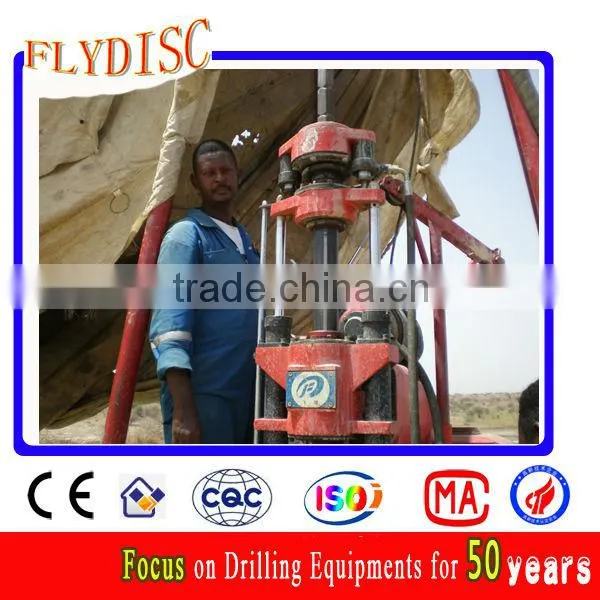

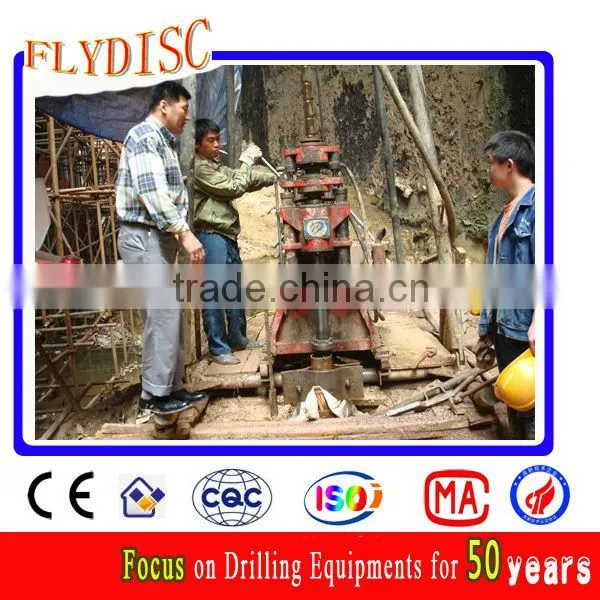

Application of Water Drilling Machine for sale :
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
