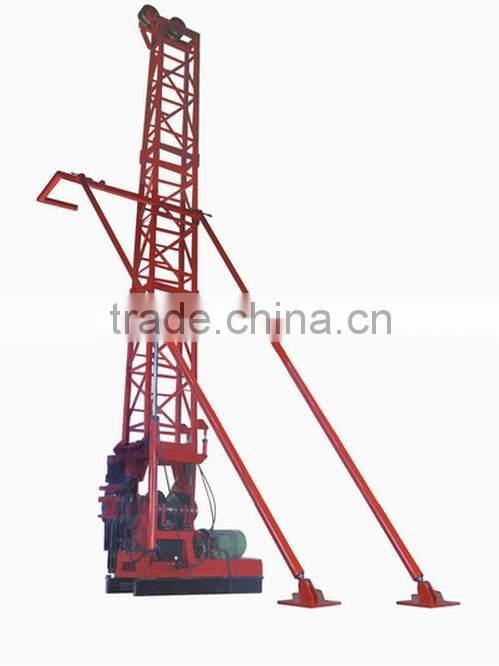

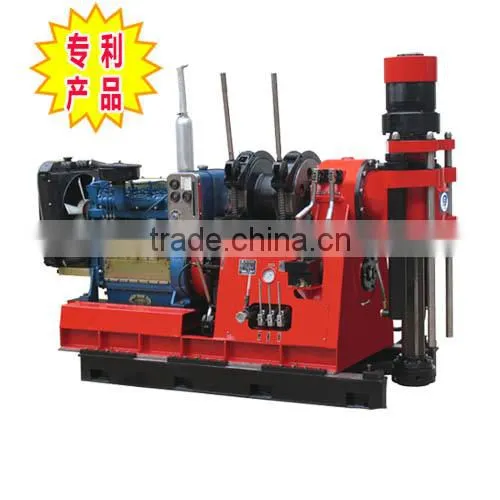

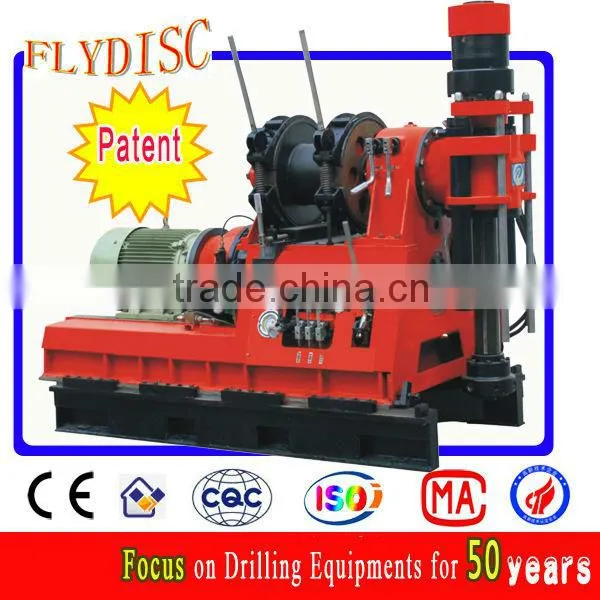

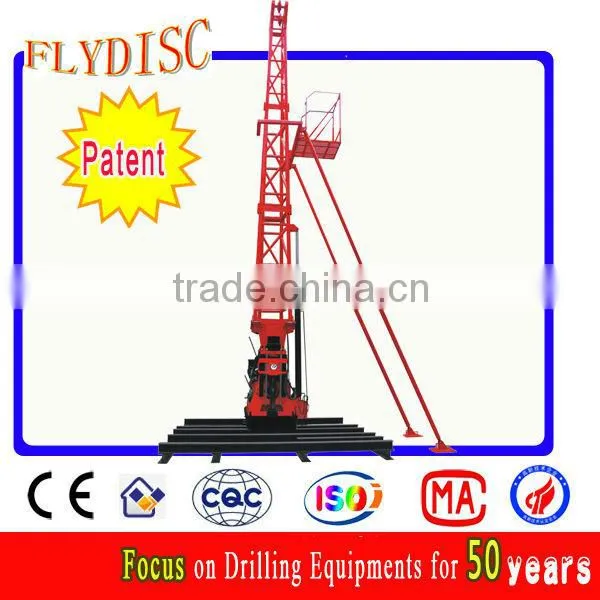

Construction Drilling Rig (HGY-1500T)
Features of Rotary Core Drilling Rig (HGY-1500T):
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Technological Data of Rotary Core Drilling Rig (HGY-1500T)
Model |
HGY-1500T Construction Drilling Rig |
Drilling depth( m) |
1500~1200 |
Rod diameter( mm) |
Φ42~Φ50 |
Spindle speed( r/min) |
Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
7150 |
Spindle hole diameter( mm) |
Φ95 |
Cable diameter(mm) |
17.5 |
Drum circumferential velocity( 9 layers) |
130 |
Lifting speed( m/s) |
0.51 0.81 1.37 2.06 2.92 3.91 |
Lifting capacity(single) max(KN) |
40 |
Movable cylinder stroke (mm) |
400 |
Gear oil pump model |
2CB-FA32/10-FL |
Nominal displacement( ml/r) |
40 |
Nominal pressure( MPa) |
14 |
Electromotor model |
Y225S-4 or Y225M-4 |
Power( kw) |
37 or 45 |
Speed( r/min) |
1480 |
Diesel engine model |
4110-125 |
Power( kw) |
81 |
Speed( r/min) |
2800 |
Diesel engine weght(Kg) |
385 |
Overall dimensions(mm) |
2460*1150*1888 |
Weight(power unit excepted)(Kg) |
4100 |
Head angle range |
0~90 |
Diesel engine model |
R4105ZD1 |
Tower load(t) |
10 |
Tower height(m) |
9.5 |
Tower pedestal(m) |
4*4.5 |

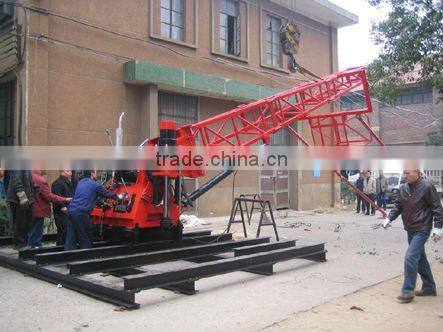

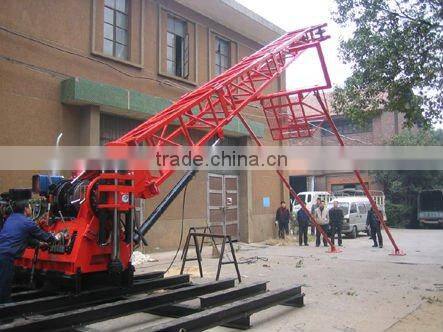

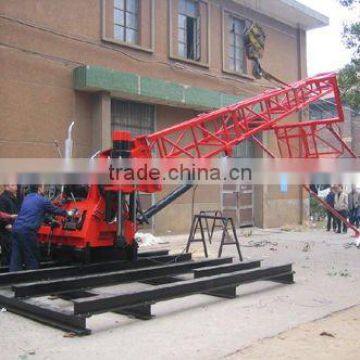

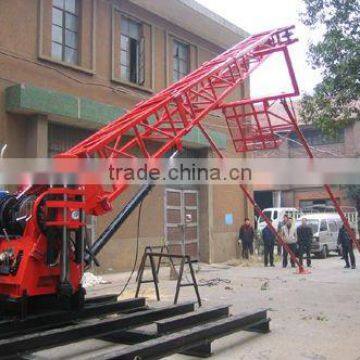

Production
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
|
|
|
|
| Max. Depth:1000m | Max. Depth:1500m | Max. Depth:200m | Max. Depth:100m |
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
