Name: Fiber Laser cutting machine GMS-20F for cutting solar cell

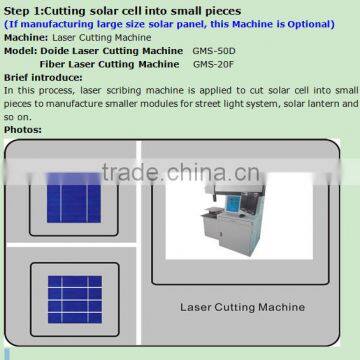

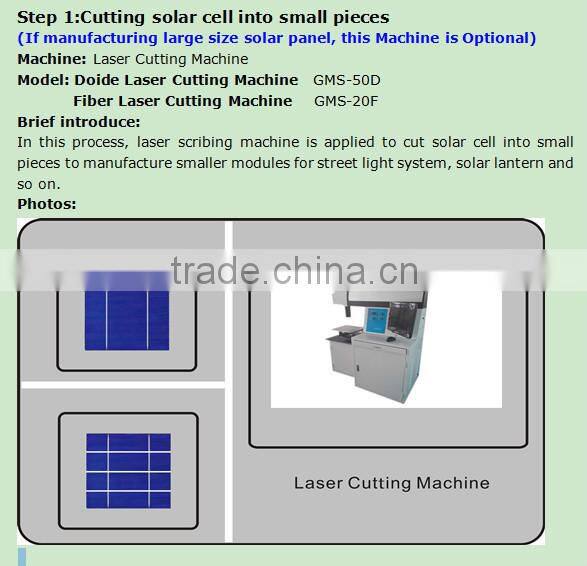

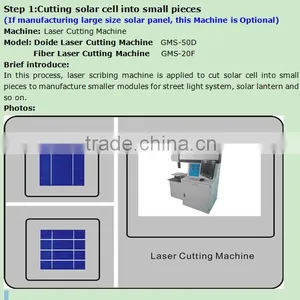

LASER CUTTER USED IN SOLAR PANEL ASSEMBILY LINE:
About Gmee Solar
GMEE SOLAR, specializing in turnkey solution for solar module production line, so far has exported machines and
production lines to many countries, like Mexico, UK, India, Thailand, Malaysia, US, Japan, Germany, Italy, etc., and
continuously gets praise and trust from customers. With 8+ years of experience in the Solar PV industry, GMEE SOLAR
together with its solid parters, has formed a professional team to fulfill its customer satisfaction
GMEE SOLAR’s head company -- YIHENG
YIHENG is the first and largest manufacturer of laminator in China since 2001. Its “ORIENT” laminators have 70% high-end market in China. The largest customers include: Yingli solar, CSI, Jinko, and JA solar..
GMEE SOLAR’s Solid Partner -- GEOLITE
GEOLITE was founded in 2003, and owns patents of 13 advanced technology. GEOLITE invented the first auto solar
cell stringer in China and is the leading manufacturer of auto stringer with complete solution of the auto solar module
production line.
Introduction:
The 20 W fiber laser with optics isolation system has high stability and good scribing quality,
better than traditional lamp-pumped laser. Its 1,064 nm laser wavelength could scribe on
silicon wafer/ solar cell/ ceramic wafer/ thin metal sheet.
Features:
Great laser quality/ reliability
Very Low operation cost
Maintenance-free
Compact design
Easy operation and professional software
Specifications
Laser |
1, 064 nm, Max 20 W, air-cooled |
Min line width |
0.02 mm |
Max cutting depth |
0.2 mm |
Min laser beam diameter |
0.02mm |
Max scribing speed |
max 200 mm/s |
Power supply |
AC 220V +/- 10%, 50Hz |
Input power |
1 KW |
Working area |
250 mm * 250 mm |
Machine Photos

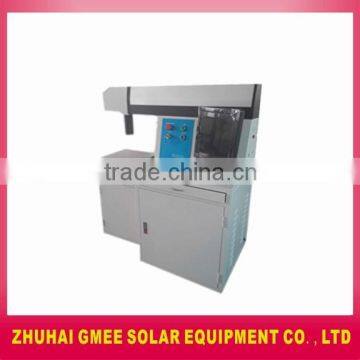

front side of machine:
Before break of solar cell:
After break of solar cell:
