Name: cnc laser cutting machine GMS-50D for cutting solar cell .
.

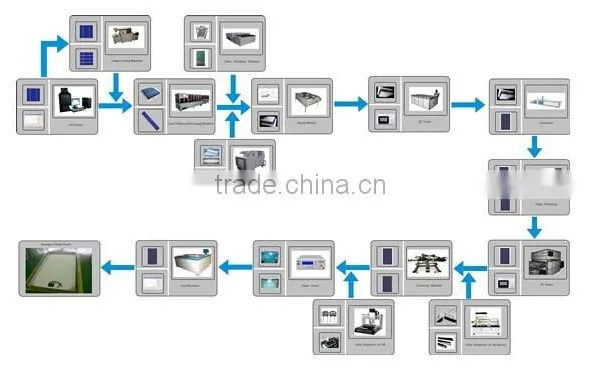

LASER CUTTER USED IN SOLAR PANEL ASSEMBILY LINE:
About Gmee Solar
GMEE SOLAR, specializing in turnkey solution for solar module production line, so far has exported machines and
production lines to many countries, like Mexico, UK, India, Thailand, Malaysia, US, Japan, Germany, Italy, etc., and
continuously gets praise and trust from customers. With 8+ years of experience in the Solar PV industry, GMEE SOLAR
together with its solid parters, has formed a professional team to fulfill its customer satisfaction
GMEE SOLAR’s head company -- YIHENG
YIHENG is the first and largest manufacturer of laminator in China since 2001. Its “ORIENT” laminators have 70% high-end market in China. The largest customers include: Yingli solar, CSI, Jinko, and JA solar..
GMEE SOLAR’s Solid Partner -- GEOLITE
GEOLITE was founded in 2003, and owns patents of 13 advanced technology. GEOLITE invented the first auto solar
cell stringer in China and is the leading manufacturer of auto stringer with complete solution of the auto solar module
production line.
Introduction:
The new generation of Diode laser cutting machine is capable of scribing various silicon wafer, solar cell,
ceramic wafer, thin metal sheet (maximum ~0.5 mm thick ), etc., for industries of electronics/
semiconductor/ solar energy, etc.. It is designed by experts with professional features, such as excellent
cutting quality/ reliability, and efficient auto cooling system.
Features:
Excellent cutting quality/ reliability
High-speed up to 120 mm/s
Auto cooling
Precise CNC worktable
Friendly man-machine interface and simple software operation
Maintenance-free
Specifications:
Parameter: | |||
Wavelength: |
1064 nm |
Min scribing line width: |
0.05mm |
Pump source: |
Diode Pumped Laser |
Working area: |
Max 350mm, customized |
Modulated frequency: |
0.5 - 50 kHz |
CNC worktable accuracy: |
0.01mm |
Beam power: |
Adjustable, max 50 W |
Power supply: |
220 VAC +/- 10%, 50 Hz |
Scribing/ cutting speed: |
Adjustable, max 120 mm/ s |
Input power: |
Max 2 kW |
Max scribing depth: |
1.2 mm |
Temp Control Precision: |
0.5C Degree |
Machine Photos:
front side of machine:
Control Panel:
Laser Beam:
Power cabinet:
Cuttng solar cell:
Before break of solar cell:
After break of solar cell:
One corner of our factory:
Machine used in customer`s factory in India:
