LED Automatic Pick and Place Machine /Pick&Place Machine / IC Mounter GP1200

LED Automatic Pick and Place Machine /Pick&Place Machine / IC Mounter GP1200 thumbnail-1
LED Automatic Pick and Place Machine /Pick&Place Machine / IC Mounter GP1200 photo-1
US$ 1,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
GLICHN
Contact Supplier Request Quote Chat Now
Beijing Glichn S&T Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Beijing, China
Brand Name GLICHN
Model Number GP1200
Voltage 220V 50/60Hz
Power(W) 800
Weight 380Kg
Dimension(L*W*H) 2185mm*850mm*1260mm
Certification CE
Warranty one year

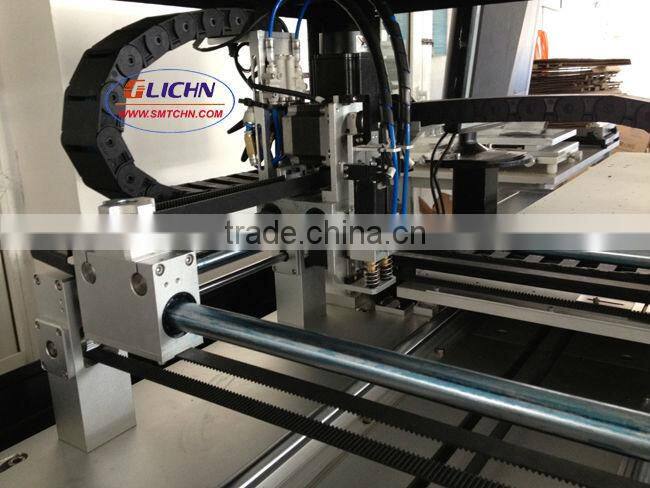

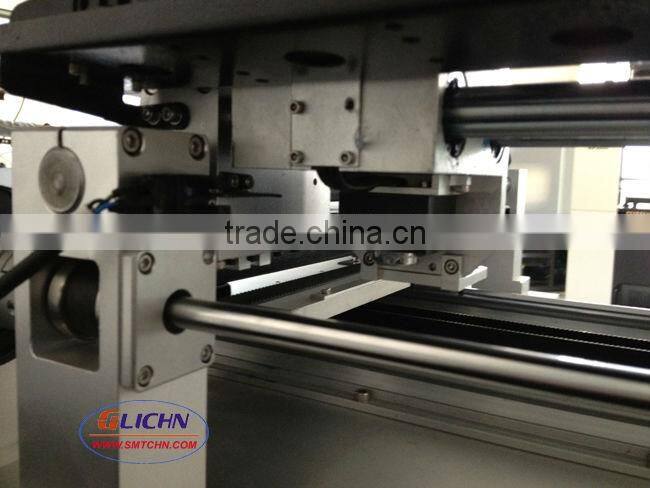

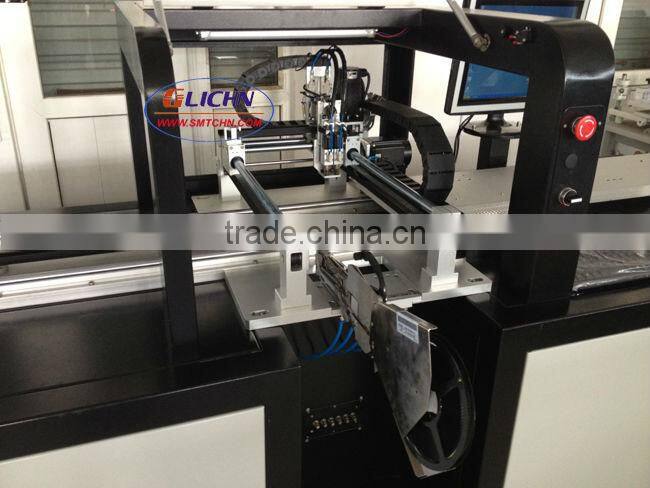

 LED Pick and place machine GP1200

Vision version + HD CCD camera + Automatical feeding



Main Features:



1. Maximum PCB size:1215×315mm
2. Maximum moving range: 152×465mm
3. Z axis maximum moving range: 20mm
4. Max pick and place speed: 8600CPH
5. Power rate: 800W
6. Motor: Stepper motor
7. Vision display: 15 inch color high-pixel display

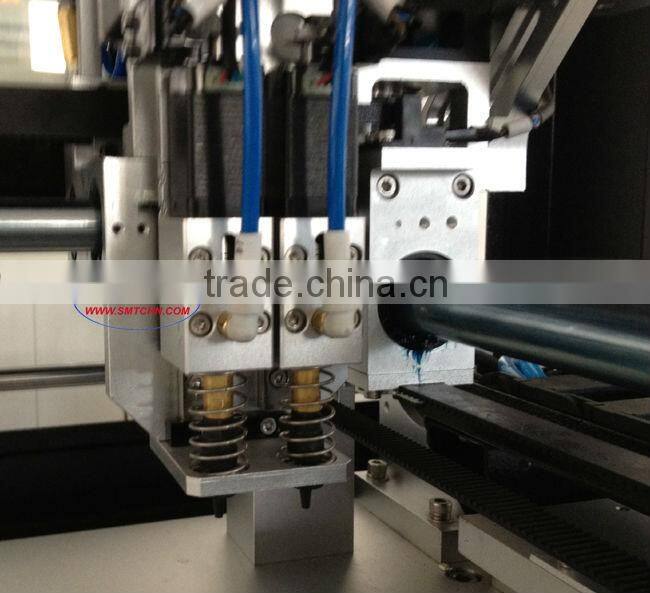

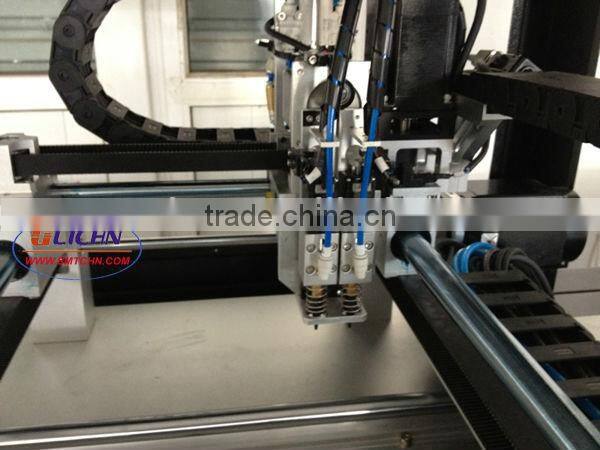

8. Pick and place head: Double head
9. Number of feeders: 6
10. Belted feeder: 8, 12, 16, 24mm
11. Pick and place precision: 0.01mm
12. Maximum moving range of working platform: 1454mm
13. Application: 0402,0603,0805,1206(3014),1210(3528),5050,SOT



 Basic Features
1. Power supply: 20V, 50Hz
2. Compressed air: 0.65-0.75Mpa,
3. Moving drive system: The senior AC servo system
4. Component angle: 0-360°any angle, autosynchronous turning
5. X/Y moving mode: New straight line interpolation linkage V2013
6. Air source:Anti-mounted positive and negative pressure switch
7. Operating system: Independently developed 2013 version
8. Programming mode: Point-to-point programming, vision programming, PCB file coordinate guide-in
9. Vision programming camera: High-pixel color infrared CCD
10. Weight: 375kg
11. Dimension: 2185mm*850mm*1260mm
