Automatic pick and place machine GP4220V

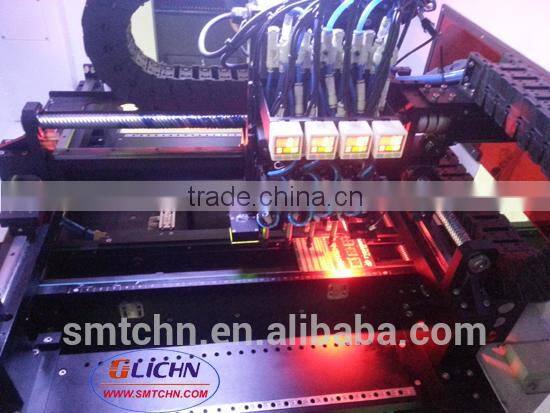

This multi-head pick and place machine with high quality and reasonable price was researched and developed based on market requirement by R&D team of GLICHN Electronic Technology Co.,Ltd ,which aimed especially at users of high-precision mass production, most suitable for mass production of resistance-capacitance components and some other mixed component mounting of SOP, SOIC, QFP, QFN etc. This equipment has the characteristics of simple operation, friendly interface, powerful functions, especially applicable to the usage habits of users.
Technical Parameters of Equipment
Specification |
Parameter |
Maximum PCB area |
400 mm×300 mm |
Maximum moving range of Z axis |
30mm |
Theoretical SMD speed |
12000cph |
Maximum SMD speed |
5000-8000cph |
Minimum moving distance |
0.004mm |
Positional accuracy |
0.05mm |
Numbers of heads |
4 pcs |
Numbers of feeders |
80 pcs(8mm) |
Component application range |
0402,0603,0805,1206(3014),1210(3528),5050,SOT,SOIC,QFP,QFN etc. |
|
Motion driven system
|
High speed DSP drive |
Rotation mode of component angle |
0-360 free angle, rotating synchronously in motion, |
Tape feeder standard |
8mm 12mm 16mm 24mm optional |
X/Y operation mode |
New generation of linear interpolation linkage |
source of vacuum |
Vacuum generator |
Operating system |
windows xp,sp3 |
Programming mode |

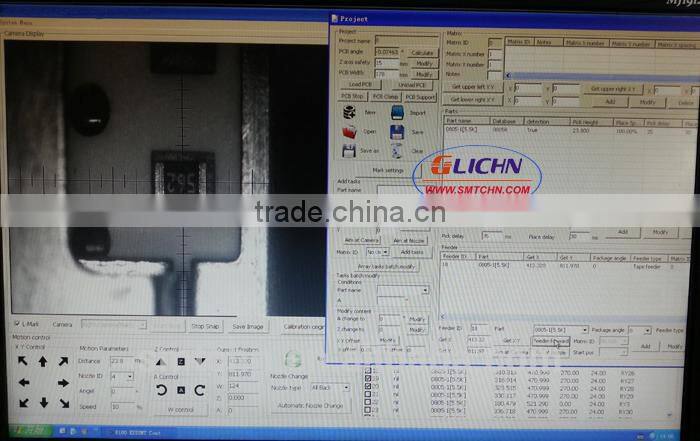

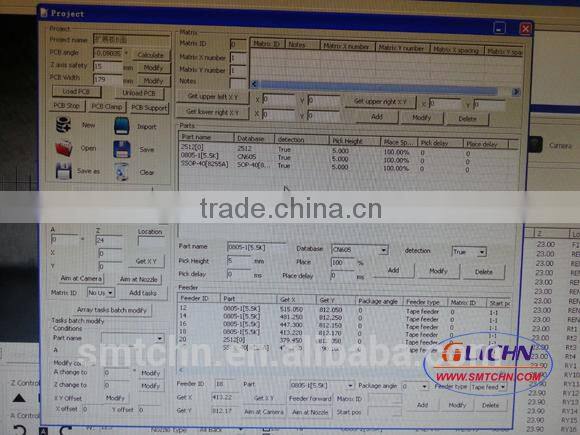

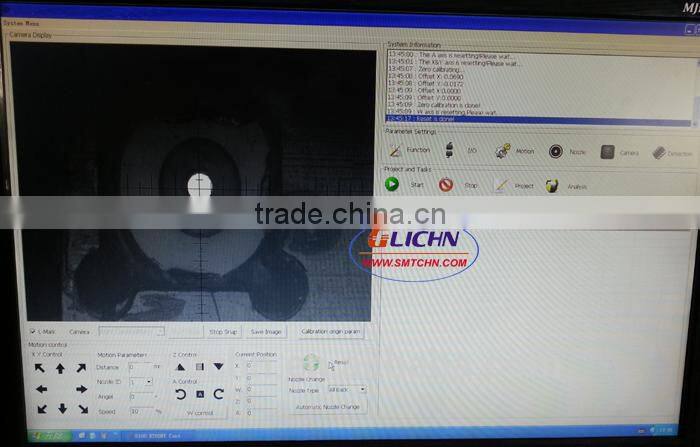

Industrial computer visual programming, PCB coordinate import. |
Power supply |
AC 220V, 50Hz |
Power |
3000W |
Machine dimension |
1400mm×1500mm×1500mm |
Weight |
600Kg |
Visual programming camera type |
High pixel color USB,CCD array camera |
Bottom lens system |
1 set of standard configuration, adopting high pixel black and white CCD camera fitted with special light source to perform image processing. |
Requirement for compressed air |
Air pressure is more than 80psi(0.65—0.75 MPa),with air flow greater than 250L/min |
