Specifications

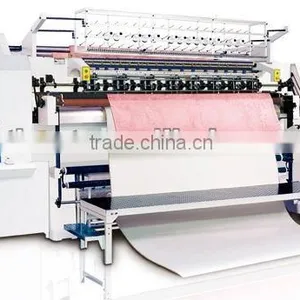

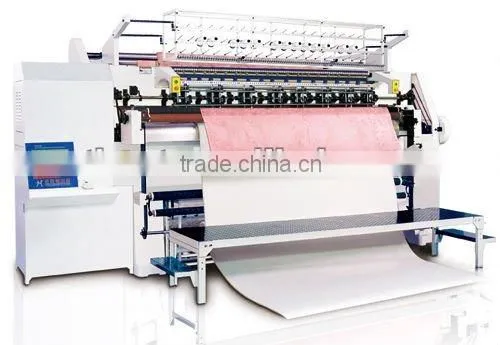

It is widely used for quilting high-quality mattresses , quilt covers , and household ornaments.Different patterns are availableBST-94-3JL Computerized Chain Stitch Multi-needle Quilting Machine Feature:
1, Multi-span independent pattern (360°,180° patterns are available)
2, Automatic pause in the case that the upper thread or the bottom thread breaks , automatic needle – lifting; and computerized speed adjustment
3, Available features such as high rigidity , high speed of running , low vibration , low noise , and no collision.
4, Computerized control system of new generation to ensure the precision of quilting and reduce excessive parameter adjustment and pattern modification .
5, CAD drawing method to ensure the precise of pattern and facilitate the operation
6, Strong functions of pattern – combining and multi – span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes .
7, Function of state detection and prompt to make you know the running state of the machine.
Purpose : It is widely used for quilting high – quality mattresses , quilt covers , and household ornaments. Different patterns are available.
Parameter Unit ( mm )
Dimension(L×W×H) :4715×1200×1925
Width of quilting:2450
Space between needle rows:50.8,76.2,127(5”),76.2,76.2,152.4(6”)
Space between needles:25.4
X-axis movement distance:430
Thickness of quilting≤50 (180°patterns)
Length of step:3-6
Speed of production:45~180(m/hour)
Model of needle:24/180 23/160 22/140
Speed of main shaft:650~930(RPM)
Power:4.5KW
Voltage :380V/50HZ 220V/60HZ
Gross weight:4000kg
