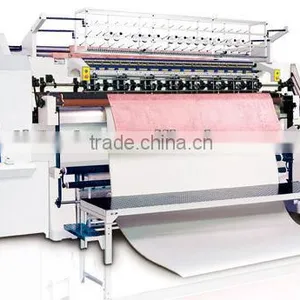

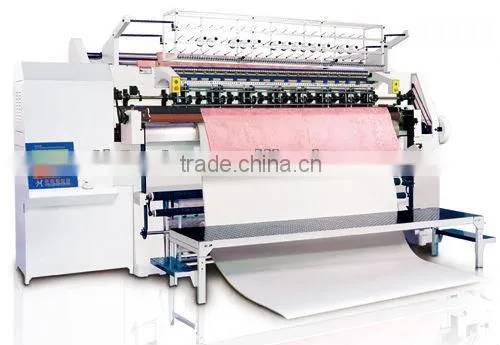

Computerized Chain Stitch Multi-needle Quilting Machine BST-94-3JL

Specifications

Computerized Chain Stitch Multi-needle Quilting Machine BST-94-3JL

Purpose : It is widely used for quilting high-quality mattresses , quilt covers , and household ornaments . Different patterns are available
1, Multi-span independent pattern (360°,180° patterns are available)
2, Automatic pause in the case that the upper thread or the bottom thread breaks , automatic needle – lifting; and computerized speed adjustment
3, Available features such as high rigidity , high speed of running , low vibration , low noise , and no collision.
4, Computerized control system of new generation to ensure the precision of quilting and reduce excessive parameter adjustment and pattern modification
5, CAD drawing method to ensure the precise of pattern and facilitate the operation
6, Strong functions of pattern – combining and multi – span quilting to enable you to quilt different patterns in each row in the mattresses of different size.
7, Function of state detection and prompt to make you know the running state of the machine

Parameter Unit ( mm )
Dimension(L×W×H) :4715×1200×1925
Width of quilting:2450
Space between needle rows:50.8,76.2,127(5”),76.2,76.2,152.4(6”)
Space between needles:25.4
X-axis movement distance:430
Thickness of quilting≤50 (180°patterns)
Length of step:3-6
Speed of production:45~180(m/hour)
Model of needle:24/180 23/160 22/140
Speed of main shaft:650~930(RPM)
Power:4.5KW
Voltage :380V/50HZ 220V/60HZ
Gross weight:4000kg
