Help Center315mm Creasing & Perforating Machine-NO.43288000
Related Products
Specifications
HCP315 Creasing & Perforating Machine1.Offers great quality creasing and perforating of single sheets, for smooth folds.
315mm Creasing & Perforating Machine-NO.43288000
Description:
Creasing & Perforating Machine
A millimeter scale is running along the sides of its base. It is used to adjust the front, rear, and angular stop. In the process of creasing, the paper weight can up to 400gsm. The width of crease is 1.2 /1.8mm. And its creasing angle is 0 ~ 90°. The weight of the machine is only 25.4lb (11.5kg). It is convenience for transformation. Substitute the upper grooving bar with a perforation of paper whose maximum weight is 250gsm.
Application:
The creasing & perforating machine is designed for the final processing of graphical materials. The grooving finish allows for the smooth folding of publicity materials, annual reports, wedding cards, invitation cards, seasonal cards, menu, and so on.
Theadvantage is perfect design, precision and high quality service. The perforated finish is applied on tear-off paper products such as admission tickets, vouchers, food coupons, etc.
Fectures:
. HCP315 offers great quality creasing and perforating of single sheets, for smooth folds and clean tear off.
. Perforates up to 250gsm paper;
. Perforates for food coupons, vouchers, etc;
. 0-90 degree creasing & perforating angle;

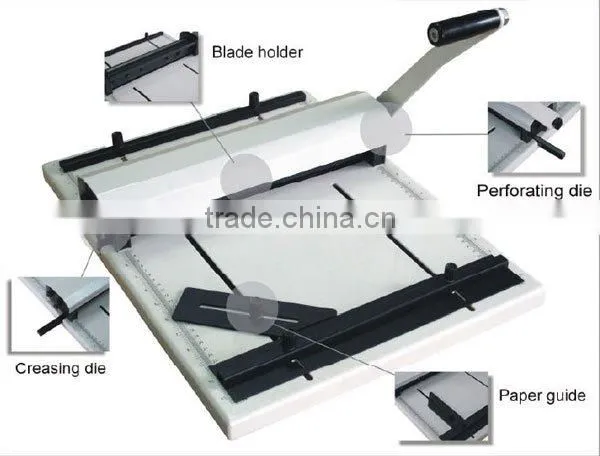

. The mechanism is working with a knife and a v-shaped counter knife in order to be very smooth;
. Millimeter scale runs along the sides;
. Easy adjustment of front, rear & angular paper guides;
. Simple manual adjustment required to change codes.
Packing Details:
Packing Size: (570*460*190mm)
G. W.: 26.5lb (12kg)
