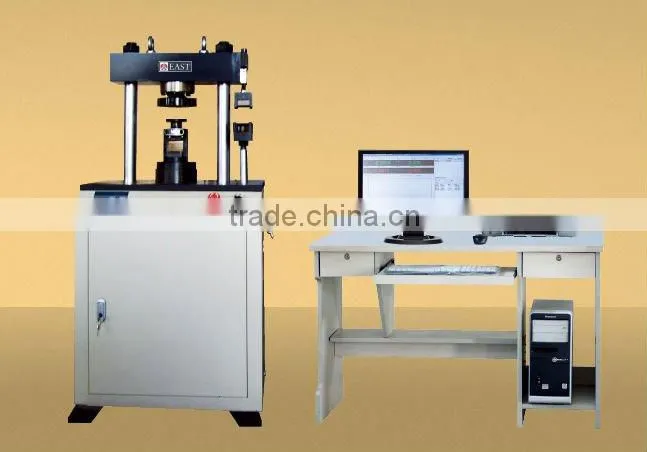

computer control cement compression machine

model

YAW-300

maximum test force(KN)

300

test power accuracy

better than the indicated value ± 1%

force measurement range(KN)

12-300

Load speed(KN/S)

              1-10

loading speed accuracy

better than the set value of ± 5%

the upper pressure plate size(mm)

φ125

the lower pressure plate size(mm)

175*175

the upper and lower platen distance(mm)

250

effective stroke(mm)

         120

power supply

220V ± 10%, 50Hz

Dimension(mm)

630*400*1530
