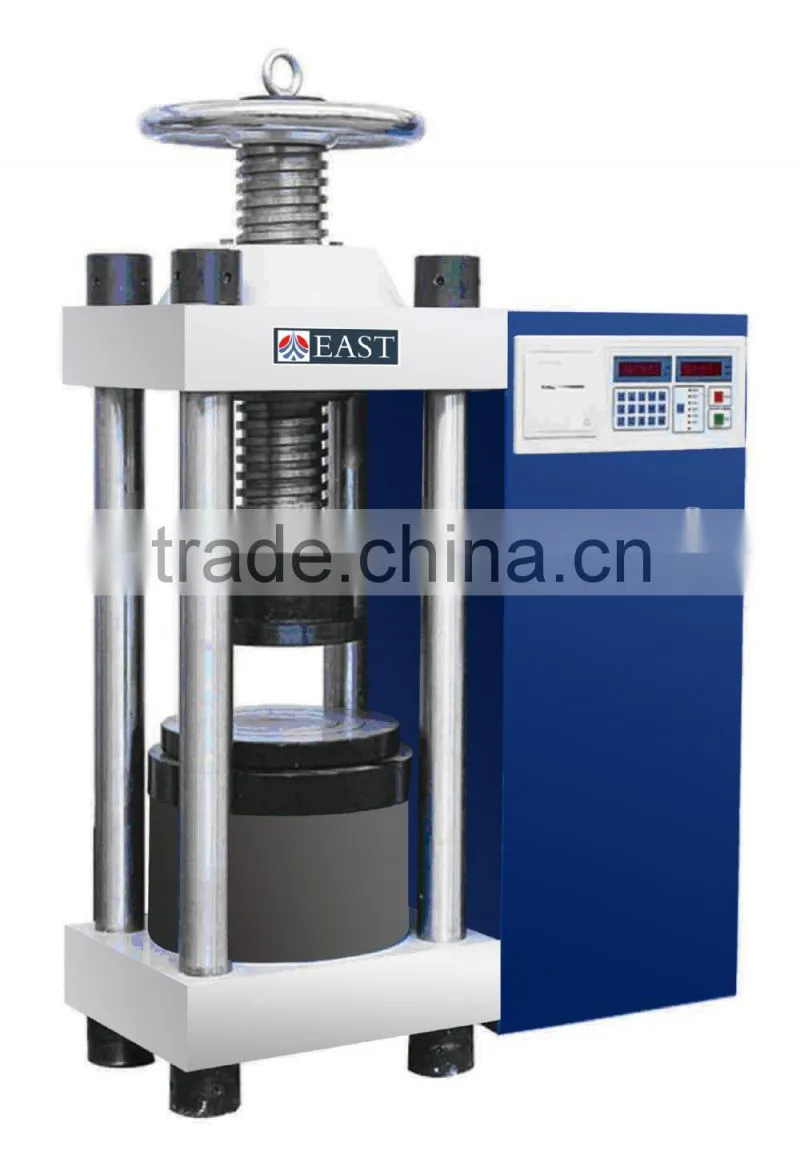

YES-3000D concrete compression testing machine
1. Application
digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
Model |
YES-3000D |
Max. load |
3000kN |
Class |
1 class |
Testing space regulating way |
Electric ball screw adjust |
Control way |
Manual control load way |
Oil source control cabinet structure form |
One-piece bench oil source control cabinet |
Range of test force |
4% ~100%FS |
Indicating value accuracy |
±1% |
Piston route |
80mm |
Max piston speed |
80mm/min |
Range between the working tables |
340mm |
Pressure plates size |
250*250mm(Can be customized) |
Display |
LCD |
Power supply |
2.1Kw/AC380V |
Quotation | |
Price(FOB Qingdao) |
5000-7000 USD/set |
Payment terms |
TT in advance |
Delivery time |
7 days after receiving payment |
Guarantee |
Guarantee 1 year for the whole machine |
