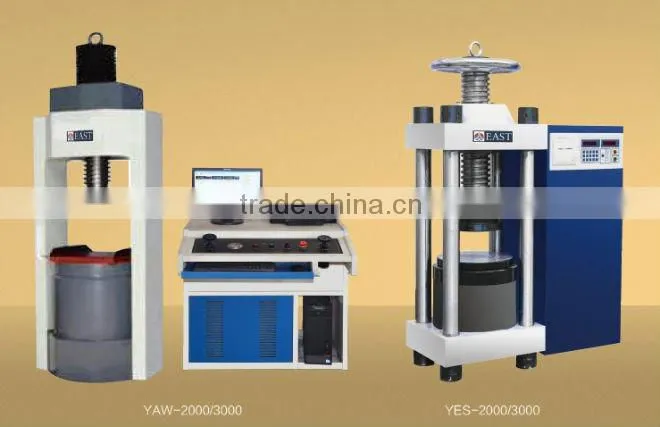

YAW Computer-controlled compression testing machine
Main application and characteristic
1.This machine is mainly used in examining compressive strength of building materials product as concrete , cement component etc., collocating necessary accessories, it may also examine compressive strength of building material as brick, tile, stone material etc.
2.This machine adopt four column structure and is composed of hydraulic pressure type host machine, controller and computer control system ,can completely satisfy request of constant speed loading to the testing product in the standard of GB/50081-2002 <Ordinary concrete mechanics Performance test Method>,it is the upgrading product of hand control compression testing machine
Main technical data
Model |
YAW-1000 |
YAW-2000 |
YAW-3000 |
Test Force Range(KN) |
40~1000 |
80~2000 |
120~3000 |
Test force measurement accuracy |
±1% |
||
Loading speed(KN/S) |
1~10 |
||
Loading speed accuracy |
Better than the set value of ± 5%
|
||
Pressure plate size(mm) |
Φ220 |
Φ300 |
350 |
The upper and lower platen distance(mm) |
320 |
320 |
320 |
Piston stroke(mm) |
100 |
100 |
100 |
power |
380V±10%,4.5/5KW |
||
external dimension(mm) |
910*580*1800 |
910*580*1940 |
910*580*1940 |
Weight(kg) |
2000 |
2000 |
2050 |
