Specifications
1. MATERIAL: High Tensile Steel2. CONSTRUCTION: Quenched and Tempered
3. STANDARD: U.S. Fed.Spec.RR-C-271
Product Description

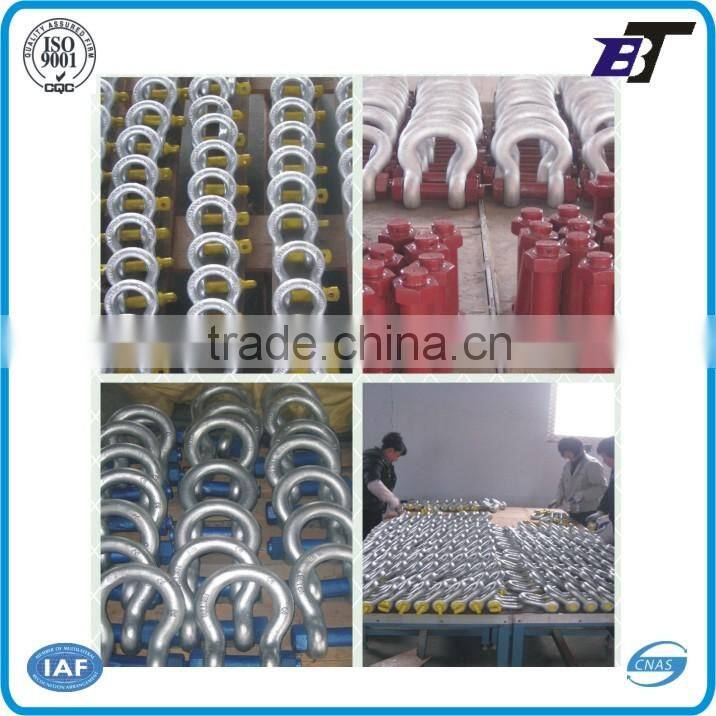

Screw Pin Chain US Load rated Shackle
| MATERIAL: | High Tensile Steel | ||
| CONSTRUCTION: | Quenched and Tempered | ||
| STANDARD: | US Fed.Spec.RR-C-271 | ||
| PROOF LOAD: | Proof load tested at 2 times of Working load limit | ||
| SAFETY FACTOR: | MBL equals 6 X WLL | ||
| working load limit | diameter bow(mm) | width inside(mm) | diameter pin(mm) |
| WLL1/3T | 5 | 9.5 | 6 |
| WLL1/2T | 6 | 12 | 8 |
| WLL3/4T | 8 | 13.5 | 10 |
| WLL1T | 10 | 17 | 11 |
| WLL1 1/2T | 11 | 19 | 13 |
| WLL2T | 13 | 20 | 16 |
| WLL3 1/4T | 16 | 27 | 19 |
| WLL4 3/4T | 19 | 32 | 22 |
| WLL6 1/2T | 22 | 36 | 25 |
| WLL8 1/2T | 25 | 43 | 28 |
| WLL9 1/2T | 28 | 46 | 32 |
| WLL12T | 32 | 51 | 35 |
| WLL13 1/2T | 35 | 57 | 38 |
| WLL17T | 38 | 60 | 42 |
| WLL25T | 45 | 73 | 50 |
| WLL35T | 50 | 84 | 57 |
| WLL55T | 64 | 107 | 68 |
| WLL85T | 76 | 127 | 80 |
Application
Widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.
About us
1. We are Manufacturer.
2. We are specializing in various shackles, turnbuckles, hooks, binders, clamps, eye bolts and nuts, thimbles, anchor chains and stainless steel rigging.
3. Stock: Rich
4. We accept customized drawing and dimension
5. Best Quanlity,Competitive pricing, Speedy delivery,24 hours Service.
6. Our clients are from Europe, America, Australia, Africa, Mid East, etc.
7. We assure Each kinds of item must be strictly inspected one by one efore shipment .
All finished products are not on ground.
