Specifications
1. MATERIAL: Alloy Steel2. CONSTRUCTION: Quenched and Tempered
3. STANDARD: U.S. Fed.Spec.RR-C-271D
Product Description

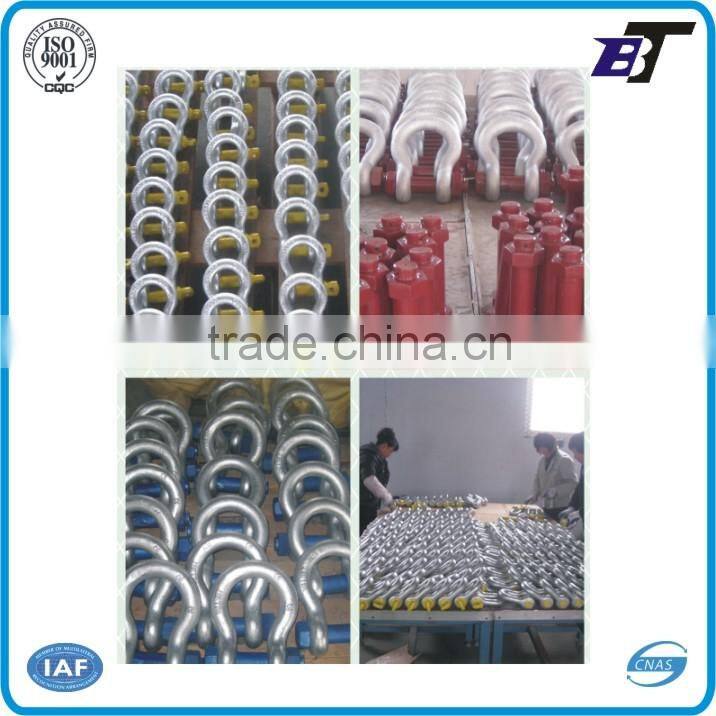

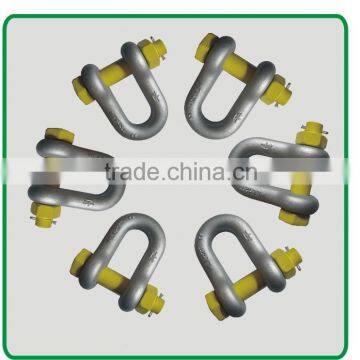

US Type Load rated Chain Shackle with Safety Pin
| MATERIAL: | Alloy Steel | ||
| CONSTRUCTION: | Quenched and Tempered | ||
| STANDARD: | U.S. Fed.Spec.RR-C-271D | ||
| PROOF LOAD: | Proof load tested at 2 times of working load limit | ||
| SAFETY FACTOR: | MBL equals 6 X WLL | ||
| FATIGUE: | Fatigue test at 1.5 times of working load limit | ||
WARNING: NEVER EXCEED PUBLISHED WORKING LOAD LIMIT
| working load limit | diameter bow(mm) | width inside(mm) | diameter pin(mm) |
| WLL1/3T | 5 | 9.5 | 6 |
| WLL1/2T | 6 | 12 | 8 |
| WLL3/4T | 8 | 13.5 | 10 |
| WLL1T | 10 | 17 | 11 |
| WLL1 1/2T | 11 | 19 | 13 |
| WLL2T | 13 | 20 | 16 |
| WLL3 1/4T | 16 | 27 | 19 |
| WLL4 3/4T | 19 | 32 | 22 |
| WLL6 1/2T | 22 | 36 | 25 |
| WLL8 1/2T | 25 | 43 | 28 |
| WLL9 1/2T | 28 | 46 | 32 |
| WLL12T | 32 | 51 | 35 |
| WLL13 1/2T | 35 | 57 | 38 |
| WLL17T | 38 | 60 | 42 |
| WLL25T | 45 | 73 | 50 |
| WLL35T | 50 | 84 | 57 |
| WLL55T | 64 | 107 | 68 |
| WLL85T | 76 | 127 | 80 |
| WLL120T | 89 | 133 | 95 |
| WLL150T | 102 | 140 | 108 |
Application
Widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.
About us
1. We are Manufacturer.
2. We are specializing in various shackles, turnbuckles, hooks, binders, clamps, eye bolts and nuts, thimbles, anchor chains and stainless steel rigging.
3. Stock: Rich
4. We accept customized drawing and dimension
5. Best Quality,Competitive pricing, Speedy delivery,24 hours Service.
6. Our clients are from Europe, America, Australia, Africa, Mid East, etc.
7. We assure Each kinds of item must be strictly inspected one by one before shipment .
All finished products are not on ground.
Mass Production
Process
Packing
Workshop & Equipment
Shipping
Contact
Welcome your inquiry,I will quote to you as soon as possible!
