390 Buy 1 Get 1 Free / Low Cost Bga Machine for Mobile Repair

Name: 390 Buy 1 Get 1 Free / Low Cost Bga Machine for Mobile Repair
Brand: DINGHUA
SKU: 120881783

390 Buy 1 Get 1 Free / Low Cost Bga Machine for Mobile Repair thumbnail-1

390 Buy 1 Get 1 Free / Low Cost Bga Machine for Mobile Repair photo-1

US$ 500 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA

Model Number:

DH-5860

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DINGHUA

Model Number DH-5860

Voltage 220V / 110V

Dimensions 64*63*59 CM

Weight 38 KG

Usage low cost bga machine

Certification CE, Rohs, ISO9001

After-sales Service Provided Overseas service center available

Specifications

low cost bga machine:
98% repairing rate
Teperature accuracy: about 2 degree
Double safety guard

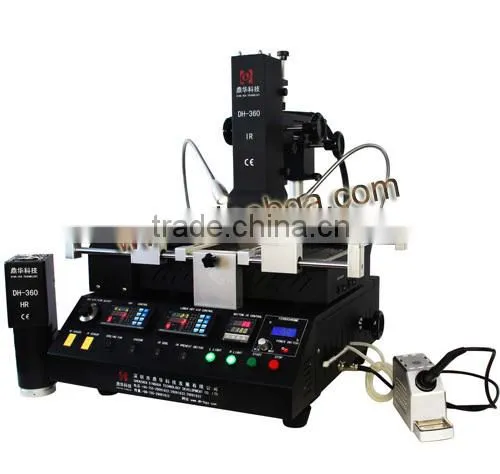

low cost bga machine 390

Picture:

Functions:

1. Two top heads: hot air / Infrared + soldering iron (80W) + Double shadowless LEDs + Top air speed adjusted function

2. Top head can move freely up/down, frontward/backward, rotation 360°.Lower heater can move up/down to keep distance.

3 With different size titanium alloy nozzles for top / lower heaters. Any size can be custom if needed.

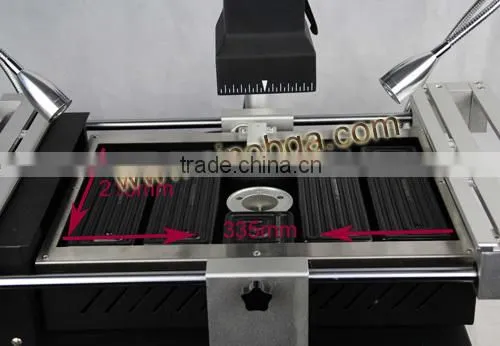

4. Movable pcb table with universal fixtures, suitable for all kinds of pcb repair

5. Right / left heater switch: when small pcb repair, turn off right/left IR plate to save power and energy.

6. Digital vacuum sucker, pick up bga chip conveniently after heating.

7. USB2.0 interface: system update / download temperature curve / connected with mouse.

8. 1pc temperature sensor: connected with sensor wire to detect actual temperature of solder ball and pcb, analyze and correct temperature difference.

9. Double safety guard: emergency stop function and Over heating guard ( All functions will be stop automatic if temperature over 300℃)

Warranty:

Three years warranty for heater wires of machine, one year warranty for other parts. life long free technical support.(two years longer then other companies.)

As we know, heaters are the main comsumable in the machine. Heater wires are offered free if it damaged in 3 years, other parts free in one year.

Our heater wires are imported from German, high quality and durable, enables us to offer a longer time warranty than other companies.

Precise temperature control:

Why our machine more accurate?

1) Our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature, but for most of BGA rework station from other companies, their PID grab frequency is 30ms, this is a big difference between 10ms and 30ms, that's why our machine is more accurate.

2) Our technicians must do heating testing for five spot for a long time: four corner and central. however, other companies only do it for central spot. So temperature accuracy of their machines will be on ±5℃, that will be lower successful rate of repairing.

Certifacation:

Package:

About us:
