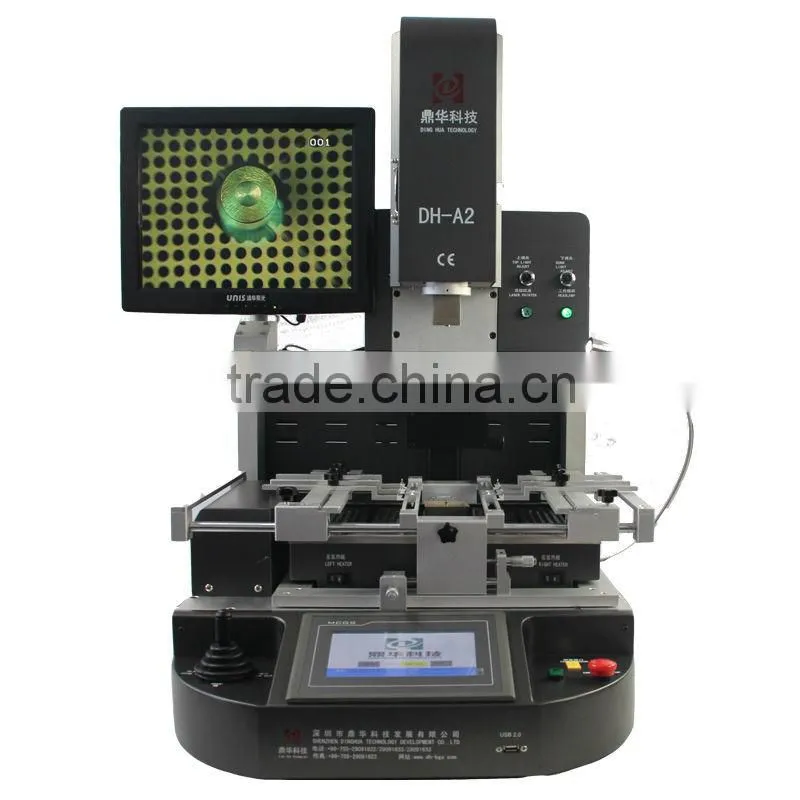

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine Quality Choice

Name: Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine Quality Choice
Brand: DINGHUA BGA Rework Station
SKU: 120897827
Availability: InStock

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine Quality Choice thumbnail-1

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine Quality Choice photo-1

US$ 1 - 1,300 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA BGA Rework Station

Model Number:

DH-A2

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DINGHUA BGA Rework Station

Model Number DH-A2

Voltage AC220V±10% 50/60Hz

Current 25A

Rated Capacity 5200W

Rated Duty Cycle 100%

Dimensions 560*530*590mm

Weight 70KG

Usage Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Tools

Certification CE ISO 9001 20008 RoHs

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Head and heater integrated designing.
2. Embedded industrial PC.
3. Powerful cross-flow fan.
4. CE ODM&OEM

Semi-auto BGA Rework Station DH-A2 Optical Alignment BGA Rework Machine

Specification:

Total Power	5200W
Top heater	1200W
Bottom heater	Second heater 1200W,IR preheating 2700W
power	AC220V±10% 50/60Hz
Dimensions	L600×W700×H850 mm
Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
Temperature control	K Sensor, Closed loop
Temp accuracy	±2°C
PCB size	Max 440×380 mm Min 22×22 mm
BGA chip	2X2-80X80mm
Minimum chip spacing	0.15mm
External Temperature Sensor	1(optional)
Net weight	70kg

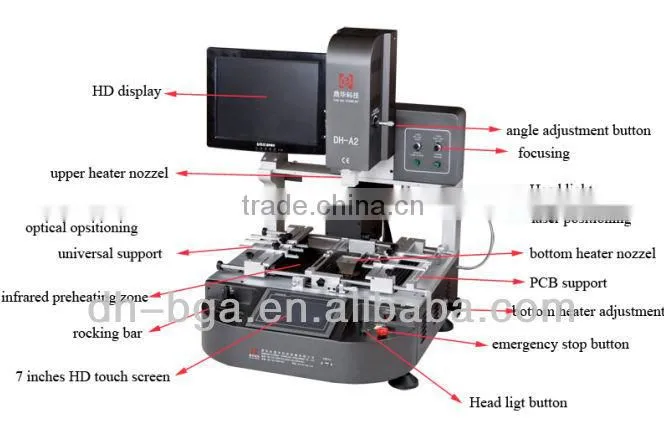

Structure:

Feature:

1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.

2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board

4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.

5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement

6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface

7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen

8.accurate and precise temperature control

9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.

10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.

11.CE certification, with emergency switch and automatic power-off protection device when emergency happens

Company profile

SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD is a professional manufacturer engaging in BGA Rework Station, Rework Tools and Associated Equipment’s design, production, sales and service. We commit ourselves to make the professional equipment, provide the high quality and perfect service for the customer. As one of pioneer in this line, we are improved and innovated constantly according to the market demands by absorbing the advanced development experience abroad and adhering to the enterprise motto of notion "professional. Honest, innovative and development, responsible.”

We firmly believe the business principle of ‘diligence and honest will be paid off’ Science and technology constitute a primary productive force. With mutual efforts. Leading has achieved the core temperature-control technology with related patents. At the same time, our products has covered 3 series: the high-grade, middle-grade and low-grade and the development and production is made from manual, semi-auto. Our market expanded into such fields' individual repair, factories, education, military, aeronautical and space. At the same time. We established the point-of sales and end service at home and abroad.

Your satisfaction be our pursue. Adhering to customer-centric, market oriented, our company will wholeheartedly provide first class products and high efficient services for customers with the continuously innovation. We expects to cooperate with you to create resplendence hand in hand

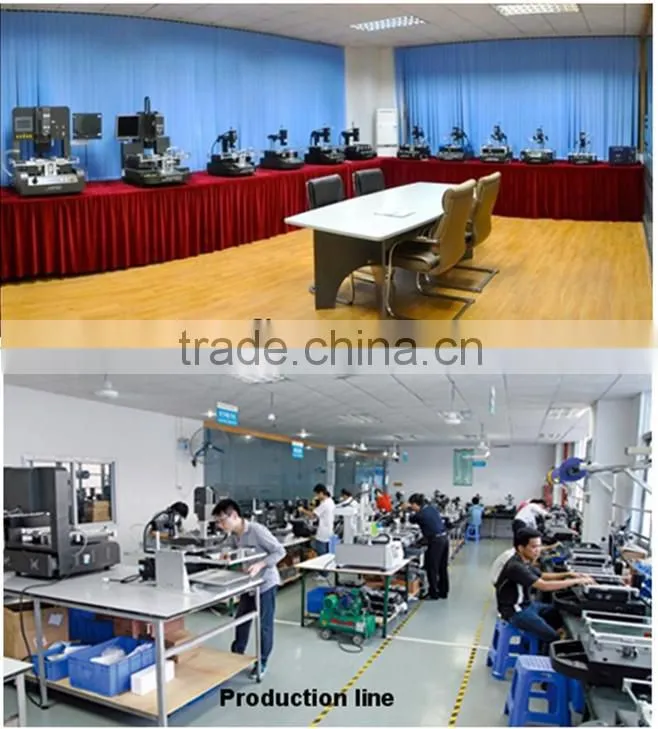

Company Scenery

More Photos about DH-A2

About Packing:

Packing list:

1, DH-A2 BGA rework station (touch screen) 1 set

2, Displaye 1 set

3, Vacuum sucker Pad 3 piece

4, DH-A1 specification(manual) 1 copy

5, Hot air nozzle 5 piece ( 31*31/38*38/41*41/34*34/55*55 )

6, Abnormity clip 6 piece

7, Blossom knob 6 piece

8, Supporting Screw 6 piece

9, External Temperature sensor 1 piece

Certification:

the products we sell one-year warranty.If you require technical support for any of your Bga rework station products, please contact our support team using the following details:

We always answer your questions: 24 hours a day, 7 days a week.
