Specifications
1. accurate movement 2.4 axis spot welding machine 3. automatic spot welding machine 4.various soldering method. 5. low cost
Welcome to Dinghua

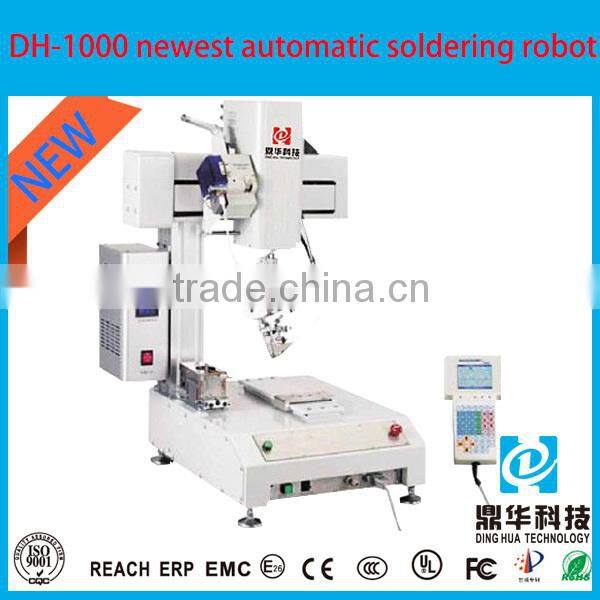

Dinghua DH-1000 automatic accurate movement spot welding machine
Parameters of spot welding machine DH-1000
| Model no. | DH-1000 |
| Removeble axils | 4 pcs (synchronous control) |
Range of removeble motion | |
| (X)280mm; available work range 200mm | |
| (Y)200mm; available work range 200mm | |
| (Z)50mm; available work range 50mm | |
| (R) ± 340°; available work range ± 340 ° | |
| Maximum movement speed (ptp) | (X) 500mm/sec |
| (Y) 500mm/sec | |
| (Z) 300mm/sec | |
| (R) 600 /sec | |
Repetitive accuracy | (X) ±0.01mm |
| (Y) ±0.01mm | |
| (Z) ±0.01mm | |
| (R) ± 0.02 ° | |
| Available saved soldering job program | 300 |
| Welding spot aoodinate data permitted in every job program | 625 |
| Total saved welding spot aoodinate data | 18750 |
| Setting independently soldering condition permitted in every job program | spot welding: 88 pcs; pull welding: 28 pcs; clean: 8 pcs |
| Control style | PLC Control |
| Control system | PTP Control, CP Control |
| Power | 220v |
| Air pressure | 4-5 kg cm2 |
| Maximum consumed power | 300w |
| Temperature range | -500 degree(room temperature) |
| Temperature control accuracy | ø0.3-1.6mm |
| Applicable tin | ±2°c |
| Maximum load bearing | ≤6kg |
| Applicable workpiece shape | plan, atraight line, 3D |
| Workpiece size(maximum) | 280mm(X axis) * 280mm(Y axis) |
Advantages of spot welding machine DH-1000
1. accurate movement in less than ±0.02 mm.Large information storage.
2. it can ensure the accuracy of mechanical repetitive motion less than 0.02 mm .
3. It can record the production information (welding production, solder spot quantity, welding time, total
welding time).
4 .Convenient for variety of programming model and features
5. Flexible and various soldering method, while support spot soldering welding and slide soldering welding at the same time.
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
