Specifications
1.Screen Repair machine2.Heating tube with temperatur controller
3.high efficiency
4.factory price

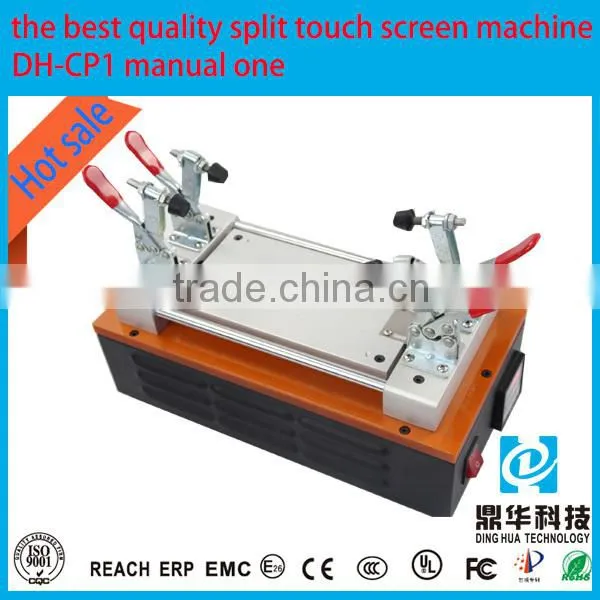

Screen Repair Machine LCD Separator Front Glass For iPhone 4 5 Samsung Galaxy
Products show:
Product Features:
1. Auto heating metal plate, maximum temperature is 400 centigrade
2. Safety power system inside, avoiding the electric leakage problem
3. Anti static body material, prevent the LCD and the flex cable being damaged from the static
4. Easy installation
5. 4 stronger arms to press the touch screen glass on the plate
6. Smooth metal plate to hold the touch screen without any damaged
7. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhone and galaxy series…
8. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform
9. Compatible for LCD or LED screen assembly
How to use:
Step 1 | Put your LCD with touch screen on the metal plate, LCD side above |
Step 2 | Set the 4 arms to keep the touch screen on the metal plate stably |
Step 3 | Turn on the machine and wait for the metal plate become 80-100 degree |
Step 4 | Start to separate the LCD off the glass with a core, then right and left movement with the core in between the LCD and the glass, please notice you must using gentle power and keep the core stay on the LCD surface, so that it will avoid the touch screen be damaged |
Step 5 | Finally you will find yourself do a good job; now start to get a well pay business!! |
Note:
1. Do not produce the heat more than 110 degree when operating; otherwise the high temperature may destroy the phone accessories
2. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice; please choose the right one which meets your country's voltage standard
Should you have any request and query, please feel free to contact me. Your inquiry will get our quick attention. Thank you!
