Help CenterShandong Xinhe High Speed 1500m/min Crescent Former Tissue Paper Machine
Related Products
-
High Working Speed With 1500m/min Crescent Former Tissue Paper MachineUS$ 100,000 - 220,000MOQ: 1 Set -
CTM 3600 -1200 Crescent Former/ Fourdrinier Paper Making MachineUS$ 180,000 - 260,000MOQ: 1 Set
-
CTM 3600 Crescent Former/ Fourdrinier Paper Making MachineUS$ 180,000 - 260,000MOQ: 1 Set
-
CTM 3600/550-35TPD Crescent Former/ Fourdrinier Paper Making MachineUS$ 180,000 - 260,000MOQ: 1 Set
-
Fourdriner Type Tissue/ Toilet Paper Making MachineUS$ 100,000 - 220,000MOQ: 1 Set
1. High speed and output
2.less consumption and energy saving
3.PLC control
4. easy to operate
Paper machine main parameters:
| Paper product | facial tissue,napkin tissue,toilet tissue etc |
| Basis weight | 13-26gsm |
| Trimme paper width | 2850mm |
| Working speed | 1500m/min |
| Driving speed | 1600m/min |
| Dynamic balance speed | 1800m/min |
| Transmission | AC frequency sectional drive |
| Max. roll diameter | 1800mm |
| Total power | 380-430kw |
| Wire width | 3046mm |
| Felt width | 3140mm |
| Nominal capacity | 60-100t/d |
| Dimension | 23000*10000*7800mm |
Picture of CPM:

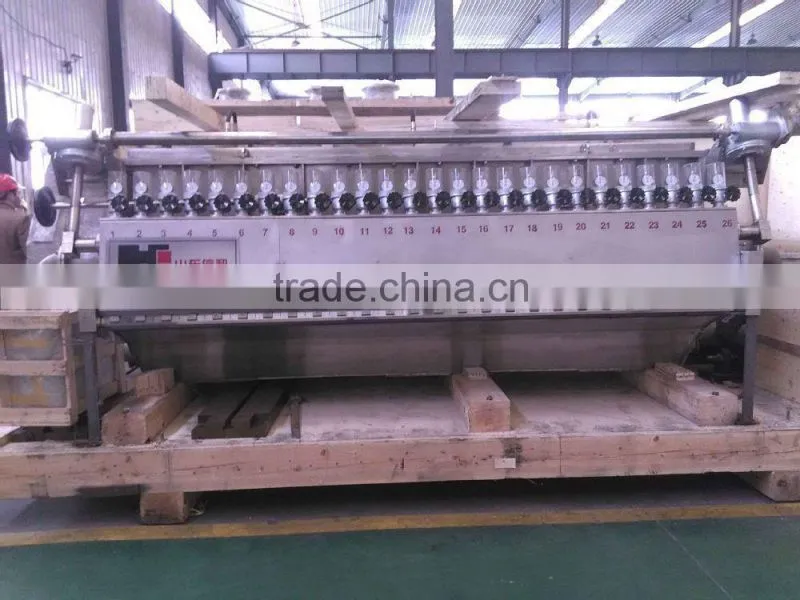

1. Headbox
2. Steel Yankee Dryer:

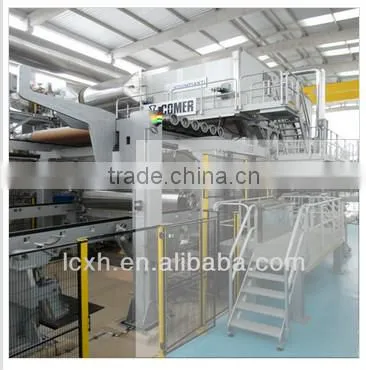

3. Machines:

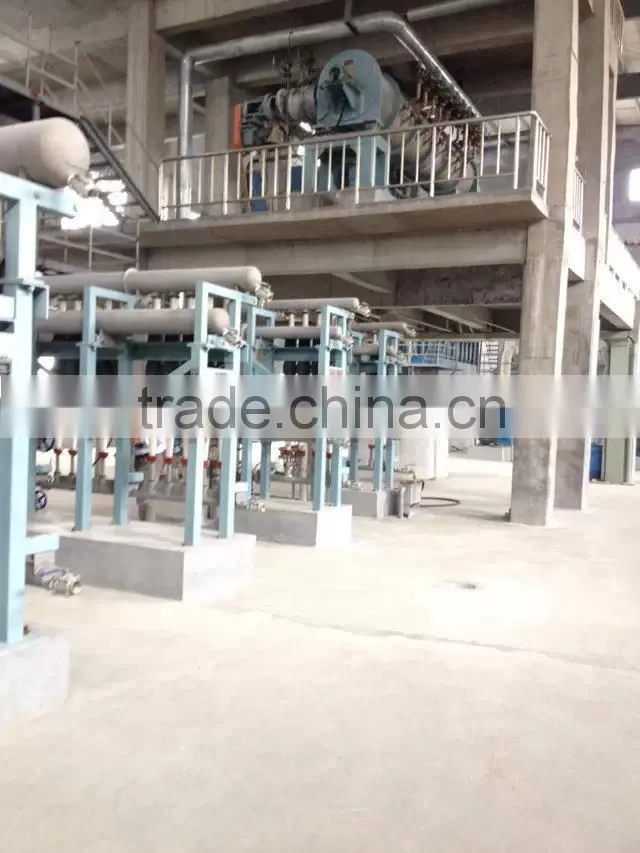

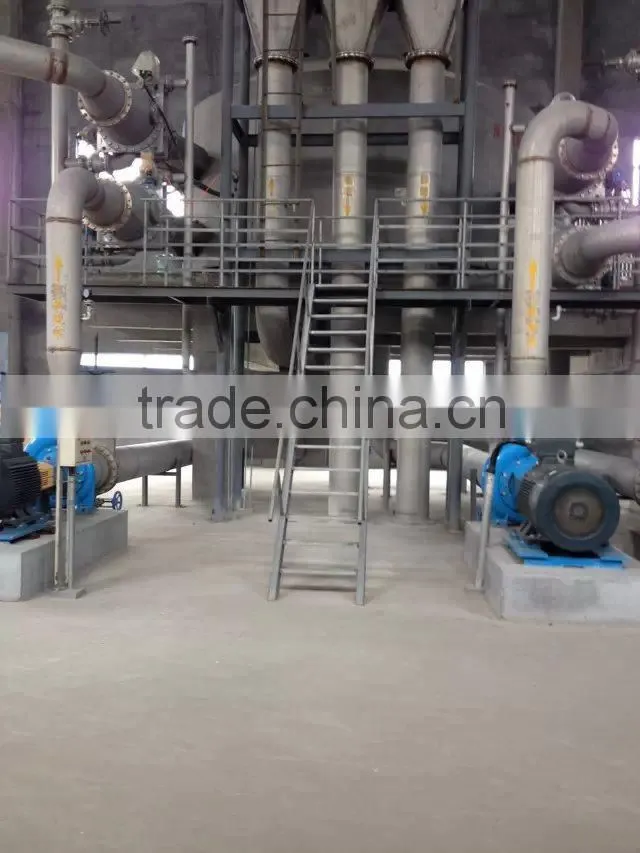

4. Working machines:

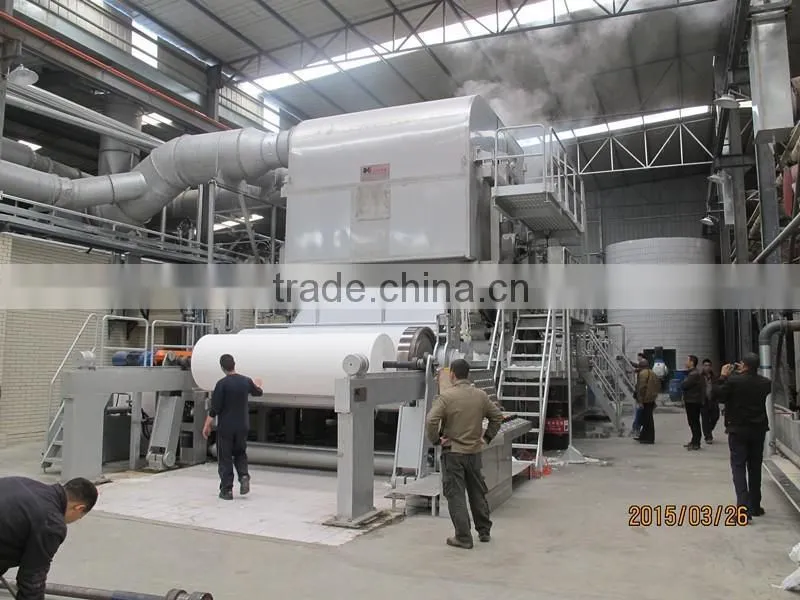

Tissue machine for making toilet tissue, facial tissue, napkins, kitchen towel, hand towel, etc.
This year we will have three 2850-500 crescent former tissue paper making machine whole line from 2850-500 crescent former tissue paper making machine to Stock preparation line ( one is virgin pulp for IRAN, one is waste recycle & virgin pulp for Uzbekistan, one waste paper for Algeria ) and then Rewinder and slitting machine also with the auxiliary equipment etc.
2850-500 Crescent Former Tissue Machine
The 2850-500 Crescent Former tissue machine family, combining the Cyber Flow single-layer/multi-layers hydraulic headbox, the CyberFormer crescent former and the CyberDry steel shell Yankee/cast iron Yankee, are designed to suit the most critical quality requirements for producing tissue paper grades.
Features of 2850-500 machine
1.First class technology for tissue machine
2.High efficiency, low power consumption
3.Excellent fiber dispersion and formation
4.Low space requirements compared to a tissue machine with fourdrinier wire
5.Ease of access for cleaning and maintenance purposes
6.Applied for various materials, such as virgin pulp, bamboo pulp, bagasse, straw pulp, recycled paper and de-inked pulp, etc.

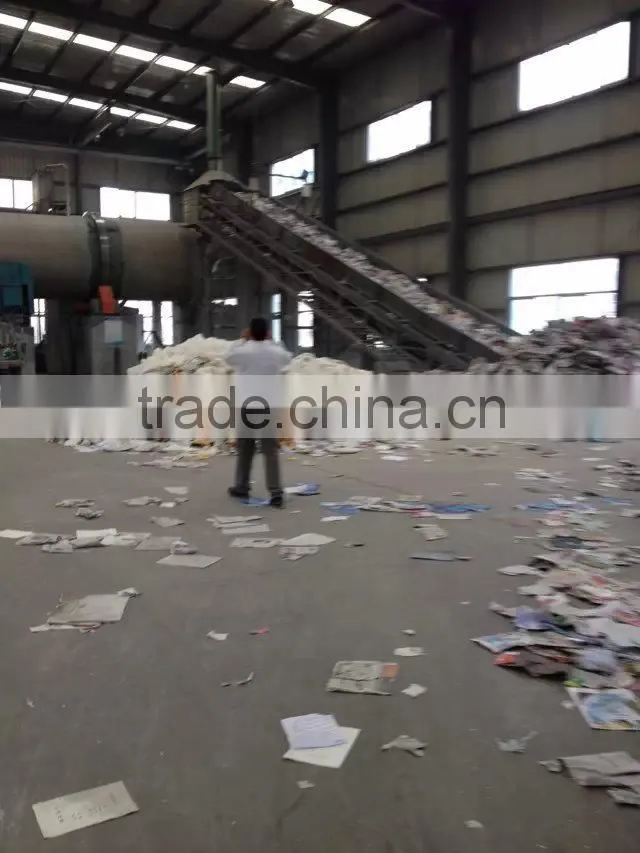

Waste paper recycling paper mill site photos:
Turn-key Projects and Auxiliary Systems
We can integrate the Tissue Machine with a very deep experience in stock preparation supplying projects on the Turn-Key basis.
The Auxiliary systems that could be included in the projects are:
- Slitter Rewinder
- Approach Flow System
- Steam and Condensate System
- Vacuum System
- Compressed Air System
- Overhead Cranes
- Electrical Control
- DCS and QCS
- Fiber Recovery System
- Water Treatment System
- Chemical Dosing System
Stock Preparation including:
- Deinking Line
- OCC Line
- Virgin Pulp Line
- Broke Line
Our Turnkey project assembly parts :
Our Services
1.Customized projects and complete production lines designed according to customer needs.
2.Modification of existing machines with solutions to satisfy customer needs.
After-sale Service
1.The machine will be fully pre-erected at Xinhe workshop with complete on-mahine pre-piping in order to minimize mill site erection timing.
2.The machine can be supplied with the accessories using first class components.
3.We shall provide the G.A. drawing, foundation drawing and layout drawing after receiving the advance payment.
4.We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.
5.Performance and Mechanical Guarantee shall be provided for 1 year from the successful commissioning or 1.5 years from the date of Bill of Lading.
