Specifications
semi-automatic separator machinenewest equipment
touch pannel digital
repair touch screen
newest desgin equipmement
LCD Refurbishment and Repair Tools for Mobile Phone LCD Touch Screen
- Applicaton: Suitable for the touch screen after laminating touch ot cover board from the LCD need to tear open come down to repair productors
- Free gift: 6000m gold plated steel wire, some small tools, make the operation convenient and easily
- Can break up the glue(OCA) at the same time, and water-binder (LOCA) products
- After dismantling ITO and LCM may continue to use after cleaning
- No noise, economical and practical, greatly reduce the production cost
- With motor drive, speed and temperature are adjustable, quite convenient
- Fast, high efficiency, and easy operation
- Product size range: 3.5-5.5 inch (according to different replaceable clamp product)
- Electrical control system: The machine operation is manual, involves heating process, Uses the PLC as the central processor, execute component adopts imported electrical components as the main control components such as: temperature control table, thermocouple, according to the technological requirements.
- Note 1. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice, please choose the right one which meets your country's voltage standard; if you have any questions, please feel free to contact us
- Note 2. Please see the technical parameters on the 9th picture of this productor
Operating Instruction:
- Turn the power switch on.
- Turn the temperature controller on, and set the temperature between 60 and 80 degree.
- Wind wire on the rollers.
- Fix the wire on the roller of the left side motor. Wind the wire from top to bottom, then adjust the steering button to up position. Go on winding wire bypass the front two rollers. Then turn on the rotary switch. Wind the wire about 3-5m, turn off the rotary switch.
- Pull the wire tight, and wind the wire from bottom to top, then fix the other end on the roller of the right side motor. Adjust the steering button down. After the wire rotary half on the wheel, turn off the rotary switch. Finally, adjust the steering button to horizontal position.
- Adjust the motor from the top of the skidway about 2 cm.
- Put the LCD on the operating floor.
- Adjustment the wire and heating stage on the horizon, then turn the automatic mode on. Adjust the proper speed, keep the wire and screen certain radian. Slowly push heating stage by hand.
- When reach the end of the LCD assembly, quickly push the heating stage back and forth 2 times. After finishing the separation, just separated the lcd and touch panel by hand.
- Adjust the rotary switch to the low position, and trun off other buttons, finally trun off the power switch.
- Note: Adjust the steering button up, the machine will run clockwise; Adjust the steering button down, the machine will run anticlockwise; horizontal position will not run.
Compatible with:
- 3.5-5.5 inch LCD display cellphone: iPhone 4 4S 5, Samsung, HTC, Sony etc.

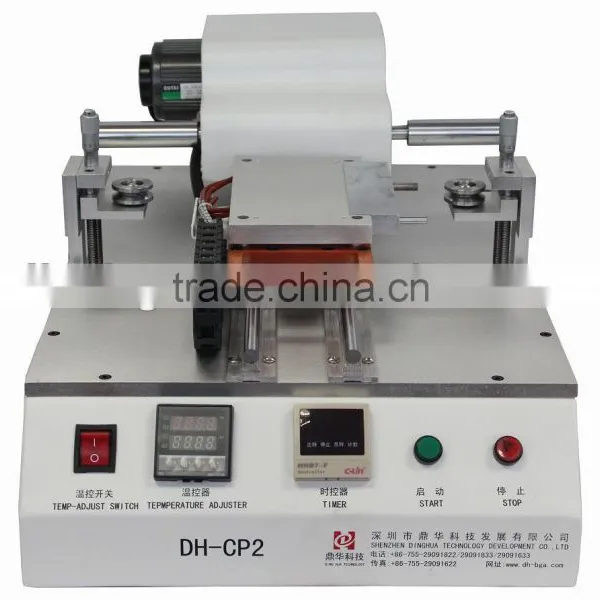

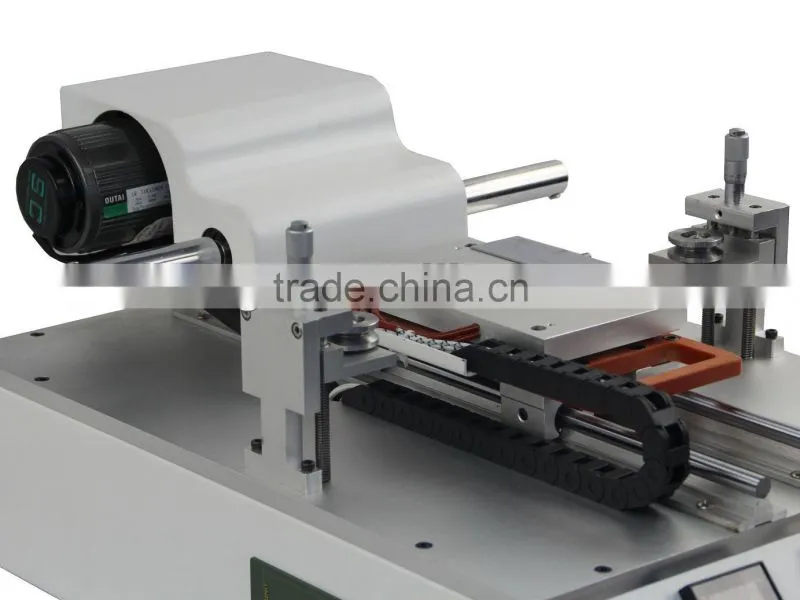

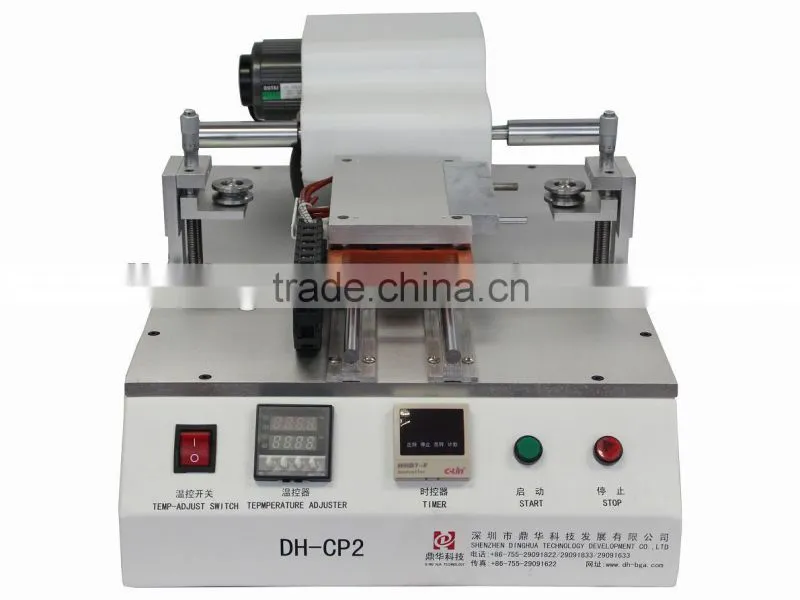

More photo about DH-CP2
About our factory
we are a professional manufacturer and supplier of bga rework stion in Shenzhen, China. Our product covers BGA rework station, welding rework tools and associated equipments, engaging in design,production, sales and service for more than 5 years.
Why are we?
1, Well-equipped manufacturing facility.
2,Professionalism innovative R&D team, provide professional service for bga rework station solution.
3,Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4,International quality standard range,all our product have got the CE, ISO 9001 20008,Rohs approval.
6,Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on. Generally goods can be ready in 7 days after the receipt of the payment.
7,We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, life long technical support.
