Specifications
1.Mobile Phone Repairing Machine for LCD Digitizer Glass Fast Refurbishing2.separation machine
3.Auto heating metal plate

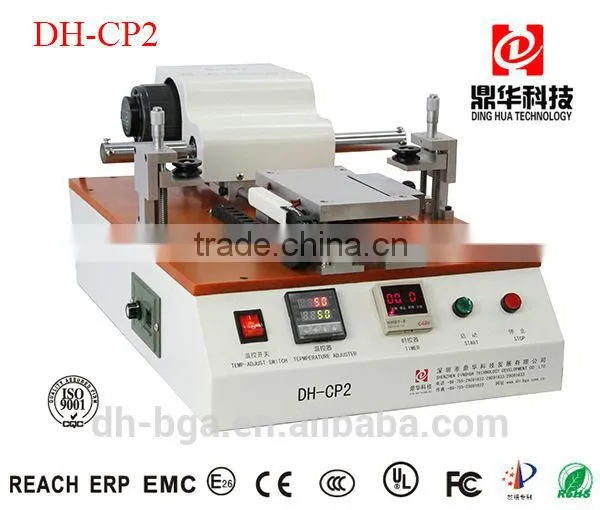

The Best Mobile Phone Repairing Machine for LCD Digitizer Glass Fast Refurbishing
Tips:
1. Do not produce the heat more than 110 degree when operating; otherwise the high temperature may
destroy the phone accessories
2. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice;
please choose the right one which meets your country's voltage standard
Products specifications:
1.Power: 500W
2.Voltage: 220V and 110V are available
3.Size: 550*350*280mm
4.NW: 19KG
5.GW: 22KG
6.Packing: carton size: 630*460*380mm
Products features:
1.Auto heating metal plate,maximum temperature is 400 centigrade.
2.Power supply AC 85V to AC 265V 50Hz ,almost for users from all over the world.
3.Product size range: 3.5-5.5 inch (according to different replaceable clamp product).
4.Electrical control system:uses the PLC as the central processor, execute component adopts imported electrical components as the main control components such as: temperature control table, thermocouple.
5.With motor drive, speed and temperature are adjustable, quite convenient, high efficiency, and easy operation.
6.No noise, economical and practical, greatly reduce the production cost.
7.Safety power system inside, avoiding the electric leakage problem
8.Anti static body material,prevent the LCD and the flex cable being damaged from the static
9.Easy installation
10.Smooth metal plate to hold the touch screen without any damaged
11.Temperature should be set to 80 centigrade to 100 centigrade,when you do the job on iphone and galaxy series etc.
12.Compatible for LCD or LED screen assembly
13.10m last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform.
Operating Instruction:
1.Turn the power switch on.
2.Turn the temperature controller on, and set the temperature between 60 and 80 degree.
3.Wind wire on the rollers.
4.Fix the wire on the roller of the left side motor. Wind the wire from top to bottom, then adjust the steering button to up position. Go on winding wire bypass the front two rollers. Then turn on the rotary switch. Wind the wire about 3-5m, turn off the rotary switch.
5.Pull the wire tight, and wind the wire from bottom to top, then fix the other end on the roller of the right side motor. Adjust the steering button down. After the wire rotary half on the wheel, turn off the rotary switch. Finally, adjust the steering button to horizontal position.
6.Adjust the motor from the top of the skidway about 2 cm.
7.Put the LCD on the operating floor.
Details:
Our company:
Certification:
The products ( The Best Mobile Phone Repairing Machine for LCD Digitizer Glass Fast Refurbishing ) warranty for one year.And the heating wire for three-years warranty.Our technical support for the whole life.
