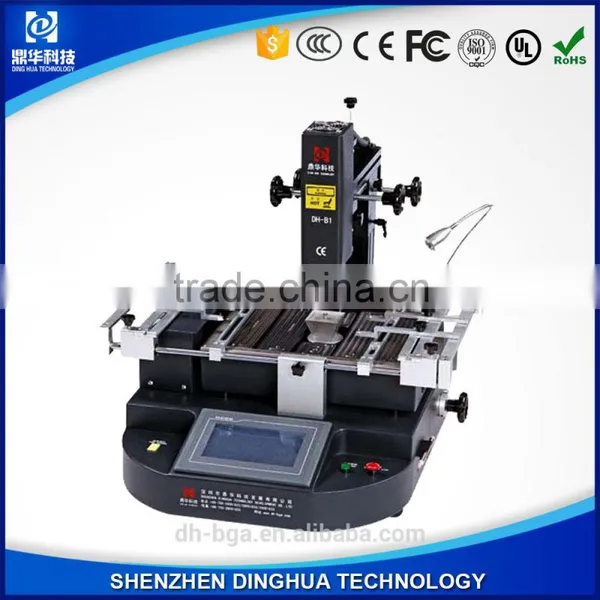

Mobile phone laptop repair machine bga reball machine DH-B1
Specification:
Total Power |
4800W |
Top heater |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Power |
AC220V±10% 50Hz |
Lighting |
Taiwan led working light, any angle adjusted. |
Operation mode |
Drawer style HD touch screen, intelligent conversational interface, digital system setting |
Storage |
50000 groups |
Top heater movement |
Right/left, frontward/backward, rotate freely. |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 440×390 mm Min 22×22 mm |
BGA chip |
2x2 mm - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
610*620*560mm |
Net weight |
36KG |
B1 Main Features:
HD touch screen interface, PLC control.
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
Moveable heater, easy to operate.
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
Safety protection, with emergency switch and automatic power-off protection device when emergency happens
Accessories:
Our service:
Shipping and packing
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
HOW TO ORDER
1.Tell us which model,quantity you need to order
2.We will make PI for your order
3.After PI confirmation, we will send the goods to you ASAP when we get your payment
4.Send the tracking number to you until you get your goods
Certifications :
Company show:
Our customer:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
