Specifications
1.LCD Digitizer & Touch Screen Separator Machine2.separation machine
3.Auto heating metal plate

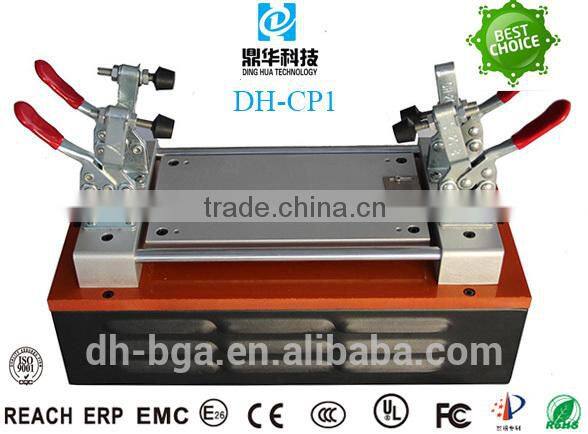

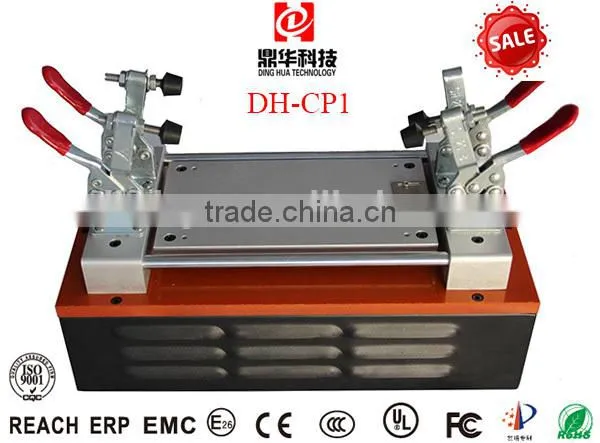

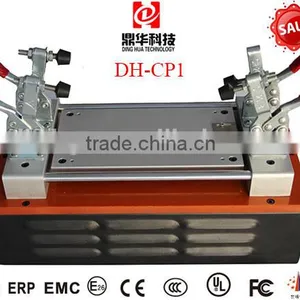

Hot Sale LCD Digitizer & Touch Screen Separator Machine DH-CP1
Tips:
1. Do not produce the heat more than 110 degree when operating; otherwise the high temperature may
destroy the phone accessories
2. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice;
please choose the right one which meets your country's voltage standard
Power supply voltage |
110V and 220V are available |
Power |
500W |
Machine size |
About 32*17*21cm |
Heating plate |
19*10cm |
NW |
About 5kg |
GW |
About 8kg |
Packing size |
About 40*30*22cm |
Products features:
1. Auto heating metal plate, maximum temperature is 400 centigrade.
2. Safety power system inside, avoiding the electric leakage problem.
3. Anti static body material, prevent the LCD and the flex cable being damaged from the static
4. 4 stronger arms to press the touch screen glass on the plate
5. Smooth metal plate to hold the touch screen without any damaged.
6. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high
temperature platform
7.K-type thermocouple, close-loop control, stable thermostat
8. Easy installation, fast thermal transmission, high repair efficiency
9.Compatible for LCD or LED screen assembly
10.CE approved
Operating Instruction:
1.Put your LCD with touch screen on the metal plate, LCD side above
2.Set the 4 arms to keep the touch screen on the metal plate stably
3.Turn on the machine and wait for the metal plate become 70-100 degree
4.Start to separate the LCD off the glass with a core, then right and left movement with the core in between the
LCD and the glass, please notice you must using gentle power and keep the core stay on the LCD surface,
so that it will avoid the touch screen be damaged
5. Finally you will find yourself do a good job.
Details:
Suitable for:
Our company:
Certification:
Warranty:
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
Our service:
a. Your inquiry related to our products or prices will be replied within 24hours.
b.Be Well-trained and experienced to answer all your enquires in fluent English
c. OEM&ODM, any your request we can help you to design and put into product.
d. Distributors are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
We always answer your questions: 24 hours a day, 7 days a week.
