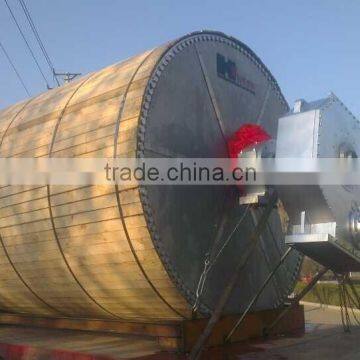

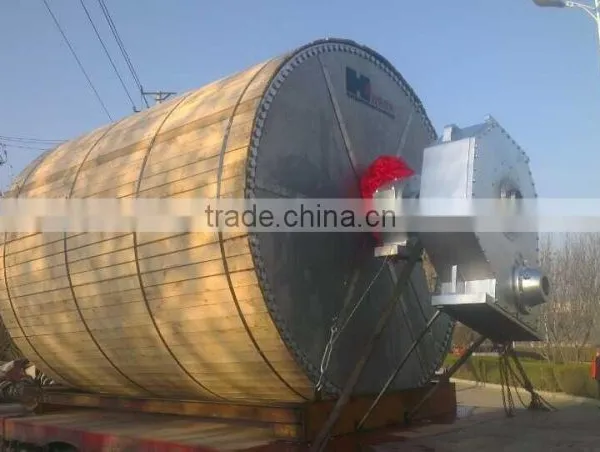

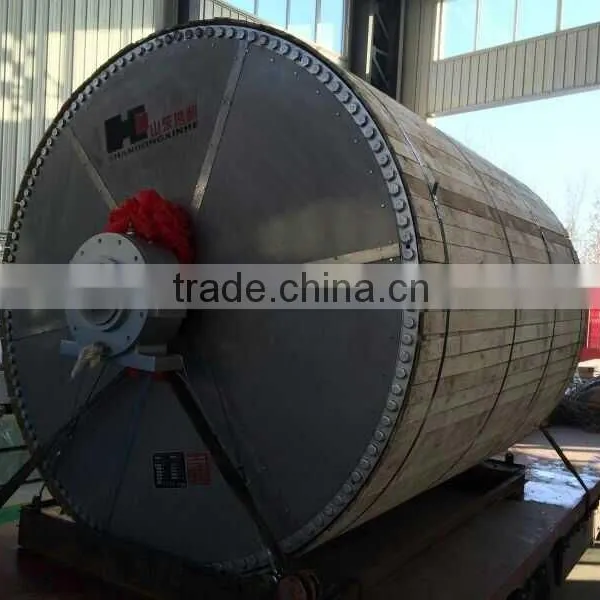

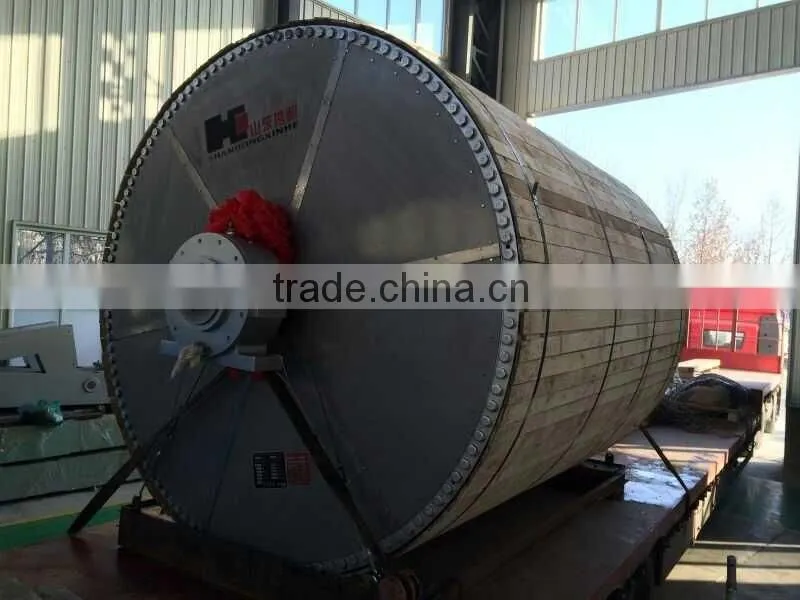

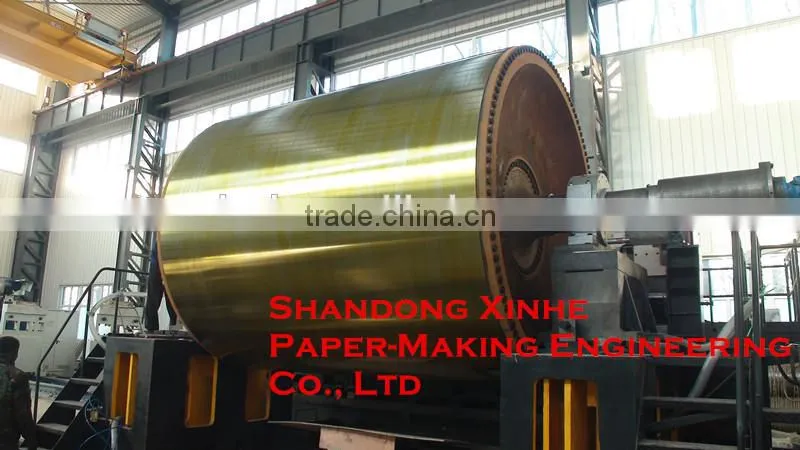

Help CenterDiameter 3000* Shell Width 3100 Steel Yankee Dryer
Related Products
-
Shandong Xinhe Dia2500-5500mm Steel Yankee Dryer for Paper MachineryUS$ 150,000 - 250,000MOQ: 1 Set -
Dia3600mm Steel Yankee Dryer Made by Shandong Xinhe and Italian Comer S.P.A.US$ 100,000 - 200,000MOQ: 1 Set
-
Diameter2500-5500mm Steel Yankee Dryer for Paper Making MachineryUS$ 100,000 - 200,000MOQ: 1 Set
-
Completely Home-made Steel Yankee Dryer by Shandong XinheUS$ 150,000 - 250,000MOQ: 1 Set
-
Steel Yankee Dryer for Paper Machinery Made by Shandong XinheUS$ 200,000 - 300,000MOQ: 1 Set
1. SGS, CE, ISO9000
2. Chinease foreign cooperative technology
3.China biggest manufacture workshop
4. Excellent reliable quality
Specifications:
1.Greater thermic exchange efficiency
2.Increased operational security
3.Low comparative investment and operational cost
Steel Yankee dryer made by Shandong Xinhe and Italian Comer S.P.A.
1.Main Parameters
| Interior shell design |
grooved with rectangular ribs and turbulence spoiler clips |
| nominal diameter | 2500-5500mm |
| shell length | 3200mm |
| max. paper width on the dryer | 2900mm |
| design speed | 1600m/min |
| max. linear load | 90n/mm |
| operating pressure (gauge) | 10bar |
| shipping weight | 40t |
| steam entry | front side |
| condensate exit | drive side |
Main features
Model: Cyber Dry- Steelshell
Type:Steel shell with bolted nodular cast iron heads, forjed journals
Yankee diameter: Φ2500-Φ5000mm
External shell surface:metallized
Internal shell surface:Groved spoiler bars
Metallization thickness: 0.75mm
Metallization hardness:55 HRC
Maximum steam pressure: 10 bar
Pressure vessel Code: A.S.M.E/PDE. China type/ pressure vessel

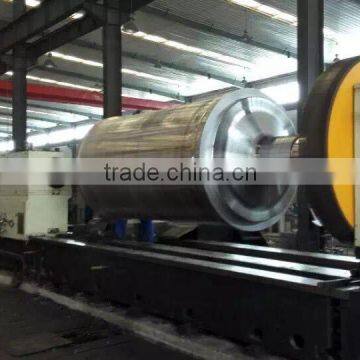

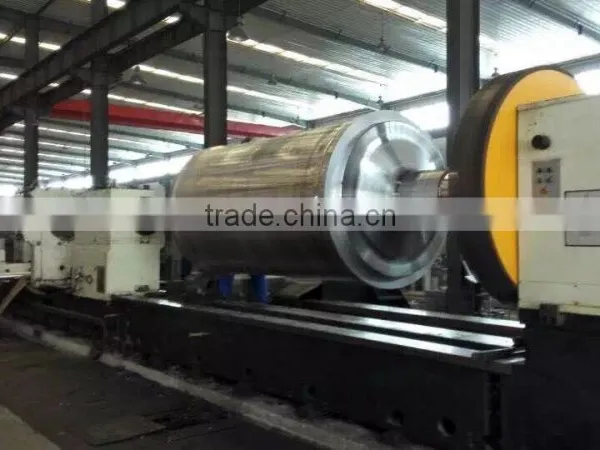

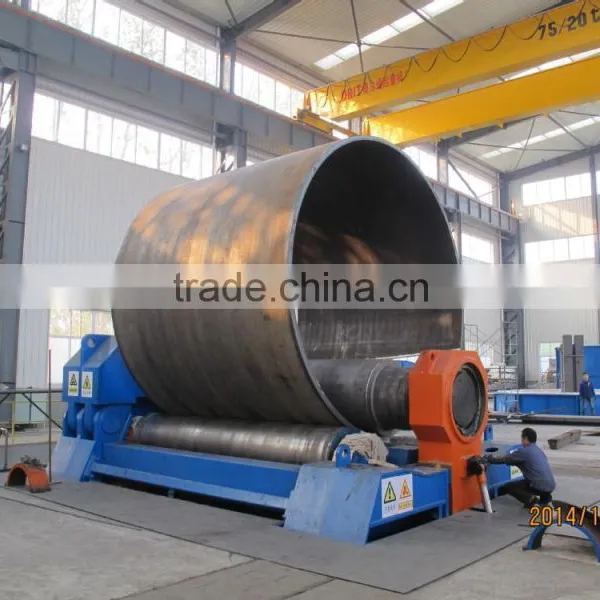

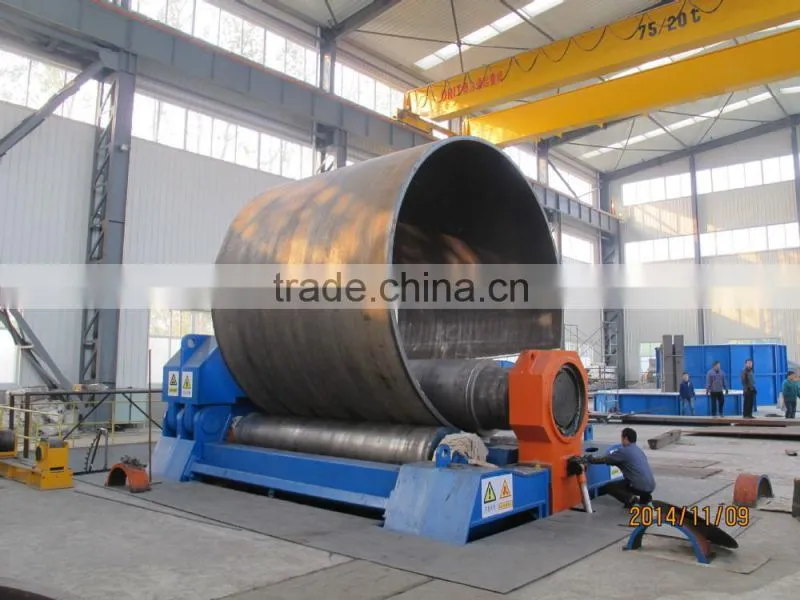

We have the biggest Steel Yankee Dryer workshop in China, we welcome you come to pay a visit.
2.Brief Introduction:
Shandong Xinhe Paper-making Engineering is one of the few suppliers of Steel Yankee Dryer in domestic.In March 2012,Xinhe was authorized as the sole agent in China by Comer S.P.A.,which has been excellence in paper technology for over 50 years.The market including:pulp preparation line and accessories,paper-making machine(whole line)and accessories,Steel Yankee dryer,Crescent former CTM12 and CTM15,papermachine rebuild etc.Now with the advanced technology from Comer S.P.A.,Xinhe is faithfully in serving the clients with high quality paper-making equipments.
More details please contact with :
Tel:+8618265537767 Skype:sunnywang21
