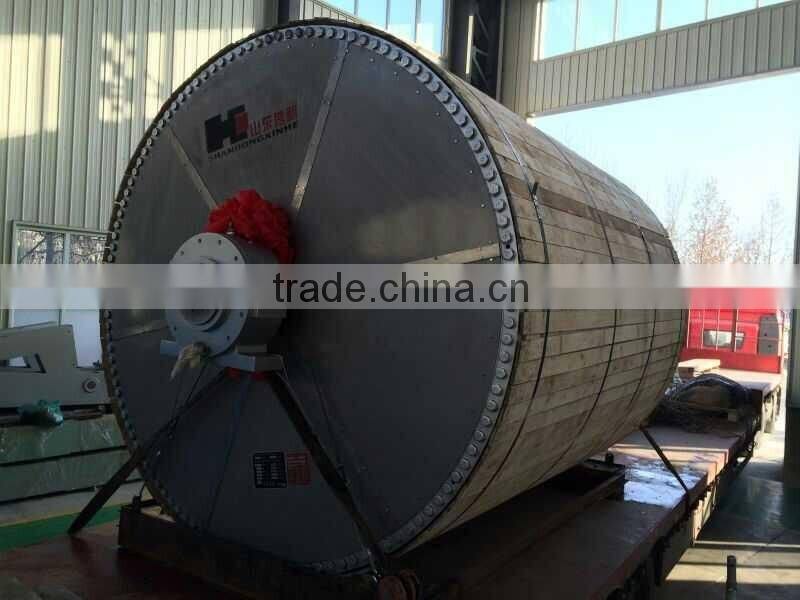

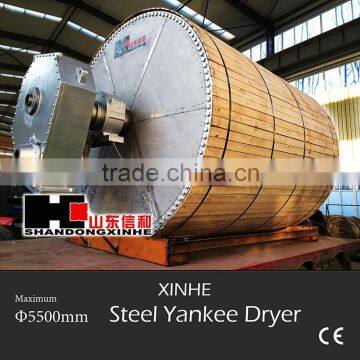

Help CenterShandong Xinhe Steel Yankee Dryer With Diameter 5m
Related Products
-
Diameter 5000mm Steel Yankee Dryer by Shandong Xinhe Paper MachineryUS$ 10,000 - 60,000MOQ: 1 Set -
Most Safety Diameter 3660mm Steel Yankee Dryer for Paper Making MachineryUS$ 100,000 - 200,000MOQ: 1 Set
-
Shandong Xinhe Steel Yankee Dryer for Paper MachineryUS$ 150,000 - 250,000MOQ: 1 Set
-
4500*3600 Steel Yankee Dryer for Tissue Paper Making MachineUS$ 15,000 - 65,000MOQ: 1 Set
-
Steel Yankee Dryer With Diameter 3000* Shell Width 3100US$ 10,000 - 60,000MOQ: 1 Set
1. SGS, CE, ISO9000
2. Chinease foreign cooperative technology
3.China biggest manufacture workshop
4. Excellent reliable quality
Specifications:
1. SGS, CE, ISO9000
2. Chinease foreign cooperative technology
3.China biggest manufacture workshop
4. Excellent reliable quality
5.Greater thermic exchange efficiency
6.Increased operational security
7.Low comparative investment and operational cost
Steel Yankee dryer made by Shandong Xinhe and Italian Comer S.P.A.
A. Steel Sheel
B. Diamaeter: Φ2500-5500mm (Φ2500, Φ3600, Φ4200, Φ4500, Φ4800,Φ5500 etc)
C. Authentication: CE & ASME & SGS & PED & CSEI.
D. Internal Surface: Grooved or Plain (Optional)
E. Spoiler Bars: Optional
F. Testing Pressure: 10Bar
1.Main Parameters
| Interior shell design |
grooved with rectangular ribs and turbulence spoiler clips |
| nominal diameter | 2500-5500mm |
| shell length | 3200mm |
| max. paper width on the dryer | 2900mm |
| design speed | 1600m/min |
| max. linear load | 90n/mm |
| operating pressure (gauge) | 10bar |
| shipping weight | 40t |
| steam entry | front side |
| condensate exit | drive side |
Main features
Model: Cyber Dry- Steelshell
Type:Steel shell with bolted nodular cast iron heads, forjed journals
Yankee diameter: Φ2500-Φ5000mm
External shell surface:metallized
Internal shell surface:Groved spoiler bars
Metallization thickness: 0.75mm
Metallization hardness:55 HRC
Maximum steam pressure: 10 bar
Pressure vessel Code: A.S.M.E/PDE. China type/ pressure vessel

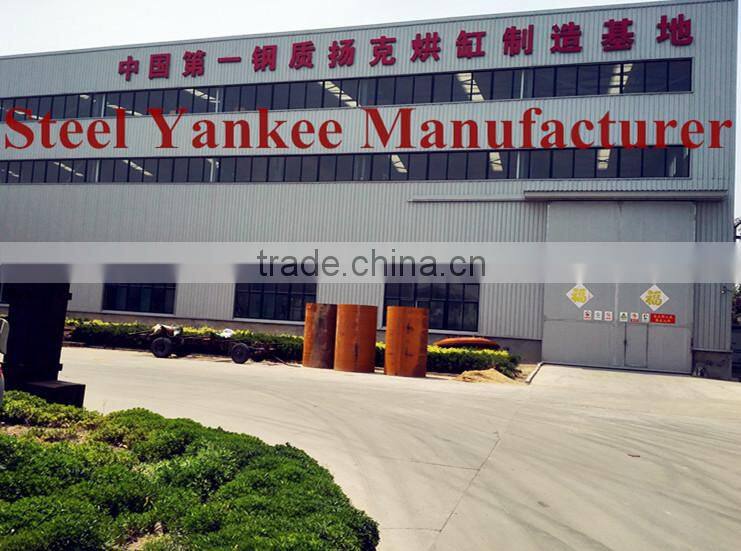

We have the biggest Steel Yankee Dryer workshop in China, we welcome you come to pay a visit.
Steel Yankee Processing Steps

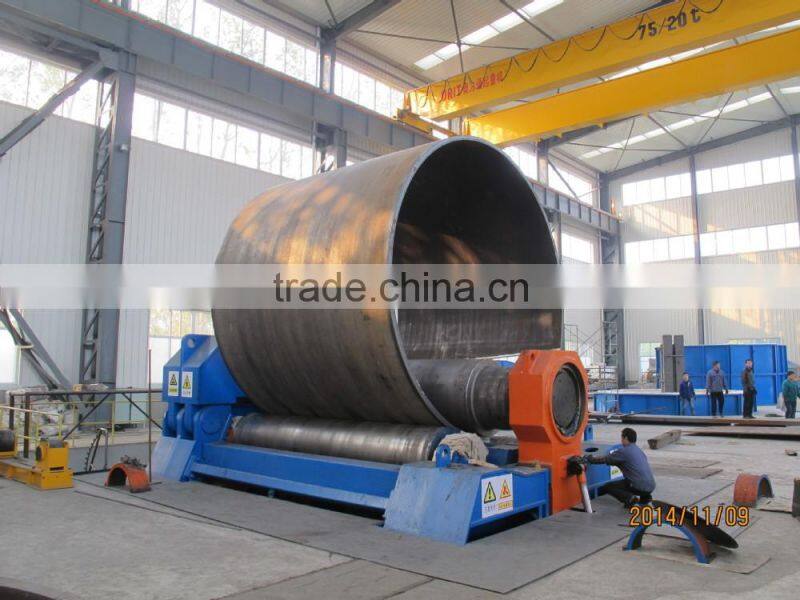

1. Winding Machine

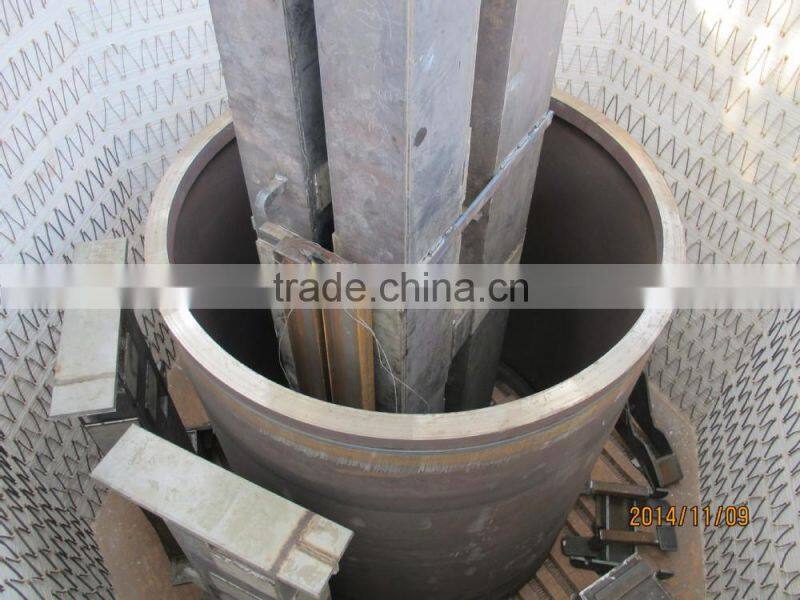

2. Aging Furnace

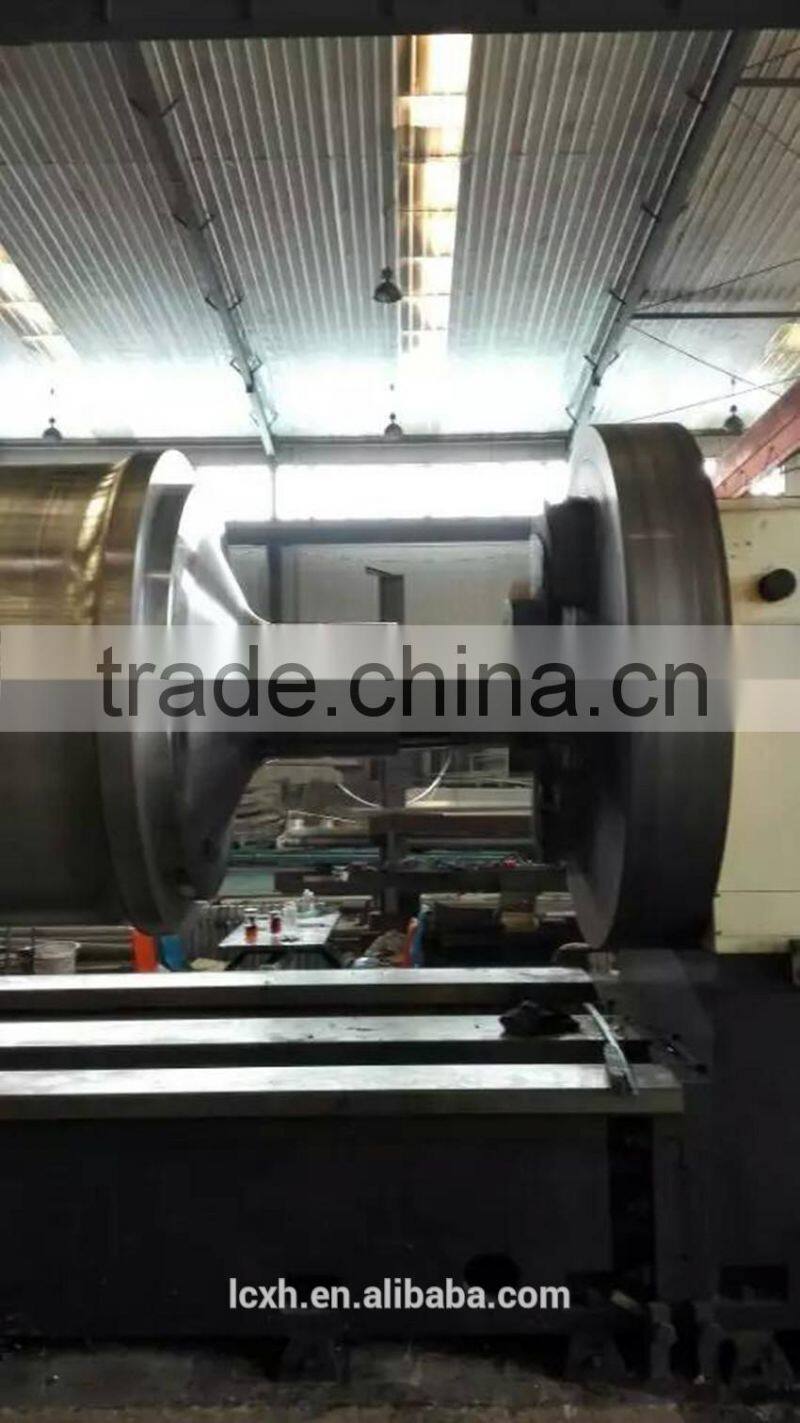

3. Dynamic Balance:

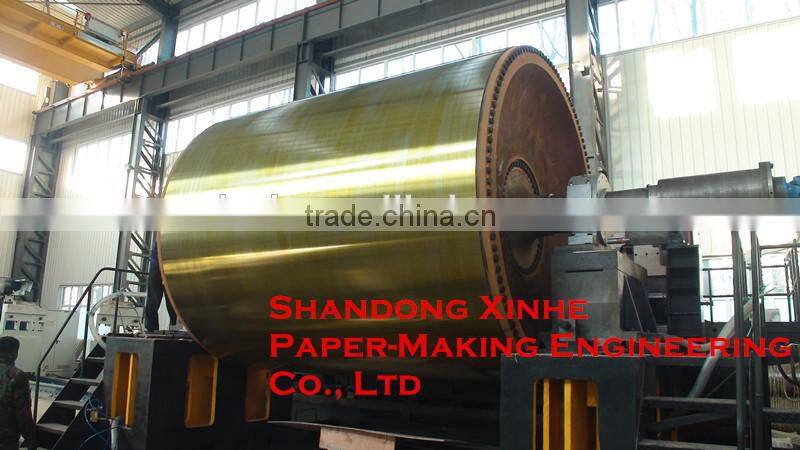

Waitng for Coating:
2.Brief Introduction:
Shandong Xinhe is a professional paper machinery manufacturer that is able to design and produce steel Yankee dryers with high production standards and strict quality controls. Shandong Xinhe owns the ability to manufacture steel Yankee dryers of different diameters, which include Φ2500, Φ3600, Φ4200, Φ4500, Φ4800,Φ5500 (mm), with various engineering standards such as European CE, SGS, PED, ASME, etc. The internal surface can be grooved and spoiler bars can be added. The testing pressure is 10 bar.
More details please contact with :
Tel:+8618265537767 Skype:sunnywang21
