Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830

Name: Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830
Brand: DINGHUA BGA Rework station
SKU: 120891383
Availability: InStock

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-1

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-2

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-3

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-4

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-5

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 thumbnail-6

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-1

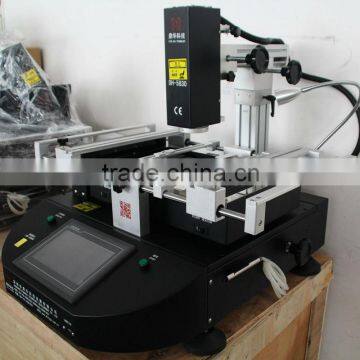

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-2

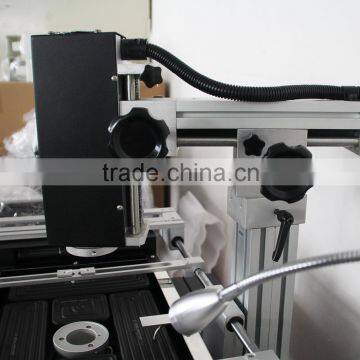

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-3

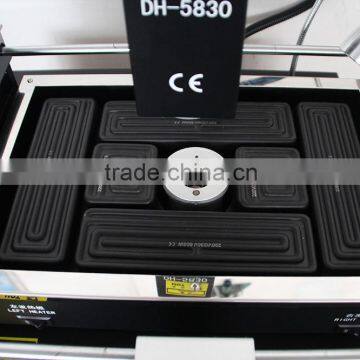

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-4

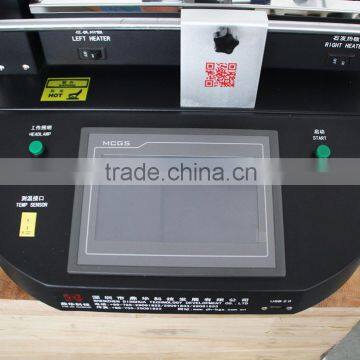

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-5

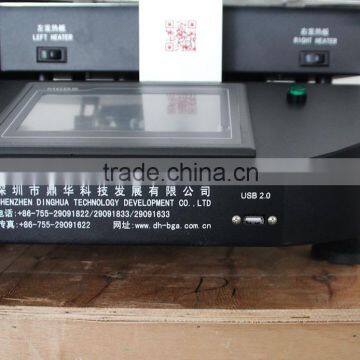

Dinghua Hot Air Bga Chip Repair Machine for Motherboard DH-5830 photo-6

US$ 1 - 900 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA BGA Rework station

Model Number:

DH-5830

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DINGHUA BGA Rework station

Model Number DH-5830

Voltage 220Vd10%, 50-60HZ

Current 20A

Rated Capacity 4800W

Rated Duty Cycle 100%

Dimensions L535xW650xH600

Weight 35KG

Usage bga chip repair machine for motherboard

Certification CE ISO 9001 20008

After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua Hot Air bga chip repair machine for motherboard DH-5830

DH-5830 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

1. Durable and thick material used, Human-design, top head can move frontward / backward, right / left, rotate freely.

2. Bottom Large size Infrared pre-heating zone, prevent pcb from deformation when heating bga.

3. With vacuum sucker, pick and place bga chip conveniently when heating.

4. Independent switches for bottom large infrared heating plate, you can turn off the side heating plate when small pcb repairing, save energy and power.

5. 7" high definition touch screen interface, very easy to operate and learn.

6. With USB 2.0 interface, connected with mouse, future system update or download / store temperature heatign curve for analyse

DH-5830 Specification:

Total Power	4800W
Top heater	800W
Bottom heater	2nd 1200W, 3rd IR heater 2800W
Power	AC220V±10% 50Hz
Lighting	Taiwan led working light, any angle adjusted.
Operation mode	Drawer style HD touch screen, intelligent conversational interface, digital system setting
Storage	50000 groups
Top heater movement	Right/left, frontward/backward, rotate freely.
Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control	K sensor, close loop
Temp accuracy	±2℃
PCB size	Max 410×370 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	570610570mm
Net weight	33KG
