Dinghua DH-390 Multi-function Bga Soldering Machine AC Repair Tools

Name: Dinghua DH-390 Multi-function Bga Soldering Machine AC Repair Tools
Brand: DINGHUA BGA Rework station
SKU: 120891909

US$ 1 - 1,300 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA BGA Rework station

Model Number:

DH-390

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DINGHUA BGA Rework station

Model Number DH-390

Voltage AC220V±10% 50/60Hz

Current 20A

Rated Capacity 4350W/4800W

Rated Duty Cycle 100%

Dimensions 560*530*590mm

Weight 32KG

Usage bga soldering machine AC repair tools

Certification CE ISO 9001 20008

After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua DH-390 Multi-function bga soldering machine AC repair tools

DH-390 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

DH-390 Specification:

Total Power	4800W / 4350W
Top heater	800W
Bottom heater	2nd 1200W, 3rd IR heater 2700W
Digital Iron power	80W
Power	AC220V±10% 50Hz

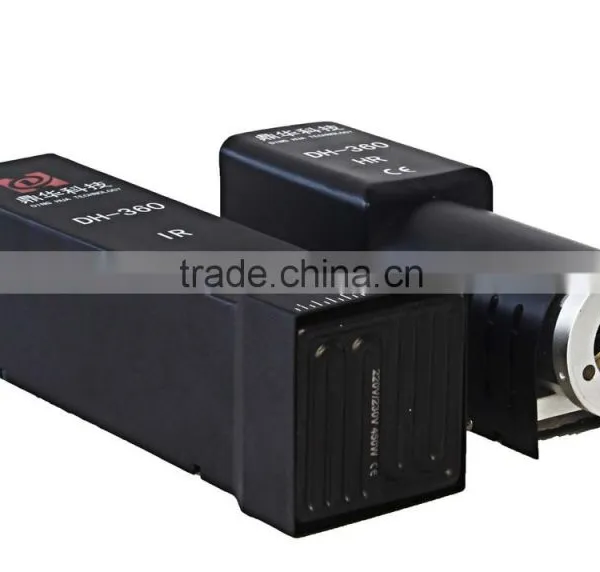

Top head	Two top heads: hot air and infrared, easy replacement.
Top hot air speed	Can be adjusted by adjusting knob, prevent tiny bga from movement when heating.
Cleaning tin	With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize
Top heater movement	Right/left, frontward/backward, rotate freely.
Lighting	Double shadowless LED lights, any angle adjusted freely
Operation mode	Digital panel meter
Storage	10 groups of temperature profiles.
Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control	K sensor, close loop
Temp accuracy	±2℃
PCB size	Max 390×370 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	L560×W490×H580 mm
Net weight	32KG
