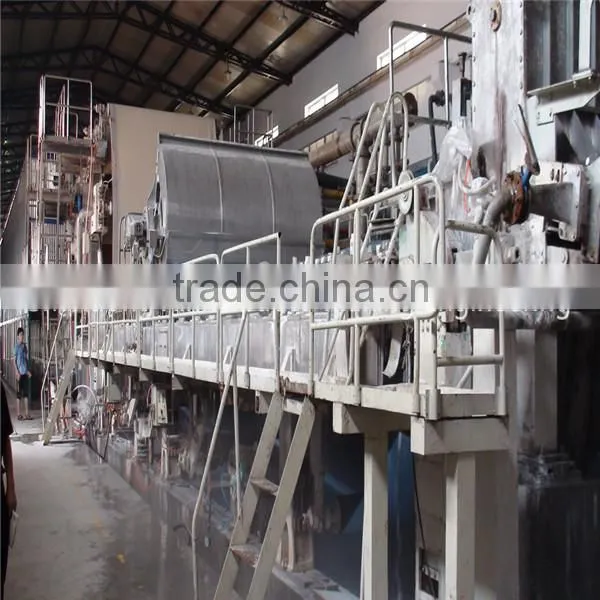

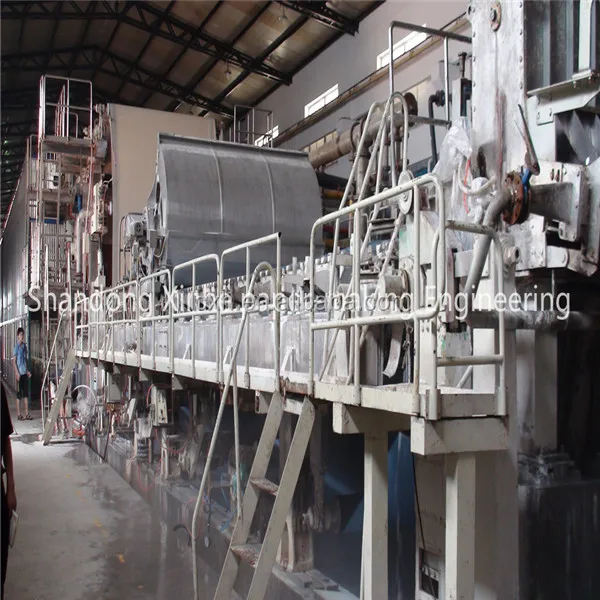

4300/350 two-side offset paper making machine
This paper machine is apply to produce 45-80gsm electrostatic copy paper, offset book paper, two-side offset paper etc high grade culture printing paper and recycle newspaper etc.
Process flow: pulp from fan pump through pipeline and flow into pyramid header, three- level step diffuser, rectifier roll for rectifying, jetting onto the fourdrinier by lip board, firstly dewatering on the forming board, then through dewatering board and wet suction box for continuous dewatering, to achieve the 6% dryness, then go into pulp roller, under the function of gravity of pulp roller to finish paper web, then under the high negative pressure function of high vacuum suction box and vacuum couch roll for high efficiency dewatering, after the series dewatering processing, the vacuum suction transfer will peeling off the wet paper web from the couch roll and go into four roll dual-nip zone for pressing, after flat press and smoothing pressing, then into dry section for drying, then go through sizing machine, drying, calendar to reel machine.
This paper machine can be divided into right hand and left hand type, single layer.
Paper product: electrostatic copy paper, offset book paper, two-side offset paper etc high grade culture printing paper and recycle newspaper etc
Basis weight: 45-80gsm
Trim width: 4300mm
Reel width: 4360mm
Wire width: 4950mm
Lip width: 4800mm
Working speed: 350m/min
Drive speed: 400m/min
Crawl speed: 25m/min
Dynamic balance:500m/min
Gauge: 5800mm
Drive way: AC frequency converter sectional drive
Main drive power: to be confirmed
Nominal capacity: 150t/d (80gsm, 350m/min, 22.5h, 97%, 95% efficiency)
Arrangement: single layer
Dimension: 77840*10000*6000mm (L*W*H) (excluding assorted equipment)
Max. weight of single piece: 13t (excluding assorted equipment)
Shandong Xinhe Paper -Making Engineering Co.,Ltd.was founded on May 18th ,1999.Approved by China Securities Regulatory Commission(CSRC).Shandong Xinhe was listed as a public company at Beijing National Equities Exchange and Quotations(NEEQ) in November 2014.Shandong Xinhe is a professional paper machinery company which focuses on the research,manufacturing,installation and testing of various paper machines and services.Since the company was founded has supplied many paper mills in china and other countries with 56 tissue production lines,39 printing paper production lines,61packaging board production lines and 11 special paper production lines.Shandong Xinhe has an excellent reputation among its customers.Xinhe endeavors to sincerely serve its customers that trust Xinhe.
We supply:
2600-5600mm,500-1500m/min,Crescent Former Tissue Machines;
1575-5600mm.150-250m/min,Economy Cylinder Tissue Machines;
1575-5600mm,200-600m/min,Fourdrinier Tissue and Paper Tower Machine
1575-6800mm,150-1000m/min,various Printing Paper Machines;
1575-6800mm,120-800m/min,various Packaging Board Machines;
Φ2500-Φ5600mm,various steel Yankee dryers and cylinder coatings and grinding projects.
1) The quality control in our factory is very strict.
2) We take strong attention to every detail in the manufacturing process.
3) All the machine must be checked out ,then deivered to our customer.
4) Assembly parts were assembled well in the workshop the frame was delivered by a whole.
Packing
three months after receiving prepayment
Delivery
wooden case, suitable for long sea delivery
