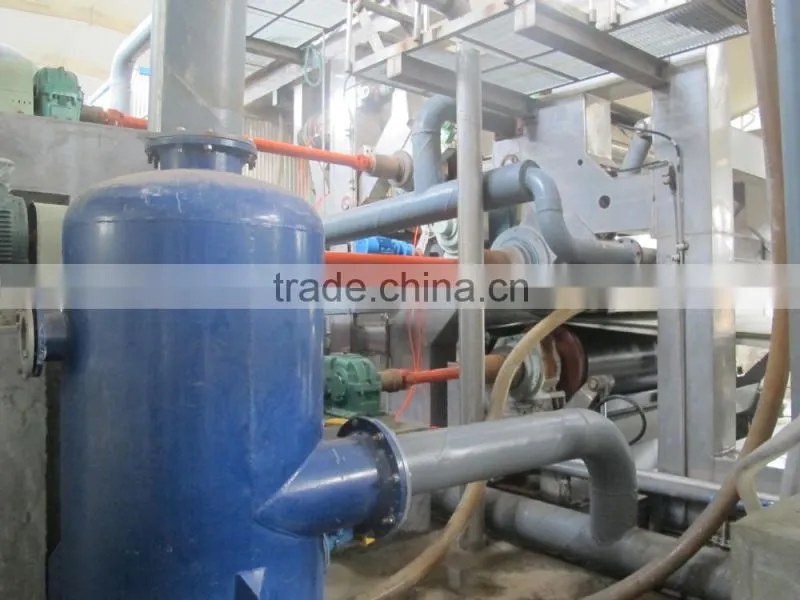

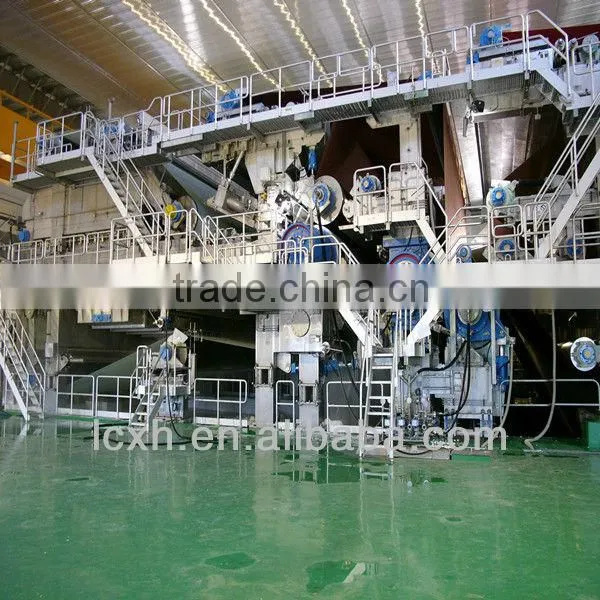

High Quality 3650/300 CPM Four-wire Multi-cylinder coating paper making machine
- 6 Set / Sets per Month
- Qingdao or Tianjin
- T/T
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Type: | Other, coating paper making machine | Computerized: | Yes |
Place of Origin: | Shandong, China | Brand Name: | Xinhe | Model Number: | 3650/300 CPM |
Voltage: | 220V;380V | Dimension(L*W*H): | according to each type | Weight: | up to each model |
Certification: | ISO9001 | Warranty: | 18 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality 3650/300 CPM four on top tampella and multi-cylinder coating paper making machine
Paper machine technical parameters
¤ Products: coated folding board
¤ GSM range: 180 ~ 450 g/m2 (the main quantitative 180 g/m2)
¤ Trim width: 3650 mm
¤ Roll width: 3700 mm
¤ Wire Width: 4100 mm
¤ Headbox lip width: 3950 mm
¤ Working speed: 300 m/min
¤ Driving speed: 350 m/min
¤ Crawling speed: 25 m/min
¤ Dynamic balancing speed: 500 m/min
¤ Rail distance: network department dry department 4800 mm
Press press of 4950 mm
¤ Driving type: AC frequency control
¤ Capacity: 250 T/D
All packaging is used wood box or wood pallet which are convenient for bumpy marine transportation.
We will dispatch our technician engineer to yourfactory to install the machine. The warranty is 12 months after the machine begins to produce the products or 18 months after we delivery the machine.
We also supply turkey service.
In March 16, 2012, Shandong Xinhe Paper-making Engineering Co., Ltd. and Italy Comer S.p.A had signed an international cooperation agreement. Our company contracts for projects within the cooperation area and is responsible for sales, manufacturing, installation and after-sales service of paper-making machine. Italy Comer S.p.A is responsible for the technical supervision and guiding the project commissioning of the equipment.
Italy Comer S.p.A was founded in Italy in 1960, long-term committed to mechanical groundwood pulp, waste paper deinking line and high-speed toilet paper machine’s design and production. It has been put into a number of high-speed toilet paper production lines in Saudi Arabia, Brazil and the United States. Machines’ speed is both higher than 1200m / min. The products’ softness is high and tons of paper consumption is low. The company has first-class design team, advanced turning, welding and other processing equipment and research laboratory on researching pulp and pulp flow.
