3100/220 Fourdrinier Multi-Cylinder Kraft Paper Machine
1.Technical Parameters:
Product: Line board paper,High strength kraft paper
Basis Weight:60-220g/sqm(main basis weight:120g/sqm)
Trim Width:3100mm
Reel Width:3150mm
Wire Width:3650mm
Lip Width of Headbox:3500mm
Working Speed:220m/min
Drive Speed:250m/min
Crawl Speed:25m/min
Dynamic Balance Speed:400m/min
Gauge:4350mm
Drive Way:AC frequency conversion control division transmission
Nominal Capacity:100t/d(calculate according to 120g/sqm,220m/min,22.5h,95-97% efficiency)
Arrangement:Single-layer
Dimension:92800*10800*7500(L*W*H)
2.Main Equipment List
| No. | Equipment | Description |
| 1 | Open type headbox | bottom wire and top wire,each 1 set |
| 2 | Twin-wire section | bottom wire length is 19m,height is 2.4m;top wire length is 7m,height is 5.2m |
| 3 | Press section | Including suction press,suction transfer,two sets of dual-felt jumbo roll blind hole press,total three nips |
| 4 | Dry section | Total 38 pcs dryer cylinders(include 2 pcs chromed cylinder),arrangement:8+8+10+sizing machine+6+6,cylinder diameter is 1500mm |
| 5 | Hood | Steel skeleton semi open type aluminum alloy hood |
| 6 | Dual-roll calender | 1 set,composed of bottom roll,top roll.frame,scraper,pressing device etc |
| 7 | Sizing machine | 1 set |
| 8 | Horizontal drum reel machine | 1 set,composed of reel drum,primary arm,secondary arm,scraper,reducer,motor,roll device etc |
| 9 | Mechnical drive section | Main drive total power:1015kw |
| 10 | Foundation section | From headbox to reel machine |
| Control System | ||
| 1 | Hydraulic control system | Composed of hydraulic unit,pipeline,oil cylinder and control unit etc,total 4 sets |
| 2 | Compressed air system | Composed of console,oil pipeline,executive component etc,total 1 set |
| 3 | Central lubricating system | |
| 4 | Drive electrical control | Including main drive control and auxiliary drive control |
2. Finished Paper Machinery
3. Turn-key Projects and Auxiliary Systems
We can integrate the Tissue Machine with a very deep experience in stock preparation supplying projects on the Turn-Key basis.
The Auxiliary systems that could be included in the projects are:
- Slitter Rewinder
- Approach Flow System
- Steam and Condensate System
- Vacuum System
- Compressed Air System
- Overhead Cranes
- Electrical Control
- DCS and QCS
- Fiber Recovery System
- Water Treatment System
- Chemical Dosing System
Stock Preparation including:
- Deinking Line
- OCC Line
- Virgin Pulp Line
-
Broke Line
4. Company Information
XINHE is a China based leading project engineering company committed to provide project design, complete equipment lines, machine rebuild solutions and turn-key projects for the Pulp and Paper industry worldwide.
Thanks to the capability of our engineers to handle a project from the design to the erection and commissioning
of the machines and equipments, XINHE became one of the few companies of this sector in China able to provide turn-key projects.
Headquartered in Nanning China, XINHE has one engineering office and two manufacturing sites located in different cities of China.
Kraft paper/Corrugated paper/Cardboard paper making machine
Main Technical Data
| Specs | KPM02 | KPM03 | KPM04 | KPM05 |
| Trimmed Paper Width | Up to 5600 | Up to 5600 | Up to 5600 | Up to 5600 |
| Design Speed(m/min) | 300 | 400 | 500 | 600 |
| Gross Weight(t/d) | up to 280 | up to 390 | up to 500 | up to 610 |
| Dryer Cylinder Diameter(mm) | 1500 | 1500 | 1500 | 1800 |
| Headbox | Pressurized | Pressurized | Pressurized | Pressurized |
| No. of Layers | 2,3,4 | 2,3,4 | 2,3,4 | 2,3,4 |
| Calender (2-rolls) | Hard/Soft Nip | Hard/Soft Nip | Hard/Soft Nip | Hard/Soft Nip |
| Pope Reel | Manual reel change | Manual reel change | Manual reel change | Manual reel change |
| Furnish | OCC,MCC,white cuttings,LBKP,UKP etc | OCC,MCC,white cuttings,LBKP,UKP etc | OCC,MCC,white cuttings,LBKP,UKP etc | OCC,MCC,white cuttings,LBKP,UKP etc |

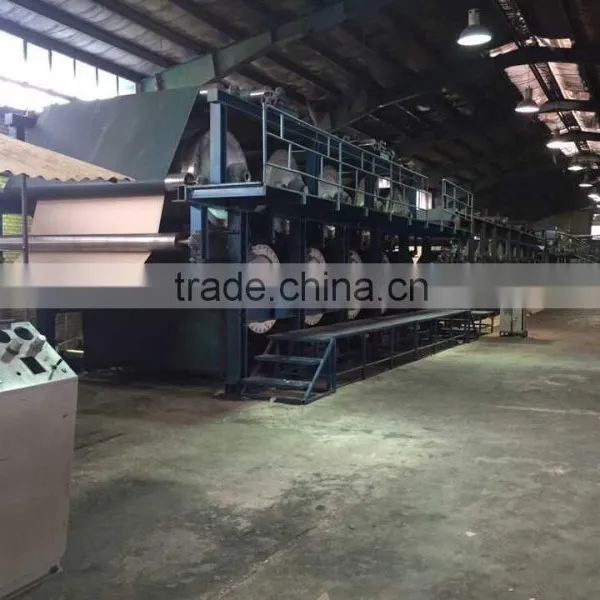

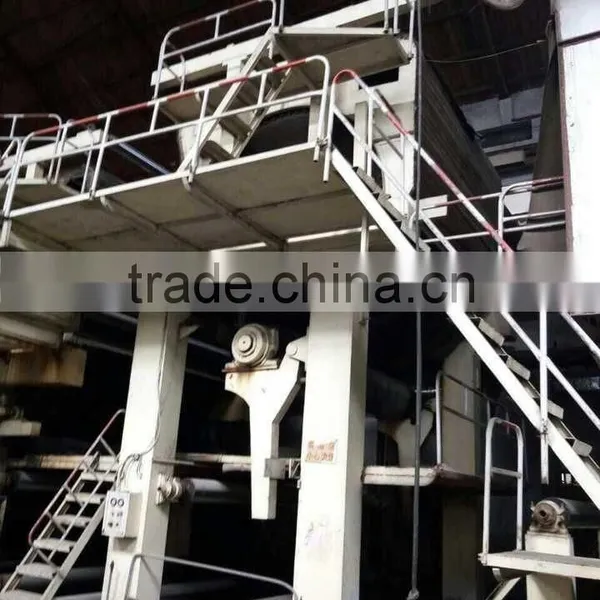

Pictures of KPM machine:
