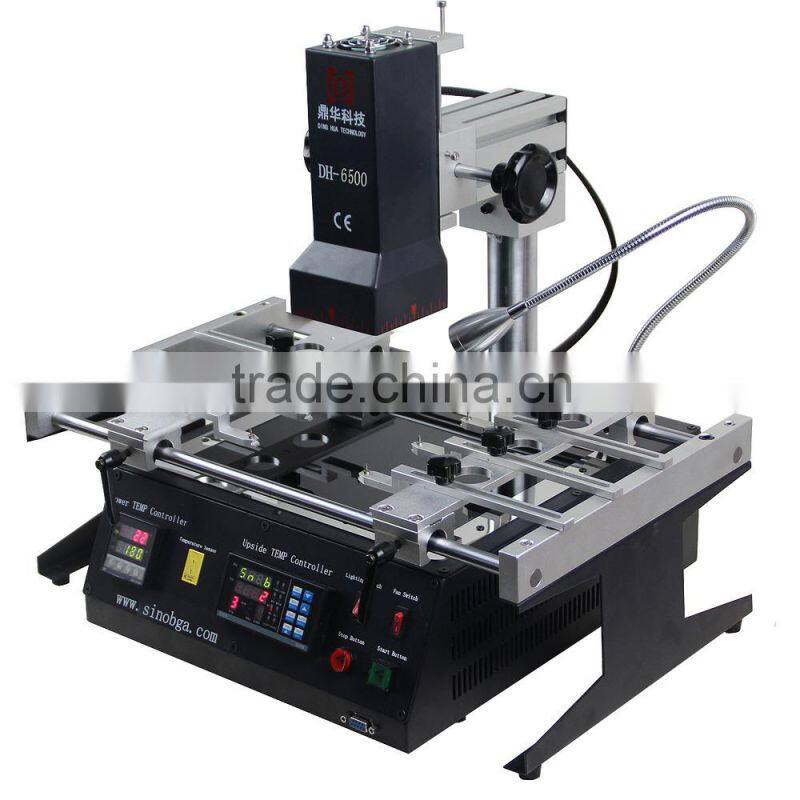

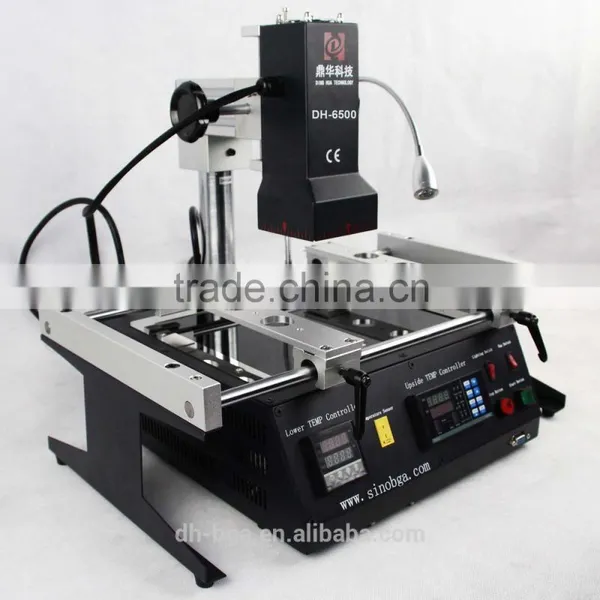

Dinghua high success laptop repair machine bga rework station,bga welding equipment DH-6500
Our product:
1. BGA welding equipment 2.good quality,cheap price;
3.3 year warranty; 4.CE ISO9001 passed.
Features of DH-6500:

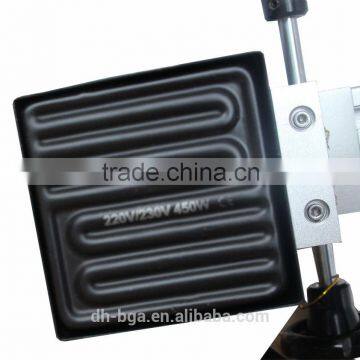

1.Adopt two-zone design: top infrared heating, bottom ceramic infrared pre-heating zone.
2.Two independent high precise digital panel meter controllers, can store 10 groups of temperature profiles. 8 segments (up/down) + 8 segments constant temperatures in one group.
3.High precise K-type thermocouple close-loop control + automatic temperature compensation system to enable precise temperature deviation on ±2℃.

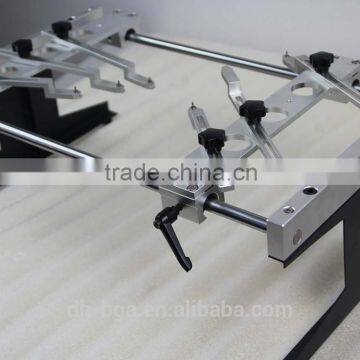

4.V-groove PCB table + universal fixture suitable for all kinds of PCB repairing, rapid, convenient and accurate positioning.
5.External Temperature Sensor, detect actual temperature of pcb and bga, adjust and correct temperature conveniently.
6.With powerful cooling fan, fast cooling for pcb and machine after heating.
7.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time.
8.Double protection: Overheating guard + emergency stop function.

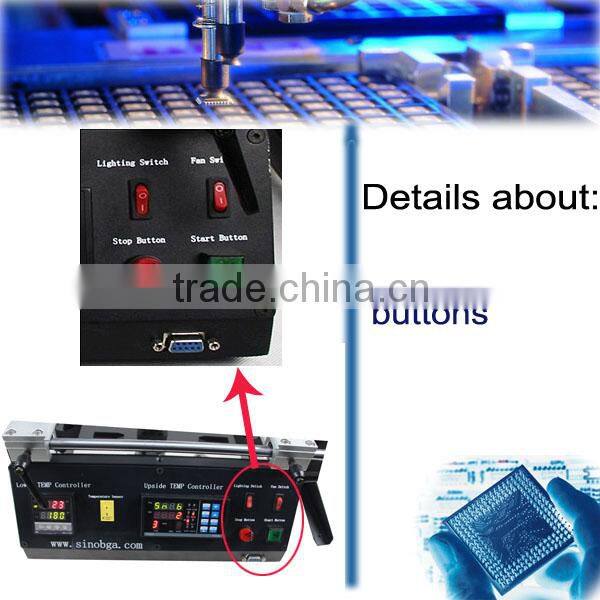

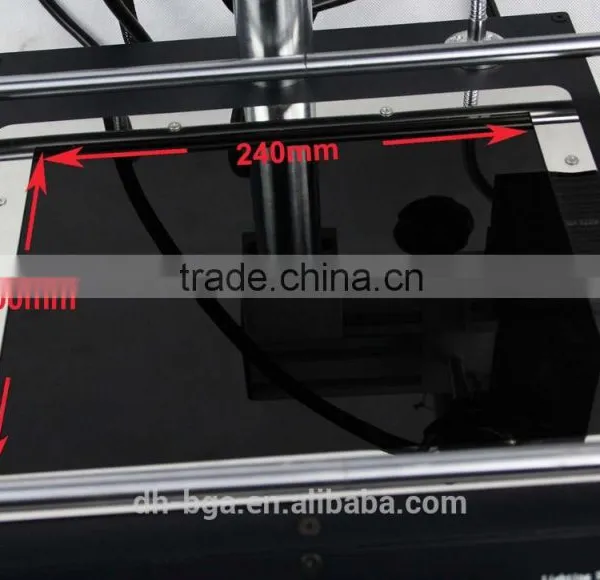

Detail pictures

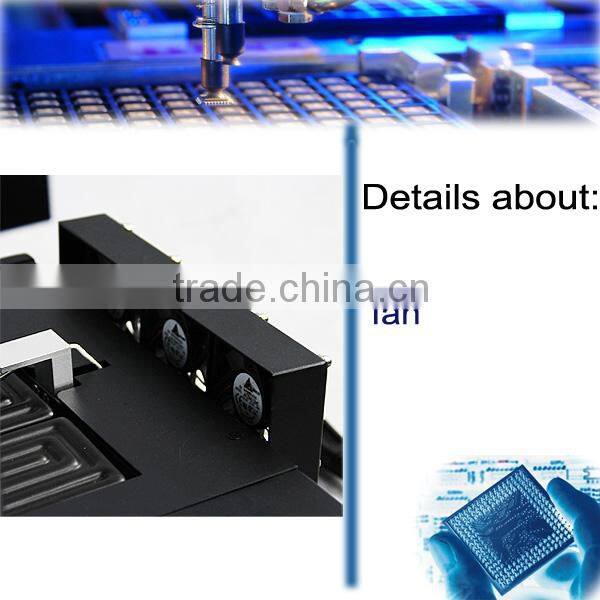

Cross-flow fan make the machine cooling fast, slow down the aging speed

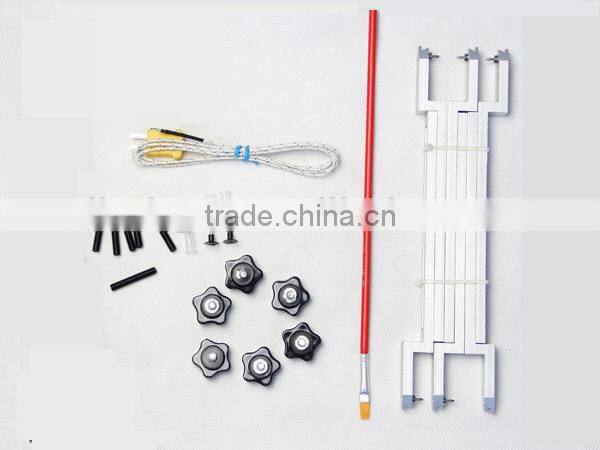

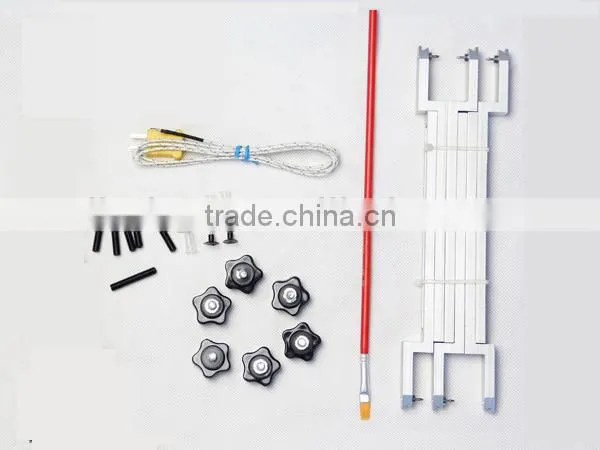

Accessories
Our factory
Specification
Total Power |
2300W |
Top heater |
450W |
Bottom heater |
1800W |
Power |
AC220V±10% 50/60Hz |
Top head movement |
Up / down, rotate freely. |
Lighting |

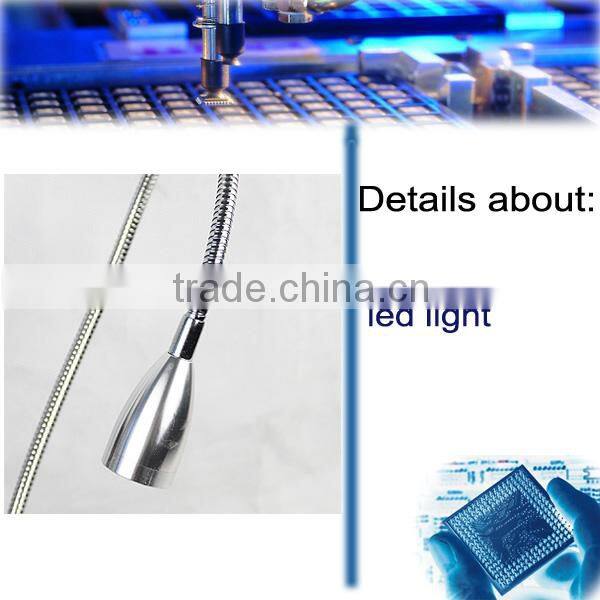

Taiwan led working light, any angle adjusted. |
Storage |
Store 10 groups of temperature profile |
Positioning |
V-groove, PCB support can be adjusted in X, Y direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 270mm*320mm Min20mm*20mm |
BGA chip |
5*5~55*55 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L480×W370×H390 mm |
Net weight |
Approx 15.5KG |
Our service
Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
:
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Warranty
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
ISO9001 and CE Certificate
Our company:
Shenzhen DingHua Technology Development Co., Ltd., is a professional manufacturer specializing in developing various BGA rework stations and accessories around it.
Our and our customers
The produt video link:
DH-6500: /watch?v=V3lOsiUkXuY
Thank you for your time!
