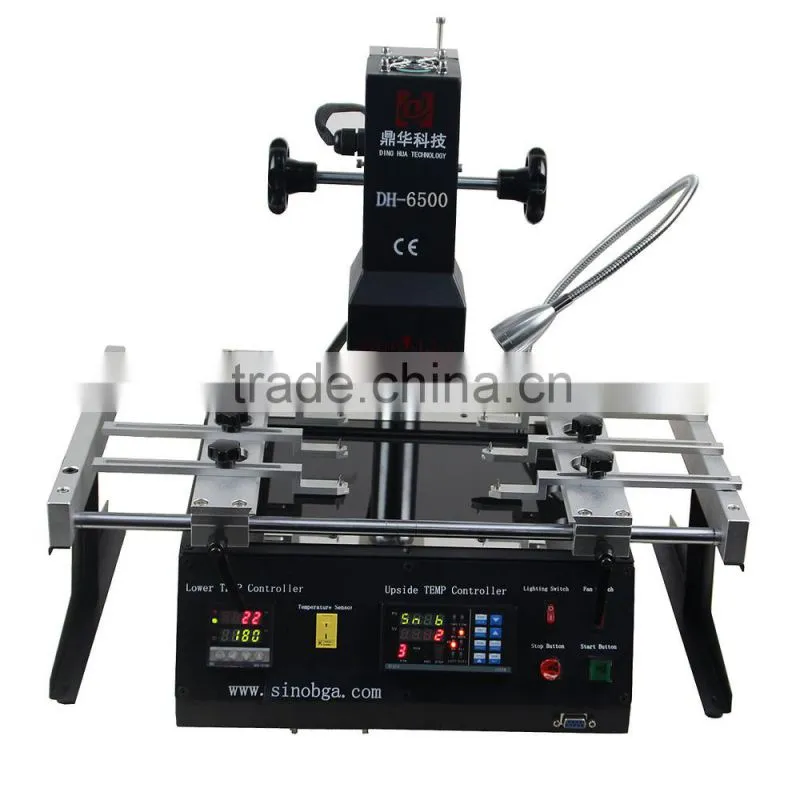

DH-6500 Infrared Used Bga Rework Station for Repair Laptop, Mobile Phone, Pcs3, Desktop Motherboard
US$ 400 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-6500
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dinghua DH-6500 Notebook/mobile Chip Remove and Replace Infrared Bga Rework StationUS$ 300 - 500MOQ: 1 Set -
DINGHUA DH-A01R Infrared Infrared Bga Welding Station/ Equipment/ Machine/ ToolUS$ 400 - 500MOQ: 1 Piece
-
DINGHUA DH-A01R Infrared Pcb Bga Soldering Desoldering Equipment/ Station/ Machine/ ToolUS$ 400 - 500MOQ: 1 Piece
-
DINGHUA DH-A01R Infrared Bga Soldering Desoldering Equipment/ Machine/ Tool/ StationUS$ 400 - 500MOQ: 1 Piece
-
DINGHUA DH-A01R Infrared Soldering Desoldering Equipment for Laptop Motherboard RepairUS$ 400 - 500MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
DINGHUA
Model Number
DH-6500
Voltage
AC220V±10% / 110V 50/60Hz
Current
10A
Rated Capacity
2300W
Rated Duty Cycle
100%
Dimensions
L480*W370*H390 mm
Weight
Approx 15.5KG
Usage
BGA chip soldering and rework station for motherboard, repair tool
Certification
CE ISO 9001 2008 ROHS
After-sales Service Provided
Engineers available to service machinery overseas
DH-6500 infrared used bga rework station for repair laptop, mobile phone, pcs3, desktop motherboard
| Detail pictures: |
|
Specification: |
- Total Power: 2300W
- Top heater: 450W
- Bottom heater: 1800W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 270x320mm Min 20x20mm
- BGA chip size: 5*5~55*55mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 480x370x390mm
- Net weight: Approx 15.5KG
| Special feature: |
- Imported heater, high quality, durable.

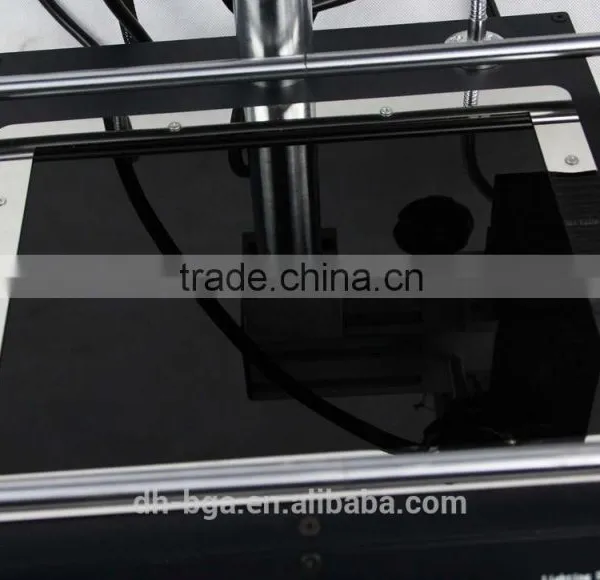

- Taiwan infrared pre-heating ceramic plate, glass guard.
- Adopt two heating zone, upper heater is infrared heating, lower heater is infrared preheat zone.
- K type close loop control, the temperature accuracy will be on ±2°C

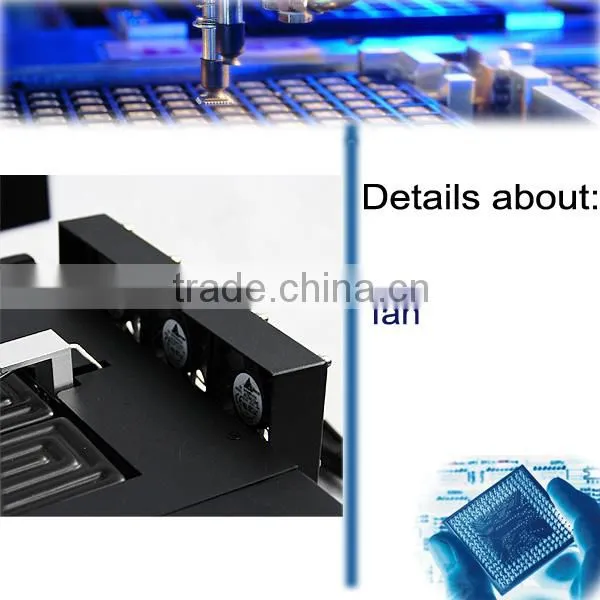

- High power cross flow cooling fan, prevent the PCB from deformation.
- Sound hint system: there is voice reminder 5s-10s before the completion of heating,to get the operator prepared
- security measure: overheat guard and emergency stop function
| Humanized design: |
- Upper heater can move up/down, rotate freely

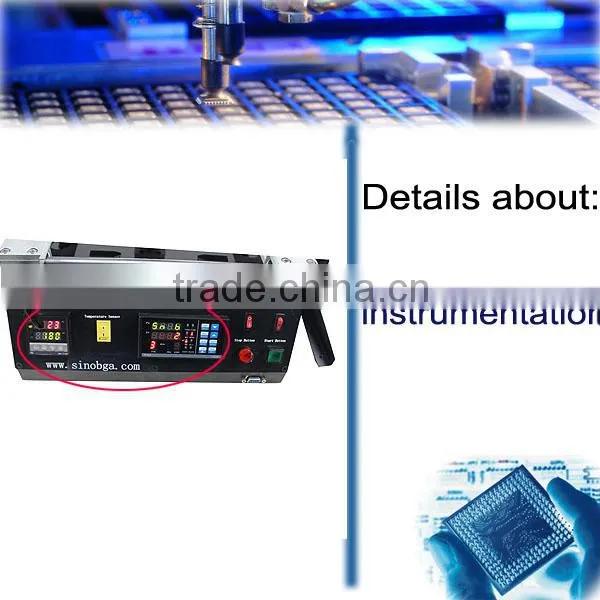

- Strong sense of thermometer, temperature measurement more accurate
- PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
- It can set 8 segments heating, and store 10 groups temperature profile
- Taiwan led working light.

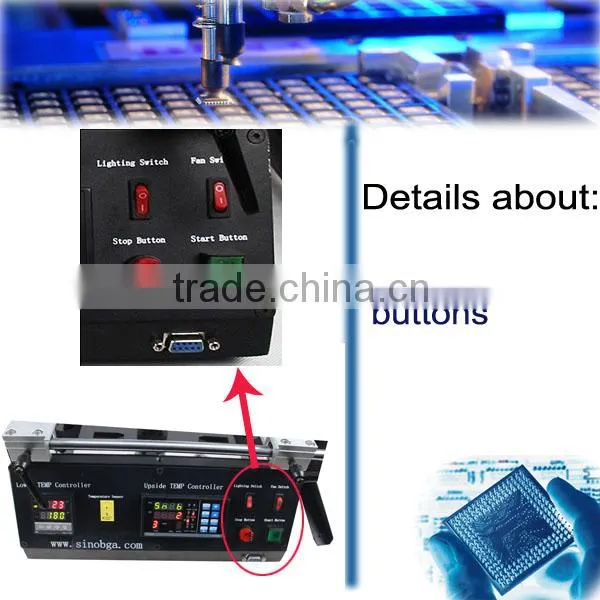

- Colorful buttons in English and Chinese, easy recognize and use
- CE certification, with emergency switch and automatic power-off protection device when emergency happens
| Application: |
Suitable for all kinds of BGA repairing (CCGA,BGA,QFN, CSP,LGA,Micro SMD,MLF...)
Lead and Lead-free.
| Packing: |
:
| Our Services: |
Customization: We provide OEM services.
Warranty: 1 year for the whole machine and 3 years for the heating wire.
Oversea engineer available to service machinery overseas
| Certification: |
| About our: |
The video link:
DH-6500: /watch?v=V3lOsiUkXuY
