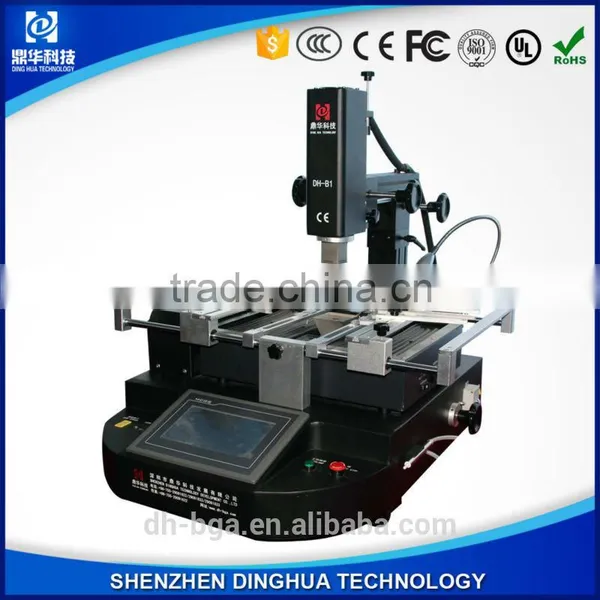

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1

Name: Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1
Brand: DINGHUA
SKU: 120884495
Availability: InStock

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-1

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-2

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-3

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-4

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-5

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 thumbnail-6

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-1

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-2

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-3

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-4

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-5

Dinghua BGA Rework Station Repair Pcb Main Borads DH-B1 photo-6

US$ 1099.00 - 1249.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA

Model Number:

DH-B1

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DINGHUA

Model Number DH-B1

Voltage 220V

Current 20A

Rated Capacity 4800W

Rated Duty Cycle 100%

Dimensions L650*W680*H600mm

Weight 45KG

Usage MotherboardXbox360/cell-phones BGA chip reworking

Certification CE ISO 9001 20008

After-sales Service Provided Engineers available to service machinery overseas

Dinghua BGA rework station repair pcb main borads DH-B1

Power	4800W
Top heater	Hot air 800W
Bottom heater	Hot air 1200W, Infrared 2800W
Power supply	AC220V±10% 50/60Hz
Dimension	650680600mm
Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
Temperature control	K type thermocouple, closed loop control, independent heating
Temp accuracy	±2 degrees
PCB size	Max 500400 mm Min 2222 mm
BGA chip	22-8080mm
Minimum chip spacing	0.15mm
External Temperature Sensor	1(optional)
Net weight	45kg

DH-B1 BGA rework station main features

The upper heater: hot air reflow heater,make the chip heated evenly.

The bottom heater and infrared heater can heat the back of PCB,prevent the PCB from deformation.

All of them can set 8 segments heating ,cooling and constant temperature parameters, store 10 groups of temperature parameters.

DH-B1 More details display

1.The high definition touch screen in order to operate intuitively and the vacumme pen can suck chips quickly

2. Offering different size nozzels with movable pcb table choosing for diffeerent size chips

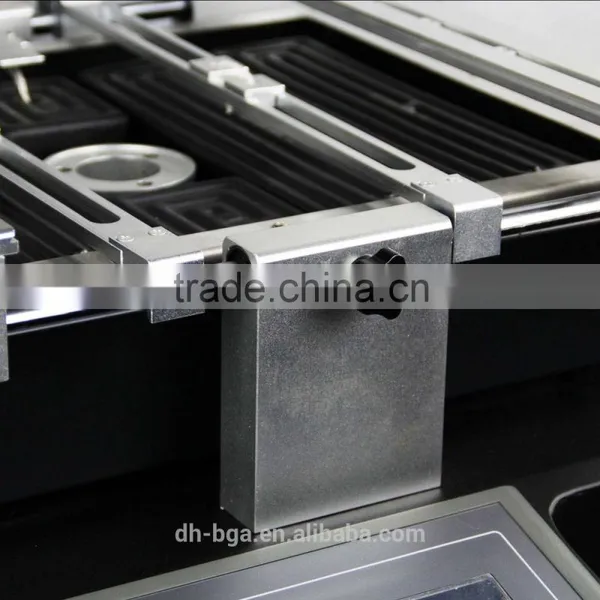

3. Offering free six universal fixturers made of aluminum material, which are suited for all types of PCB .

DH-B1 with simple and intuitively screen display

How to get the accurate temperature is the most importent aspect for reparing BGA chip

As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms,that's why our machine is more accurate.

Hot air nozzles

Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

Cooling system

Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.

Spare parts

Sound hint system.There is an alarm before the completion of each desoldering and soldering.

Packing

All of our machine will packed carefully with standard plywooden box, to protect it from transport.

Certificate

CE certification, with emergency switch and automatic power-off protection device when emergency happen

Company profile

Chips below can be repaired

This BGA rework station supply 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
