DINGHUA DH-A01R infrared + two heating zones bga rework station
Specification for DH-A01 BGA rework station
Total Power |
2600W |

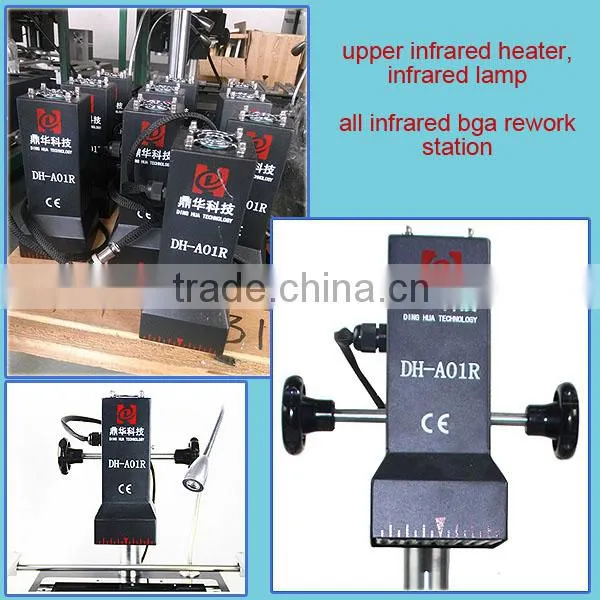

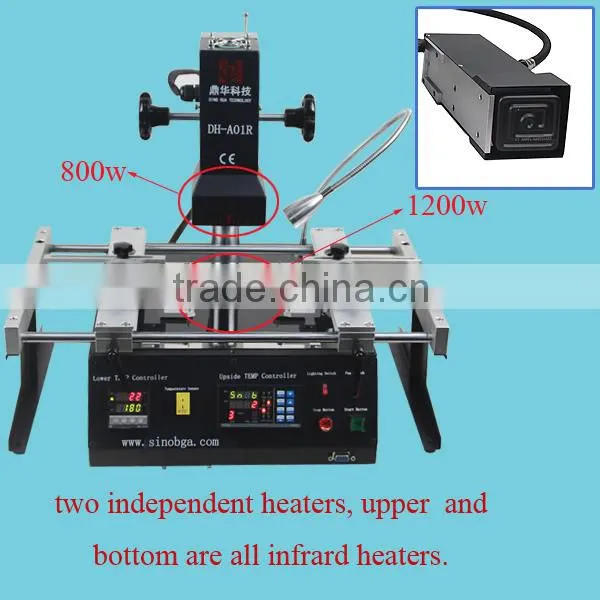

Top heater |
800W |
Bottom heater |
1800W |
Power |
AC220V±10% 50/60Hz |
Top head movement |
Up / down, rotate freely |
Lighting |

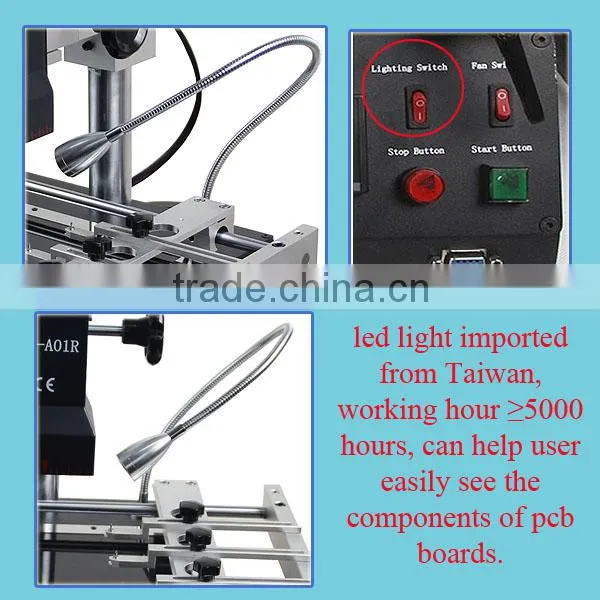

Taiwan led working light, any angle adjusted. |
Storage |
Store 10 groups of temperature profiles |
Positioning |
V-groove, PCB support can be adjusted in X, Y direction with external universal fixture |

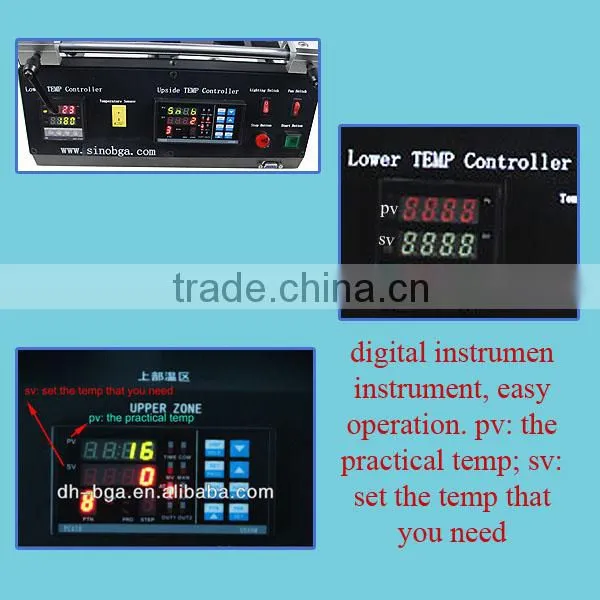

Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 290mm*310mm Min 20mm*20mm |
BGA chip |
5*5~55*55 mm |
Minimum chip spacing |
0.15mm |
Dimensions |
L470×W370×H500 mm |
Net weight |
Approx 15KG |

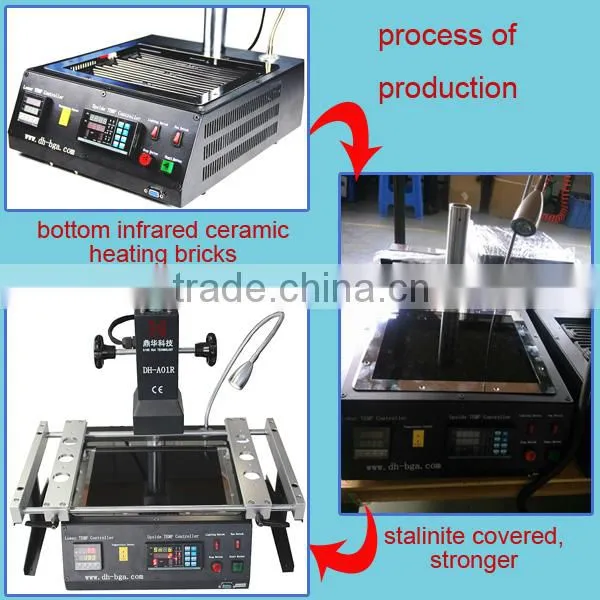

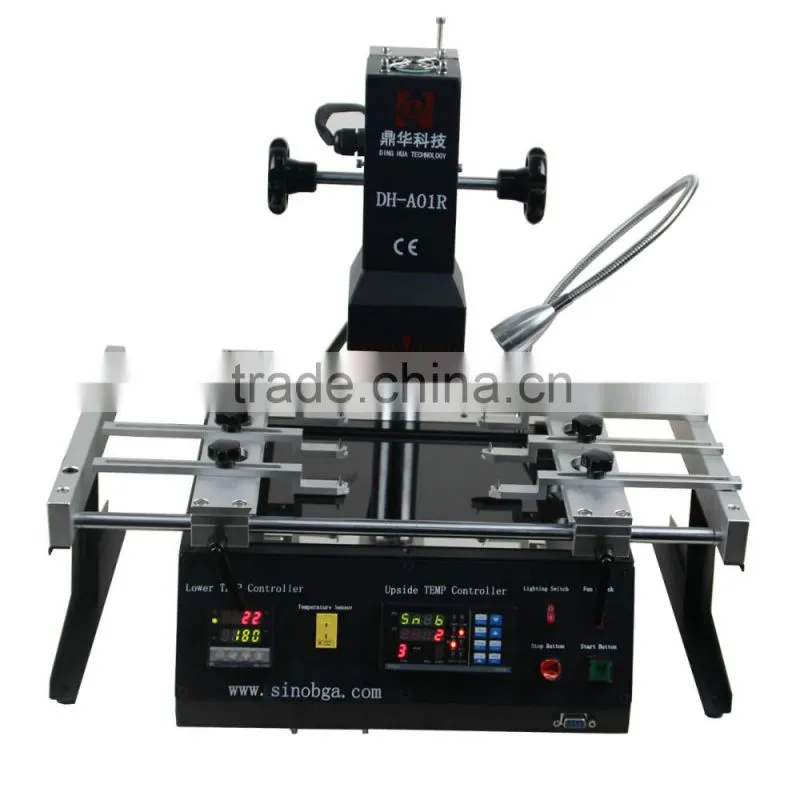

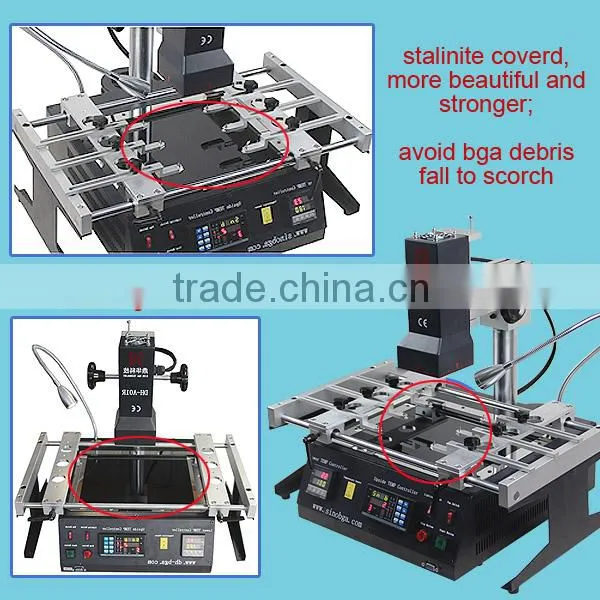

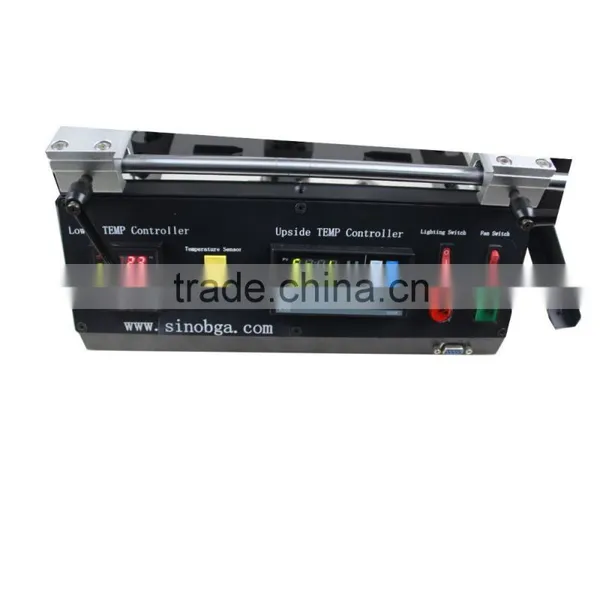

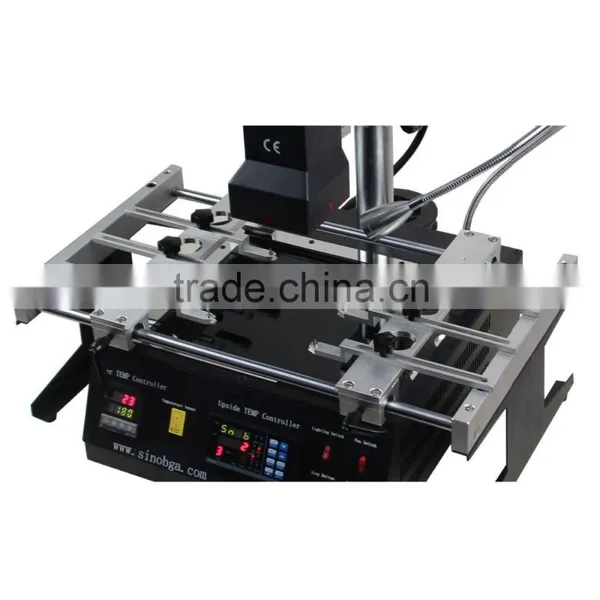

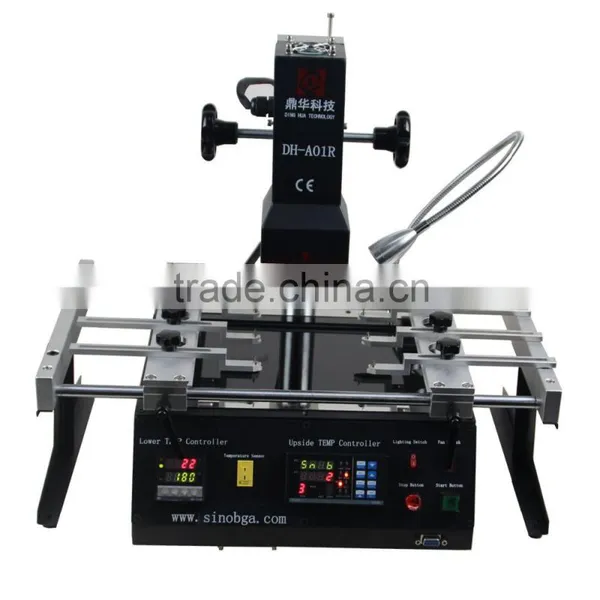

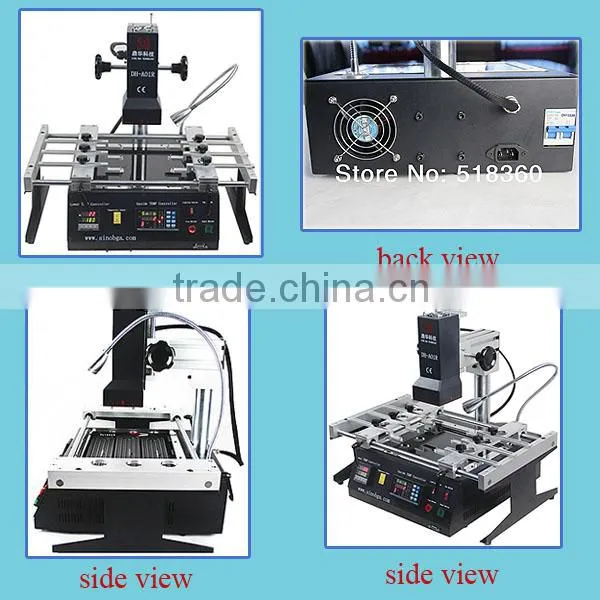

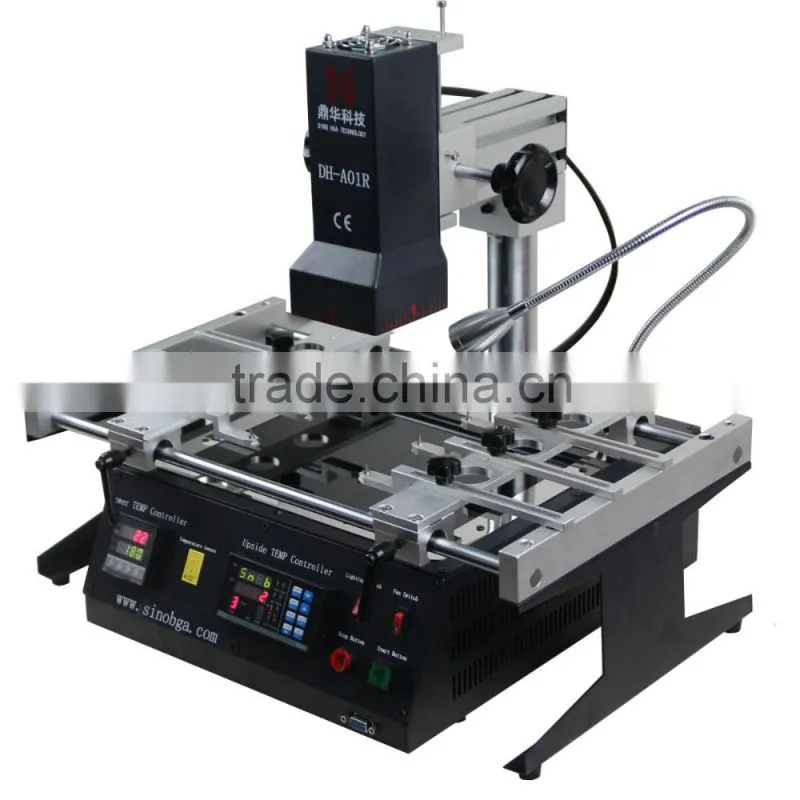

Pictures for DH-A01 BGA rework station
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
1. Your inquiry related to our products or prices will be replied within 24hours.
2. R*D team can meet all your special requests.
3. Customized can be OK.
4. Delivery on time.
5. Offer premium after-sales service. offering installation and use guidance.
6. Welcome to visit our factory, we can arrange the pick up and hotel.
Company profile
Our customer
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guidance that show you how to use machine. Very easy to use it.D
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5) You are a trade company or a manufacturer?
We are a manufacture, with our own skilled R&D department.
6) If i want to visit your factory, will you arrange the pick up and hotel?
Of course, we can arrange everything! only 20 minutes reach Shenzhen airport.
why choose us?
1. We are specialized in BGA rework station,automatic soldring robot, automatic screw locking machine ect more than 6 years,
2. Cooperating with HUAWEI, GREE, SAMSUNG, LG etc well-known brand company.
3. Manufacturer with skilled-engineers.
4. The core components, with premium quality materials, imported from Japan and Germany.
5. Offer high quality before and after-sales service.
6. Delivery on time for decent order.
7. 3 years warranty, the first years for free warranty, the second and third year receive the parts of cost.
8. With CE, ROHS, UL certification approved
1. Before delivery, the machine will be aging test for 3 days.
2. 3 years warranty. The first year free warranty, the second and third year receive the parts of cost.
3. 3 years warranty for the hearting wire.
